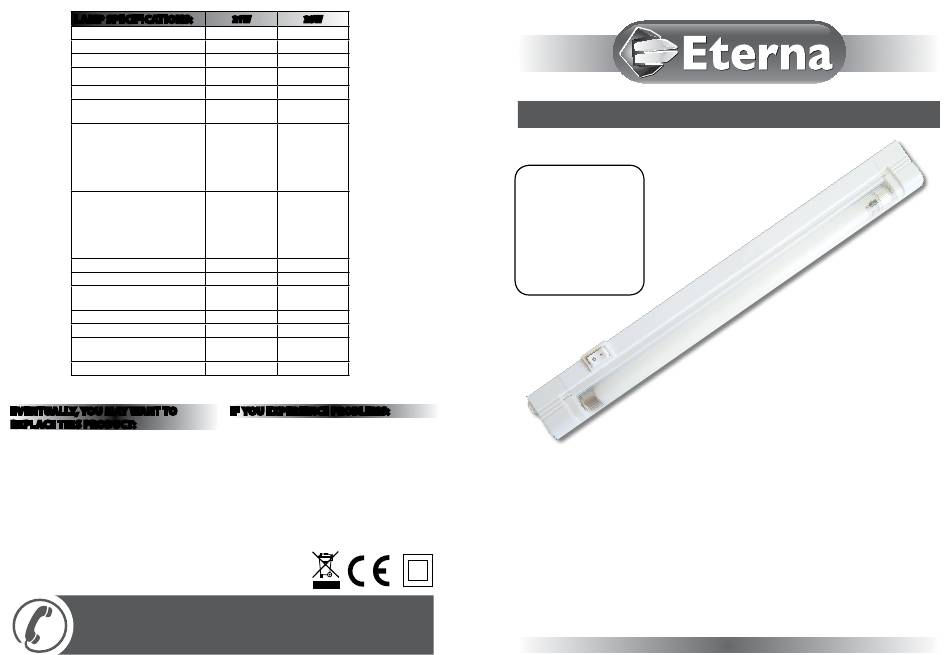

Eterna AC44180 Installation Instructions

A guide for qualified electricians, t5 linkable fluorescent fitting

Advertisement

Quick Links

LAmP SPECIFICATIONS:
nominal Wattage
Rated Wattage
Average lifetime hours
nominal useful luminous flux
Rated luminous flux
luminous efficacy (lm/W) in hf
operation
Rated lamp lumen maintenance
in hf operation
Rated survival factors in hf
operation
lamp dimensions (mm)
cap type
lamp Mercury content to an
accuracy of 0.1mg
colour rendering index Ra
colour temperature
Ambient temperature required to
achieve maximum luminous flux
Dimmable
EvENTUALLy, yOU mAy WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WhEn yoUR PRoDUcT coMEs To ThE EnD of
ITs lIfE oR yoU choosE To REPlAcE IT, PlEAsE
REcyclE IT WhERE fAcIlITIEs ExIsT - Do noT
DIsPosE WITh hoUsEholD WAsTE.
Issue 2013
FOR PRODUCT ADvICE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
21W
28W
21W
28W
20.6W
27.9W
24,000 hrs
24,000 hrs
1890 lm 2604 lm
1890 lm
2604 lm
90
93
2000hrs: 95%
2000hrs: 95%
4000 hrs: 92%
4000 hrs: 92%
6000 hrs: 90%
6000 hrs: 90%
8000 hrs: 90%
8000 hrs: 90%
12000 hrs: 90%
12000 hrs: 90%
16000 hrs: 90%
16000 hrs: 90%
2000hrs: 99%
2000hrs: 99%
4000 hrs: 97%
4000 hrs: 97%
6000 hrs: 92%
6000 hrs: 92%
8000 hrs: 92%
8000 hrs: 92%
12000 hrs: 90%
12000 hrs: 90%
16000 hrs: 90%
16000 hrs: 90%
850mm
1150mm
G5
G5
≤2.7mg
≤2.7mg
≥80
≥80
3500K
3500K
25°c
25°c
no
no
IF yOU ExPERIENCE PROBLEmS:
If you believe your product is defective, please return
it to the place where you bought it. our Technical
Team will gladly advise on any Eterna lighting
product, but may not be able to give specific
instructions regarding individual installations.
for breakage information visit:
www.eterna-lighting.co.uk
Visit our website:
www.eterna-lighting.co.uk
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Pack contents:
1 x Electronic fluorescent fitting
4 x fixing screws
1 x Butt connector
2 x "c" mounting clips
2 x "f" mounting clips
1 x 2M Mains lead
1 x 500mm link lead
Model:
LFT58WH / AC44180
LFT513WH / AC44181
LFT521WH / AC44182
LFT528WH / AC44183
T5 Linkable Fluorescent Fitting
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
