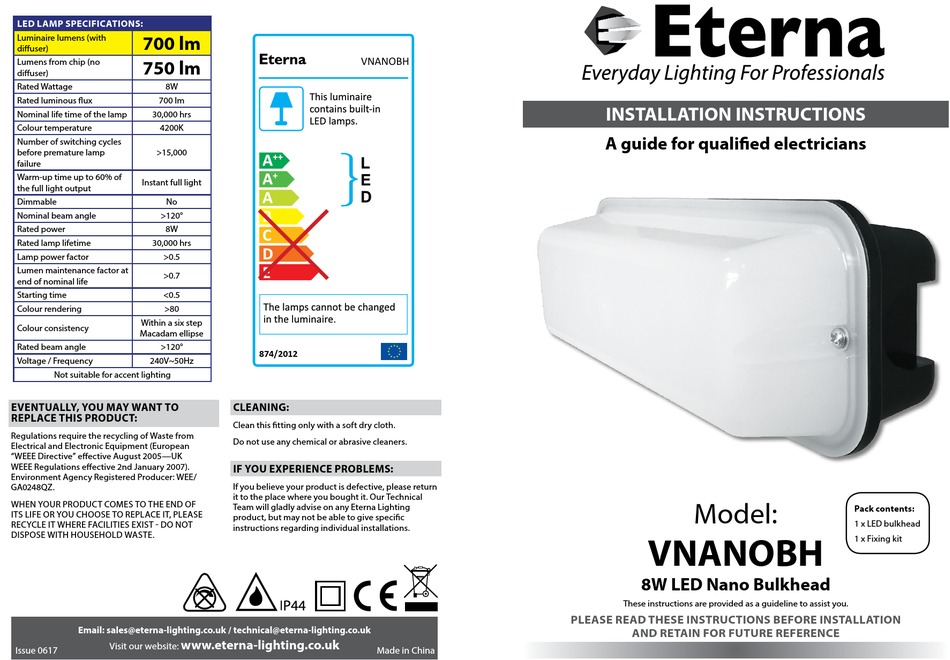

Eterna vnanobh Installation Instructions

LED LAMP SPECIFICATIONS:

700 lm
Luminaire lumens (with
diffuser)
750 lm
Lumens from chip (no
diffuser)
Rated Wattage 8W
Rated luminous flux 700 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 4200K
Number of switching cycles
before premature lamp >15,000
failure
Warm-up time up to 60% of
Instant full light
the full light output
Dimmable No
Nominal beam angle >120°
Rated power 8W
Rated lamp lifetime 30,000 hrs
Lamp power factor >0.5
Lumen maintenance factor at
>0.7
end of nominal life
Starting time <0.5
Colour rendering >80
Within a six step
Colour consistency
Macadam ellipse
Rated beam angle >120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 0617
MODELNO.
VNANOBH
874/2012

CLEANING:

Clean this fitting only with a soft dry cloth.
Do not use any chemical or abrasive cleaners.

IF YOU EXPERIENCE PROBLEMS:

If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Made in China
Installation INSTRUCTIONS
A guide for qualified electricians
Model:
VNANOBH
8W LED Nano Bulkhead
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x LED bulkhead
1 x Fixing kit
