of measured power level in dBm and/or Watts next to the "Current Reading" label. The frequency and
power offset settings of the YF2 unit will also be displayed next to their respective labels. To stop
reading, press the "STOP REPORTING" button. This will resume the steady label Power Report in
black background

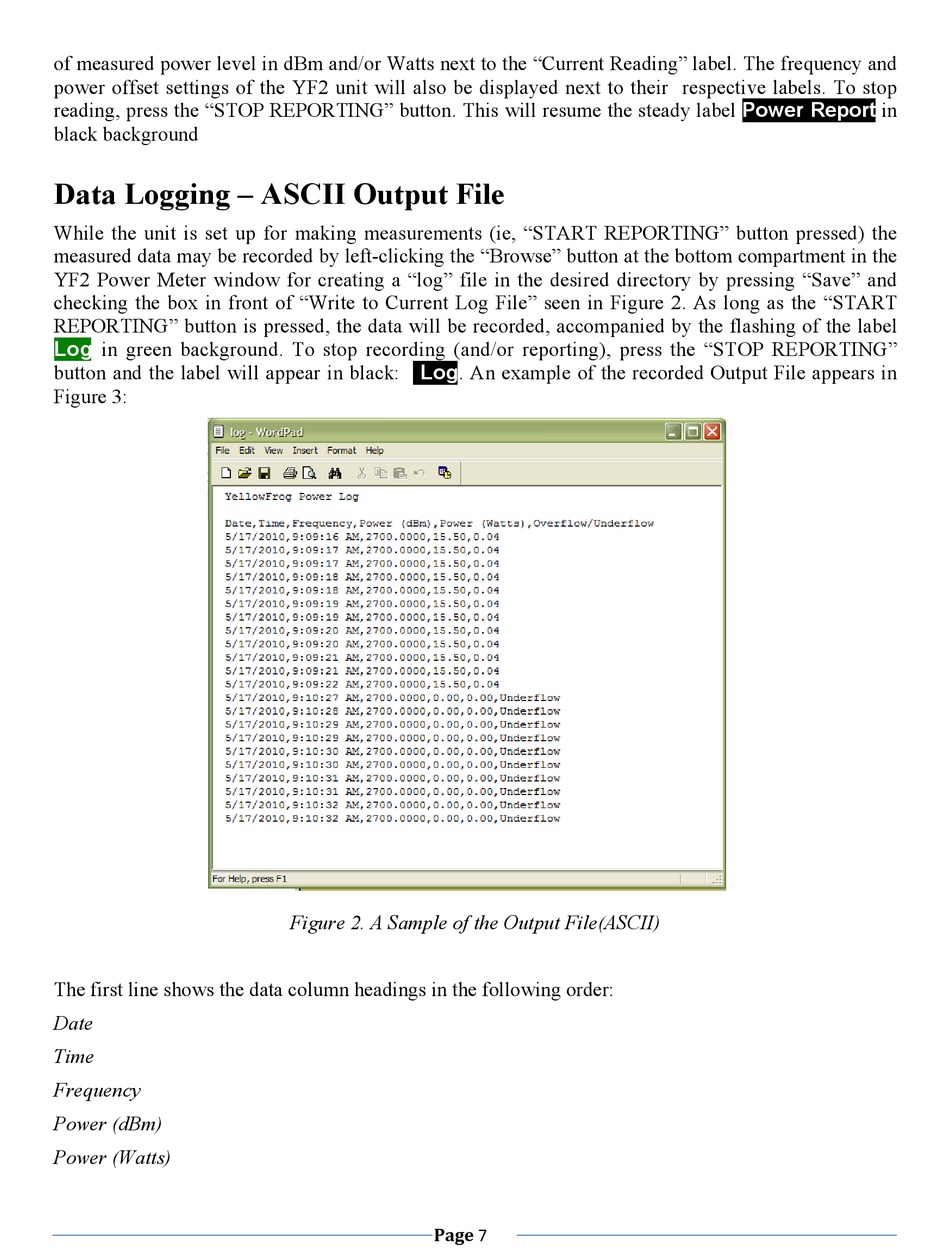

Data Logging – ASCII Output File
While the unit is set up for making measurements (ie, "START REPORTING" button pressed) the
measured data may be recorded by left-clicking the "Browse" button at the bottom compartment in the
YF2 Power Meter window for creating a "log" file in the desired directory by pressing "Save" and
checking the box in front of "Write to Current Log File" seen in Figure 2. As long as the "START
REPORTING" button is pressed, the data will be recorded, accompanied by the flashing of the label
Log
in green background. To stop recording (and/or reporting), press the "STOP REPORTING"
button and the label will appear in black: Log. An example of the recorded Output File appears in
Figure 3:
Figure 2. A Sample of the Output File(ASCII)
The first line shows the data column headings in the following order:
Date
Time
Frequency
Power (dBm)
Power (Watts)
!"#$%'
