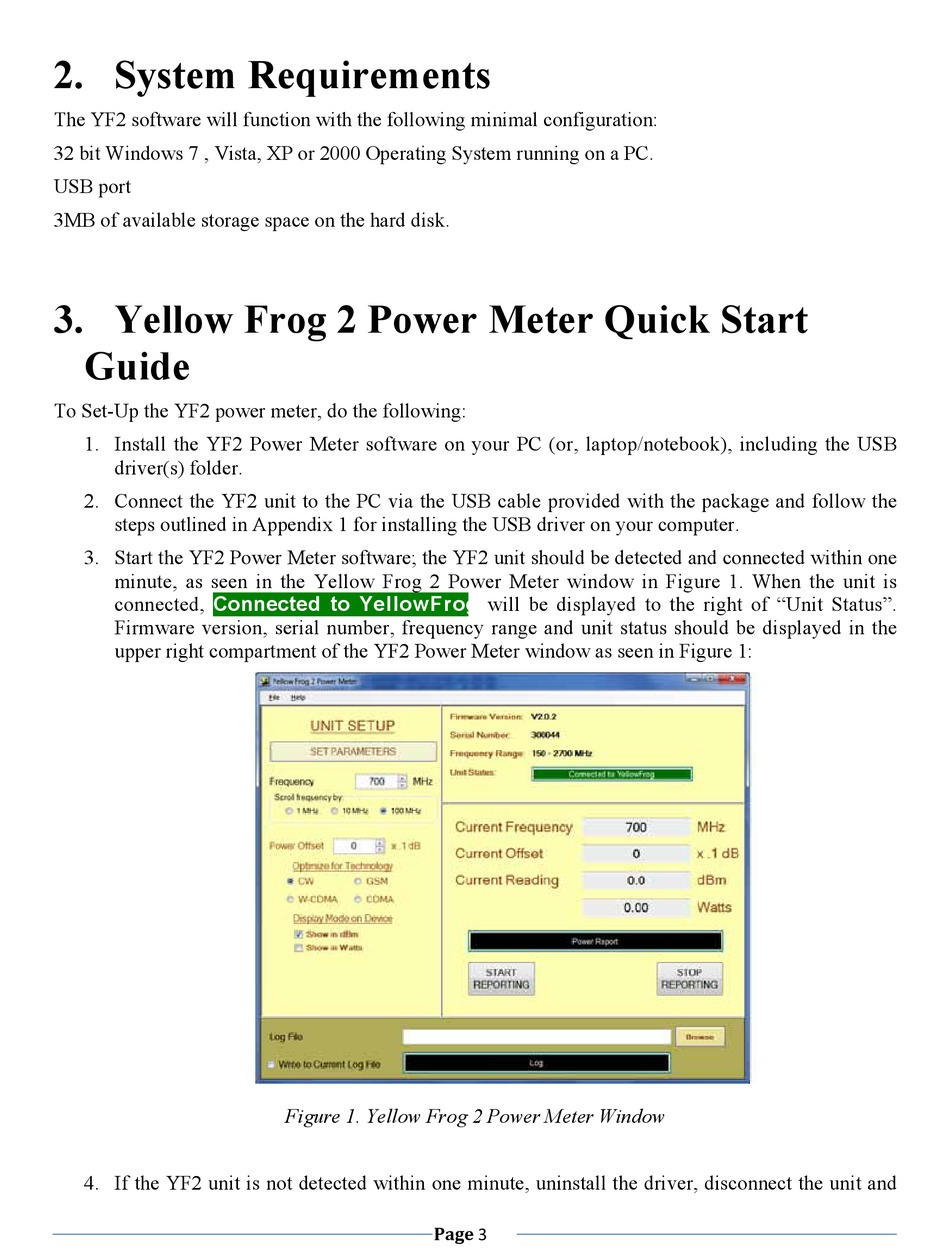

2. System Requirements

The YF2 software will function with the following minimal configuration:
32 bit Windows 7 , Vista, XP or 2000 Operating System running on a PC.
USB port
3MB of available storage space on the hard disk.
3. Yellow Frog 2 Power Meter Quick Start
Guide
To Set-Up the YF2 power meter, do the following:
1. Install the YF2 Power Meter software on your PC (or, laptop/notebook), including the USB
driver(s) folder.
2. Connect the YF2 unit to the PC via the USB cable provided with the package and follow the
steps outlined in Appendix 1 for installing the USB driver on your computer.
3. Start the YF2 Power Meter software; the YF2 unit should be detected and connected within one
minute, as seen in the Yellow Frog 2 Power Meter window in Figure 1. When the unit is
connected, Connected to YellowFrog
Firmware version, serial number, frequency range and unit status should be displayed in the
upper right compartment of the YF2 Power Meter window as seen in Figure 1:
4. If the YF2 unit is not detected within one minute, uninstall the driver, disconnect the unit and
Figure 1. Yellow Frog 2 Power Meter Window
!"#$%#
will be displayed to the right of "Unit Status".
