RCA RCR314WE Owner's Manual

RCR314WE US 01 2597

Step 2: Program your remote

NOTES
Remember to enter the code for future reference in the box
provided in the Code Retrieval section of this manual.
To use this universal remote with your home entertainment
If your brand isn't listed in the code list, use one of the Code
system, first you need to program it to control your devices.
Search methods to program the remote control. (Refer to

Universal Remote Control

There are four ways you can program the universal remote to
the Auto and Manual Code Search methods.)
operate your devices. Try them in the order listed here:
Owner's Manual
If you release the device key any time during the Direct
• The Direct Code Entry lets you enter a code from the
Code Entry procedure, the
RCR314WE / RCR313BE
accompanying code list for your brand of device.
and the process is exited. The last programmed code under
Manual del Propietario (parte posterior) The Brand Code Search searches through the codes for the device key is retained.
•
select brands of devices.
Test the remote with the device to make sure the device
• The Auto Code Search goes automatically through all the key is programmed with the correct code for maximum
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject codes for the device you're trying to control. functionality. If some features don't work, try a different code
to the following two conditions: (1) This device may not cause harmful
in the list.
interference, and (2) this device must accept any interference received,
• The Manual Code Search lets you manually go through all
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits the codes for the device you're trying to control.
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses

Brand Code Search

and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio

Direct Code Entry

The Brand Code Search goes through only the codes for one of
communications. However, there is no guarantee that interference will
the select brands listed in the accompanying code list. If your
not occur in a particular installation. If this equipment does cause harmful
Direct Code Entry lets you enter a code from the
interference to radio or television reception, which can be determined by brand of device is listed, this search can be very quick and easy.
turning the equipment off and on, the user is encouraged to try to correct accompanying code list for your brand of device.
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver. TIP: Each device key is associated with a type of device—the TIPS: Each device key is associated with a type of device—the
• Connect the equipment into an outlet on a circuit different from that to TV is preset to search for TVs, SAT•CBL•STREAM for satellite
TV is preset to search for TVs, SAT•CBL•STREAM for satellite
which the receiver is connected.
receivers, cable boxes, digital TV converters, or streaming
• Consult the dealer or an experienced radio/TV technician for help. receivers, cable boxes, digital TV converters, or streaming
Caution: Any Changes or modifications not expressly approved by the party media players, and DVD•VCR for VCRs or DVD players. media players and DVD•VCR for VCRs or DVD players.
responsible for compliance could void the user's authority to operate this
equipment. The POWER key serves as an indicator light during
The POWER key serves as an indicator light during
programming, giving you feedback at each stage of the programming, giving you feedback at each stage of the
Industry Canada Regulatory Information
process. process.
CAN ICES-3 (B)/NMB-3 (B)
Avis d'Industrie Canada
CAN ICES-3 (B)/NMB-3 (B) To exit without saving a new code at any point in the Brand
1. Code Search, press the
Manually turn on the device you
want to control.
SAVE THIS MANUAL AND THE CODE LISTS!
Remote controls can sometimes lose their programming when you 1.
change the batteries. Make sure you keep the manual and code lists Manually turn on the device you
in a safe place so that you can reprogram the remote if you need to.
want to control.
2.

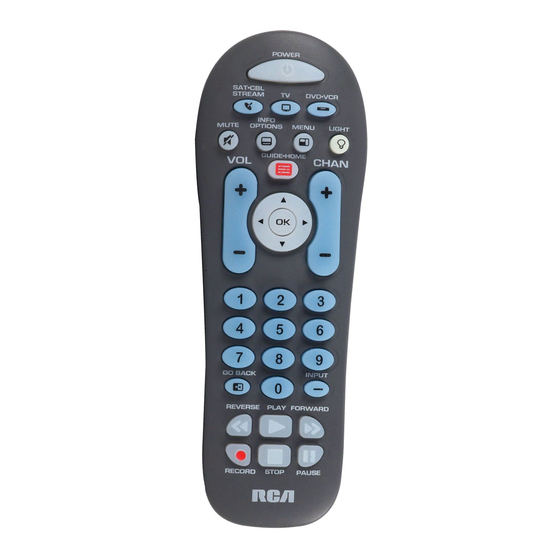

Congratulations on your purchase of this 3-device RCA Universal Find the Code List that came with
Remote Control. This remote features a library of codes with the
the remote. Locate the section for
latest devices of all major brands, with support for streaming 2.
the type of device you're trying to If you're programming the TV or
media players as well. The navigation keys have been redesigned
program, and find your brand in that go to step 3.
to function seamlessly with the more sophisticated menu and
guide systems found in today's home entertainment devices. section. Circle the codes for your
If you're programming the
brand and keep them handy.
tell the remote which kind of device you want this key to
control, VCR or DVD.

Step 1: Install your batteries

3.
Press and hold the device key you want to program (the
Press and hold the
POWER key comes on).
down the DVD•VCR
number key for the type of device you want to control
Your universal remote requires two AA alkaline batteries While you're holding down the device key, use your other
(batteries may or may not be included, depending on model). with this key: 2 for VCR, 3 for DVD.
hand enter the first five-digit code for your brand in the
To install the batteries: code list (the POWER key goes off after the first digit).
1. Remove the battery compartment
cover.
2. Insert the batteries, matching the
batteries to the (+) and (–) marks
inside the battery compartment.
3. Push the battery cover back into
place.
Battery Precautions:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium) batteries.
• Always remove old, weak or worn-out batteries promptly
and recycle or dispose of them in accordance with Local and
National Regulations.
4. 3.
When you've finished entering the five-digit code, keep Find your device's brand in the
Battery Saver
holding down the device key and look at the POWER key. Brand Code list section of the
Your universal remote control saves battery power by
accompanying code list. Circle the
Is the POWER key on?
automatically turning off if any key is pressed for more than
number for your brand and keep
60 seconds. This saves your battery life should your remote YES: You're done! You've programmed this device key.
get stuck in a place where the keys remain depressed, such as the list handy.
between sofa cushions. NO, it blinked four times and turned off: You have
either entered a code number that is not in the code lists
or missed a step in the code entry procedure. Try step 3
again.
4.
Press and hold the device key you want to program. While

Auto Code Search

you're holding down the device key, use your other hand
The Auto Code Search goes automatically through all the
to press and hold the remote's POWER key at the same
codes for the device you're trying to control. When you find
time.
the one that operates your device, you can stop the search
and store that code.
TIPS: Each device key is associated with a type of device—
the TV is preset to search for TVs, SAT•CBL•STREAM for
POWER key blinks four times,
satellite receivers, cable boxes, digital TV converters, or
streaming media players, and DVD•VCR for VCRs or DVD
players.
5.
Wait until the POWER key comes on and stays on. Then
To exit without saving a new code at any point in the Auto
release both keys.
Code Search, press the GO BACK key.
6.
1.
Look at the number you circled for your Manually turn on the device you
device's brand code number. Press that want to control.
number on the remote keypad.
2.
If you're programming the TV or SAT•CBL•STREAM
7.
Point the remote directly at the front
go to step 3.
panel of the device you want to
If you're programming the DVD•VCR key, you need to
control. Press POWER on the remote
tell the remote which kind of device you want this key to
and wait 2 seconds. The remote is
control, VCR or DVD.
testing a single code for your device's
brand.
Press and hold the DVD•VCR key. While you're holding
Did your device turn off? down the DVD•VCR key, use your other hand to press the
number key for the type of device you want to control
YES: Press the STOP key to store the code. You're done!
with this key: 2 for VCR, 3 for DVD.
You've programmed this device key.
NO: Press POWER again. The remote tests the next code
for your brand.
GO BACK key.
Keep pressing POWER every 2 seconds until your device
turns off. When it does, press STOP.
NOTES
Throughout the programming of each key, be sure to keep
the remote pointed at the IR sensor of the device you are
currently programming the remote to control.
SAT•CBL•STREAM key,
Test the remote with the device to make sure the
device key is programmed with the correct code for
DVD•VCR key, you need to maximum functionality. If some features don't work, try a 3.
Press and hold the device key you want to program. While
different code. See the "Testing the Code for Maximum
you're holding down the device key, use your other hand
Functionality" section below for more information.
to press and hold the remote's POWER key at the same
During the Brand Code Search, the remote ignores time.
DVD•VCR key. While you're holding
keypresses that aren't part of the search.
key, use your other hand to press the
The search times out after two minutes (the POWER key
blinks four times and turns off, and the last programmed
code under that device key is retained).
The POWER key blinks four times and turns off when the
remote has gone through all the codes. The remote exits
the Brand Code Search. If your device hasn't turned off yet,
try a different search method.
4.
Wait until the POWER key comes on and stays on. Then
release both keys.

Testing the Code for Maximum Functionality

5.
1. Try a variety of the device's functions with the remote. If Point the remote directly at the
some device features don't work, go to the next step to front panel of the device you want
try a different code. to control. Press PLAY on the
remote and wait 5 seconds. The
2. Repeat the Brand Code Search from the beginning.
remote is testing a batch of 10
When the device turns off for the first time, don't press
codes on your device.
the STOP key, which would store the same code. Instead,
with the unit now off, continue to press the POWER key
repeatedly until the unit turns back on.
Did your device turn off?
3.
Once the unit turns back on, you have found another
YES: Go to step 6.
code that operates the device. Press the STOP key.
NO: Press PLAY again. The remote tests the next batch of
4. Test the key's functionality again by attempting to
10 codes.
control a variety of the device's functions. If the code
that has been stored controls the majority of the device's Keep pressing PLAY every 5 seconds until your device turns
functions, programming is complete. If the code stored off.
does not give maximum functionality, try another code.
6.
NOTES
When your device turns off, press The POWER key serves as an indicator light during
the REVERSE key on the remote programming, giving you feedback at each stage of the
Throughout the programming of each key, keep the remote
process.
and wait at least 2 seconds. The
pointed at the IR sensor of the device you are programming
remote tries the last of the previous The Manual Code Search method may take a long time the remote to control.
ten codes.
because the remote searches through all of the codes in its
Test the remote with the device to make sure the
memory one-by-one. If your brand is listed in the Brand Codes
Did your device turn on? device key is programmed with the correct code for
or the Code Lists, first try the Brand Code Search or the Direct
maximum functionality. If some features don't work, try a
YES: Press the STOP key. You're Code Entry method.
different code. See the "Testing the Code for Maximum
done! You've programmed this
To exit without saving a new code at any point in the Manual
Functionality" section below for more information.
device key.
Code Search, press the GO BACK key.
During the Manual Code Search, the remote ignores
NO: Press REVERSE again. The remote tests the next
keypresses that aren't part of the search.
code in the batch.
1.
Manually turn on the device you want The search times out after two minutes (the
Keep pressing REVERSE every 2 seconds until your device
to control. blinks four times and turns off, and the last programmed
turns back on. When it does, press STOP.
code under that device key is retained).
Note: If you accidentally press the REVERSE key after your
The
device turns on, press the FORWARD key. Then, wait two
remote has gone through all the codes. The remote exits
seconds to see if your device turns off again.
the Manual Code Search. If your device hasn't turned off
2.
If you're programming the TV or SAT•CBL•STREAM key,
yet, try a different search method.
go to step 3.
NOTES
key,
If you're programming the DVD•VCR key, you need to
Throughout the programming of each key, be sure to keep Testing the Code for Maximum Functionality
tell the remote which kind of device you want this key to
the remote pointed at the IR sensor of the device you are
control, VCR or DVD. 1. Try a variety of the device's functions with the remote. If
currently programming the remote to control.
some features of your devices don't work, go to the next
Press and hold the DVD•VCR key. While you're holding
step to try a different code.
Test the remote with the device to make sure the down the DVD•VCR key, use your other hand to press the
device key is programmed with the correct code for number key for the type of device you want to control 2. Repeat the Manual Code Search from the beginning.
maximum functionality. If some features don't work, try a
with this key: 2 for VCR, 3 for DVD. When the device turns off for the first time, don't press
different code. See the "Testing the Code for Maximum
the STOP key, which would store the same code. Instead,
Functionality" section below for more information.
with the unit now off, continue to press the POWER key
repeatedly until the unit turns back on.
During the Auto Code Search, the remote ignores
3. Once the unit turns back on, you have found another
keypresses that aren't part of the search.
code that operates the device. Press the STOP key.
The search times out after two minutes (the POWER key
4. Test the key's functionality again by trying a variety of
blinks four times and turns off, and the last programmed
functions. If the code controls the majority of the device's
code under that device key is retained).
functions, programming is complete. If the code stored
does not give maximum functionality, try another code.
The POWER key blinks four times and turns off when the
remote has gone through all the codes. The remote exits
the Auto Code Search. If your device hasn't turned off yet,

Tour of the Remote

try a different search method.
3.
Testing the Code for Maximum Functionality Press and hold the device key you want to program. While
In most cases, the keys on
you're holding down the device key, use your other hand to
1. Try a variety of the device's functions with the remote. If this remote perform the
press and hold the remote's POWER key at the same time.
some device features don't work, go to next step to try a same functions as the keys
different code. on your original remotes
once you've programmed
2. Repeat the Auto Code Search Method from the
this remote to operate your
beginning. When your device turns off, do not stop
components. Many keys
searching. Instead, with the unit now off, continue to
on this remote have other
press the PLAY key every 5 seconds until the unit turns
functions as well.
back on.
3. Once the unit turns back on, press the REVERSE key on Illuminated
serves as an indicator light
the remote every 2 seconds until your device turns off
4.
Wait until the POWER key comes on and stays on. Then to provide feedback.
again. When your device turns off again, press the STOP
release both keys.
key.
Device keys (TV,
4. Test the key's functionality again by attempting to 5.
SAT•CBL•STREAM,
Point the remote directly at the front panel of the device you
control a variety of the device's functions. If the code
DVD•VCR) put the remote
want to control. Press POWER on the remote and wait 2
that has been stored controls the majority of the device's
in the right mode to control
seconds. The remote is testing a single code for your device.
functions, programming is complete. If the code stored
your device.
does not give maximum functionality, try another code.
Did your device turn off? LIGHT
backlighting on/off.
YES: Press the STOP key to store
the code. You're done! You've
GUIDE/HOME and MENU

Manual Code Search

programmed this device key.
access the same features
The Manual Code Search lets you go one-by-one through all the as the keys on your original
NO: Press POWER again. The
codes for the device you're trying to control. When you find the remotes.
remote tests the next code for your
one that operates your device, you can stop the search and store
device.
Arrow keys act as
that code.
navigation keys for
Keep pressing POWER every 2
streaming media players as
seconds until your device turns off.
TIPS: Each device key is associated with a type of device—the
well as in menu and guide
When it does, press STOP .
TV is preset to search for TVs, SAT•CBL•STREAM for satellite
systems for other devices.
receivers, cable boxes, digital TV converters, or streaming TIP: Because there are so many codes, you may have to
media players, and DVD•VCR for VCRs or DVD players.
press the POWER key many times—possibly hundreds of
times.
CHAN and VOL keys act as channel and volume controllers.
Note: All TV codes begin with the number 1; all VCR and
The CHAN keys also provide skip forward and skip back
DVR codes begin with the number 2; all DVDs, the number
control for DVD players and DVRs that support this
3; and all satellite receivers, cable boxes, streaming players,
functionality.
and DTV converters, the number 5.
5. Repeat step 4 until you have retrieved all five numbers in
GO BACK exits remote programming; it also performs the
the code. After the fifth number is retrieved, the
same functions as on your original remotes.
key blinks briefly, then turns off.
The INPUT and — (dash) key has three functions: (1) it toggles
TIP: To exit the Code Retrieval Mode at any time, press the
through all the video sources connected to your TV; (2) when
GO BACK key.
the remote is in VCR mode, this button toggles between VCR
Note: If you press an invalid key during the Code Retrieval
and the TV input; (3) when you're entering digital channel
process, the remote will not respond. If you do not press a
numbers directly, this button lets you separate the main
valid Code Retrieval key (TV, SAT•CBL•STREAM, DVD•VCR,
POWER key channel number from the sub-channel number (such as 59.1).
INFO-OPTIONS, GO BACK), Code Retrieval times out after
15 seconds. The POWER
turns off.
POWER key blinks four times and turns off when the
IMPORTANT
TV CODE
Because this remote controls more than one device, you
must first "tell" the remote which device you wish to
1
operate. That means, if you wish to operate your TV, you
must first press the TV key to put the remote in the TV
Mode. The remote stays in that device mode until you
press a different device key. For example, if your remote is
in TV Mode and you want to operate the DVD player, you
must press the DVD•VCR key to change device modes. DVD•VCR CODE
Backlighting
Backlight illumination helps you see the remote control keys
better in the dark. You can turn backlight illumination on by
pressing the LIGHT key ( ). Backlighting stays on as long as

Troubleshooting

keys are being pressed and turns off five seconds after the last
keypress.
Problem: The remote does not operate your device.
• Make sure the remote is in the correct mode by pressing the
corresponding device key (TV, SAT•CBL•STREAM, DVD•VCR).
This tells the remote which device to operate.

Advanced Functions

• Remove any obstacles between the remote and the device.
Make sure you're aiming the remote at the device's IR sensor.

Code Retrieval

• Make sure the batteries are fresh and are properly installed.
Replace the batteries with two new AA batteries, if necessary
Once you've programmed the remote to control your devices,
(see the Battery Installation section).
you may want to record the codes for future reference. If
you used the Direct Code Entry method, this is easy. Just
Problem: The remote can't be programmed to operate
find the codes you entered and make a note of them in the
your device.
boxes below. If you used one of the Code Search methods to
• If you are testing the remote while programming it, you may be
program your remote or if you used the Direct Entry method
too far away from the device or at a wrong angle. There must
but don't remember the code, you will need to retrieve each
be an unobstructed path between the remote and the IR sensor
device's five-digit code. Retrieving the actual code and writing
on the device. Move closer and make sure you point the remote
it down will save you time if you ever need to program the
at the device you're trying to control.
remote again (e.g., if programming is lost when you change
• If you're using the Direct Entry programming method to enter
POWER the batteries). If the codes are recorded, you can use the
key
the codes for your brand and the unit is still not functioning
Direct Entry method to reprogram your remote to control your
properly, try the auto, brand, or manual search method.
devices, which is quick and easy.
• To control combo units, like TV/VCRs or TV/DVDs, you must
program the individual corresponding device keys to control
each part of the combo unit. Once programmed successfully,
POWER key the TV key controls the TV functions, and the
1. Press and hold the device
key (TV, SAT•CBL•STREAM, controls the VCR or DVD functions.
DVD•VCR) whose code you
• Make sure the batteries are fresh and are properly installed.
wish to retrieve. The POWER
key ( ) turns key turns on. Keep pressing Problem: The remote doesn't perform commands properly.
the device key.
• Make sure the remote is in the correct mode by pressing the
corresponding device key (TV, SAT•CBL•STREAM, DVD•VCR).
This tells the remote which device to operate.
2. While holding the device key down, press and hold the
• Make sure device is ready (for example, the DVD player has a
INFO-OPTIONS key. The POWER key turns off. After
disc loaded).
holding down both keys for three seconds, the POWER
key turns back on. • You may have pressed an invalid key for the mode the remote is in.
• If you're trying to enter a channel number directly, try pressing
3. Release both keys. The POWER key remains on.
the OK key after entering the channel number as this is a
4. Starting with the number 1 key, press and release each
requirement of certain models and brands.
number key on the keypad in the following order: 1-9,
then 0. The number that causes the POWER key to blink is
Actual model may vary from
the first number of the code. As you find each number of
illustration
the code, write it down for future reference.
Limited Lifetime Warranty
• There is a possibility that a programmed code may only be
able to control some of your device features (for example, only
turns a device on and off). To confirm that the device key is
programmed with the correct code for maximum functionality,
Voxx Accessories Corporation (the "Company") warrants to you the
test the device. Attempt to control a variety of the device's
original retail purchaser of this product that should it, under normal use
functions with the remote. If some of the features of your
POWER and conditions, be proven defective in material or workmanship during its
devices don't work, try programming the remote with a
lifetime while you own it, such defect(s) will be repaired or replaced (at the
different code in the list using the Direct Code Entry Method,
Company's option) without charge for parts and repair labor.
until you find the code that allows the remote to control the
To obtain repair or replacement within the terms of the warranty, the product
majority of your device's functions. Different codes can provide
is to be delivered with proof of warranty coverage (e.g. dated bill of sale),
different levels of functionality. specification of defect(s), transportation prepaid, to an approved warranty
station. For the location of the nearest warranty station to you, call toll-free to
Problem: The POWER key does not light when you press a our control office: 1-800-645-4994.
key. This Warranty does not cover product purchased, serviced or used outside
the United States or Canada. This Warranty is not transferable and does
• You may have pressed an invalid key for the mode the remote is
not extend to costs incurred for installation, removal or reinstallation of
key blinks four times, and then
in. the product. This Warranty does not apply if in the Company's opinion,
• Make sure the remote is in the correct mode by pressing the the product has been damaged through alteration, improper installation,
mishandling, misuse, neglect, accident, or the simultaneous use of different
corresponding device key (TV, SAT•CBL•STREAM, DVD•VCR).
battery types (e.g. alkaline, standard or rechargeable).
SAT•CBL•STREAM CODE This tells the remote which device to operate.
THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS
• Make sure the batteries are fresh and are properly installed. LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN
5 Replace the batteries with two new AA batteries, if necessary
NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE
(see the Battery Installation section). PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY
Problem: The remote will not change channels on device. IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
SAT CABLE DTV CONVERTER
STREAMING PLAYER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL
• Make sure the remote is in the correct mode by pressing the
BE LIMITED TO DURATION OF THIS WARRANTY. IN NO CASE SHALL
corresponding device key (TV, SAT•CBL•STREAM, DVD•VCR).
THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
This tells the remote which device to operate. DAMAGES WHATSOEVER. No person or representative is authorized
• Press the OK key after you enter a channel number. to assume for the Company any liability other than expressed herein in
connection with the sale of this product.
• Remove any obstacles between the remote and the device.
Some states/provinces do not allow limitations on how long an implied
Make sure to aim the remote at the IR sensor on the device.
warranty lasts or the exclusion or limitation of incidental or consequential
DVD VCR damage so the above limitations or exclusions may not apply to you. This
Problem: The device's menu does not appear on the TV Warranty gives you specific legal rights and you may also have other rights,
screen. which vary from state/province to state/province.
• Make sure you have connected the device to your TV properly
and selected the correct input. (See your devices' Owner's
Manuals for proper connection procedures.)
• Make sure the remote is in the correct mode by pressing the
corresponding device key (TV, SAT•CBL•STREAM, DVD•VCR).
This tells the remote which device to operate.
• Menu access isn't supported for all brands. You may need to
use your original remote control to access menu functions for
some devices.
For more information, including instructional
videos, remote programming codes, and customer
support, visit www.RCACodeSupport.com
Care and Maintenance
• Keep the remote dry. If it gets wet, wipe it dry immediately.
• Use and store the remote only in normal temperature
environments.
• Handle the remote gently and carefully. Don't drop it.
• Keep the remote away from dust and dirt.
• Wipe the remote with a damp cloth occasionally to keep it
looking new.
• Modifying or tampering with the remote's internal devices
can cause malfunction and invalidate its warranty.
DVD•VCR key
©2018 Voxx Accessories Corp.
3502 Woodview Trace, Suite 220
Indianapolis, IN 46268
Trademark(s) ® Registered
