Keeping Americas Highways safe for All!

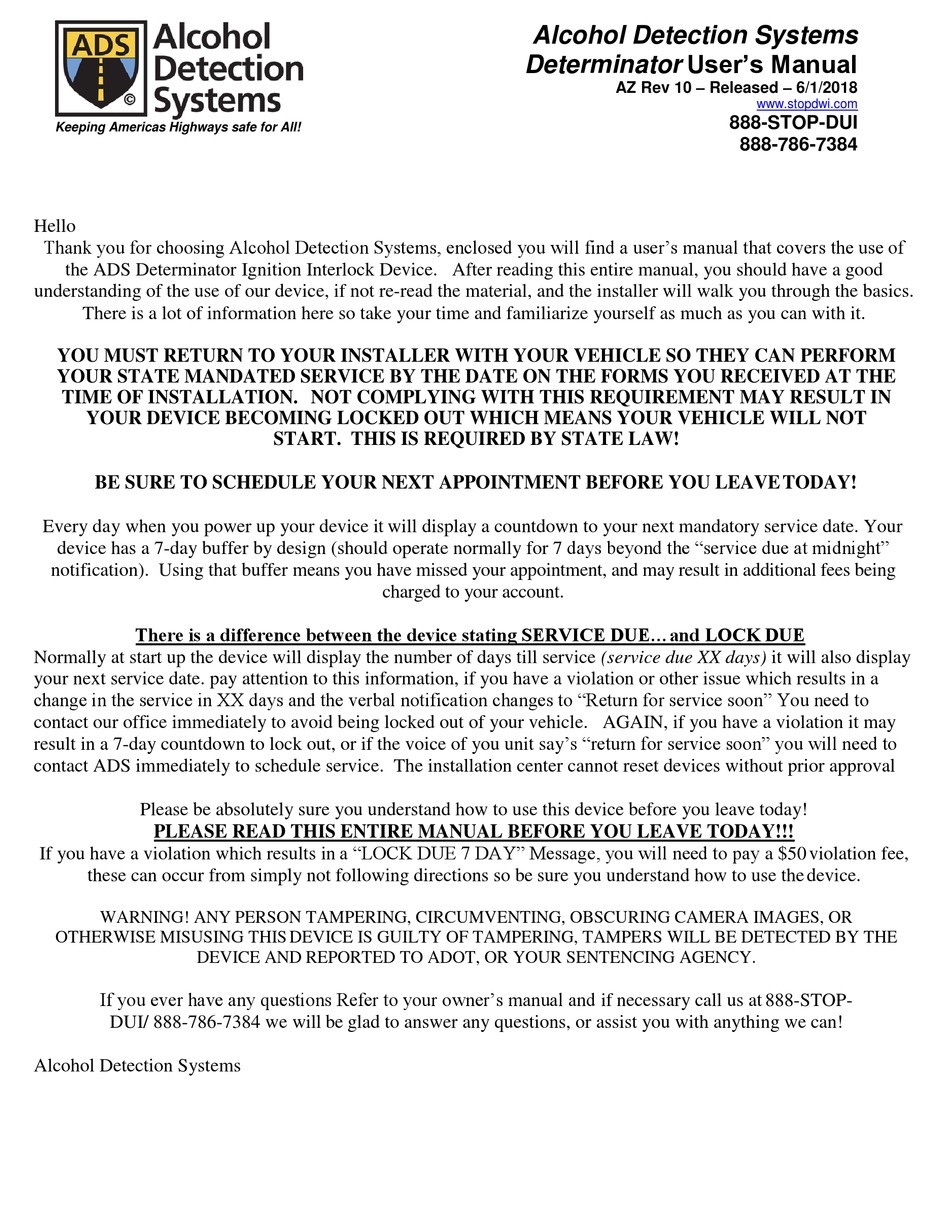

Hello
Thank you for choosing Alcohol Detection Systems, enclosed you will find a user's manual that covers the use of
the ADS Determinator Ignition Interlock Device. After reading this entire manual, you should have a good
understanding of the use of our device, if not re-read the material, and the installer will walk you through the basics.
There is a lot of information here so take your time and familiarize yourself as much as you can with it.
YOU MUST RETURN TO YOUR INSTALLER WITH YOUR VEHICLE SO THEY CAN PERFORM
YOUR STATE MANDATED SERVICE BY THE DATE ON THE FORMS YOU RECEIVED AT THE
TIME OF INSTALLATION. NOT COMPLYING WITH THIS REQUIREMENT MAY RESULT IN
YOUR DEVICE BECOMING LOCKED OUT WHICH MEANS YOUR VEHICLE WILL NOT
BE SURE TO SCHEDULE YOUR NEXT APPOINTMENT BEFORE YOU LEAVE TODAY!
Every day when you power up your device it will display a countdown to your next mandatory service date. Your
device has a 7-day buffer by design (should operate normally for 7 days beyond the "service due at midnight"
notification). Using that buffer means you have missed your appointment, and may result in additional fees being
There is a difference between the device stating SERVICE DUE...and LOCK DUE
Normally at start up the device will display the number of days till service (service due XX days) it will also display
your next service date. pay attention to this information, if you have a violation or other issue which results in a
change in the service in XX days and the verbal notification changes to "Return for service soon" You need to
contact our office immediately to avoid being locked out of your vehicle. AGAIN, if you have a violation it may
result in a 7-day countdown to lock out, or if the voice of you unit say's "return for service soon" you will need to
contact ADS immediately to schedule service. The installation center cannot reset devices without prior approval
Please be absolutely sure you understand how to use this device before you leave today!
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU LEAVE TODAY!!!
If you have a violation which results in a "LOCK DUE 7 DAY" Message, you will need to pay a $50 violation fee,
these can occur from simply not following directions so be sure you understand how to use the device.
WARNING! ANY PERSON TAMPERING, CIRCUMVENTING, OBSCURING CAMERA IMAGES, OR
OTHERWISE MISUSING THIS DEVICE IS GUILTY OF TAMPERING, TAMPERS WILL BE DETECTED BY THE
DEVICE AND REPORTED TO ADOT, OR YOUR SENTENCING AGENCY.
If you ever have any questions Refer to your owner's manual and if necessary call us at 888-STOP-
DUI/ 888-786-7384 we will be glad to answer any questions, or assist you with anything we can!
Alcohol Detection Systems
START. THIS IS REQUIRED BY STATE LAW!
charged to your account.
Alcohol Detection Systems
User's Manual
Determinator
AZ Rev 10 – Released – 6/1/2018
www.stopdwi.com
888-STOP-DUI
888-786-7384
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADS Alcohol Detection Systems
Summary of Contents for ADS Alcohol Detection Systems
- Page 1 888-786-7384 Hello Thank you for choosing Alcohol Detection Systems, enclosed you will find a user’s manual that covers the use of the ADS Determinator Ignition Interlock Device. After reading this entire manual, you should have a good understanding of the use of our device, if not re-read the material, and the installer will walk you through the basics.
-
Page 2: Quick Start Guide
Once you start the vehicle the unit will randomly test you while you drive, once in the first 15 min, and then at a rate of 2 an hour after that. When calling for a retest the unit will light up beep and say, “retest required please provide sample” ADS recommends you pull over to a safe location to perform random retests, once you’re in a safe position to perform the test, leave the vehicle running, and perform the test as required. - Page 3 Along with Hand Held, Vehicle Module, and wiring harness, the Determinator Kit includes 2 disposable Mouthpieces, extra mouthpieces are available by contacting Alcohol Detection Systems at 888-786-7384 Mouthpieces should be changed or cleaned at a user’s discretion or for a change of user.
- Page 4 • "Err: Hold Level " => To ensure a clear picture, the unit must be held upright and within +/-30 degrees of level at the time a sample is provided. ANY SERVICE INQUIRIES SHOULD BE MADE TO ADS @ 888-786-7384...
- Page 5 7 days. If this occurs the unit will be locked out unless returned for service within this time period, you will need to notify Alcohol Detection Systems of the situation so that we can ship a replacement Hand Held device before the countdown ends, there is a charge for this type of violation.
- Page 6 Demo Exit? is seen. Then press the yes button the unit display will the read ADS if you leave the service center and your unit calls for retests every 30 seconds or so it may be in demo mode, return to the service center or take it out of demo mode yourself by following these instructions.
- Page 7 A vehicle must be in good operating condition when the device is installed. A user must contact Alcohol Detection Systems prior to the loss of power when ever possible or as soon as possible after it occurs, the state of Arizona may send you a request for explanation, on this type of event, whenever possible obtain documentation on a power interruption for your own protection.
- Page 8 Unit is locked out either due to expiration of the service interval; notification of the pending lockout was displayed prior to the actual lock out. Contact ADS if Eligible provide the Hand Held’s Serial Number (it is displayed and printed on the unit’s rear label) for a possible access code override (fee may apply).
- Page 9 "Return for service now - Vehicle lockout"— Lockout period has elapsed. Vehicle is locked out and may not be started. If enabled, a code may be entered for a 24 hours grace period. ANY SERVICE INQUIRIES SHOULD BE MADE TO ADS @ 888-786-7384...
