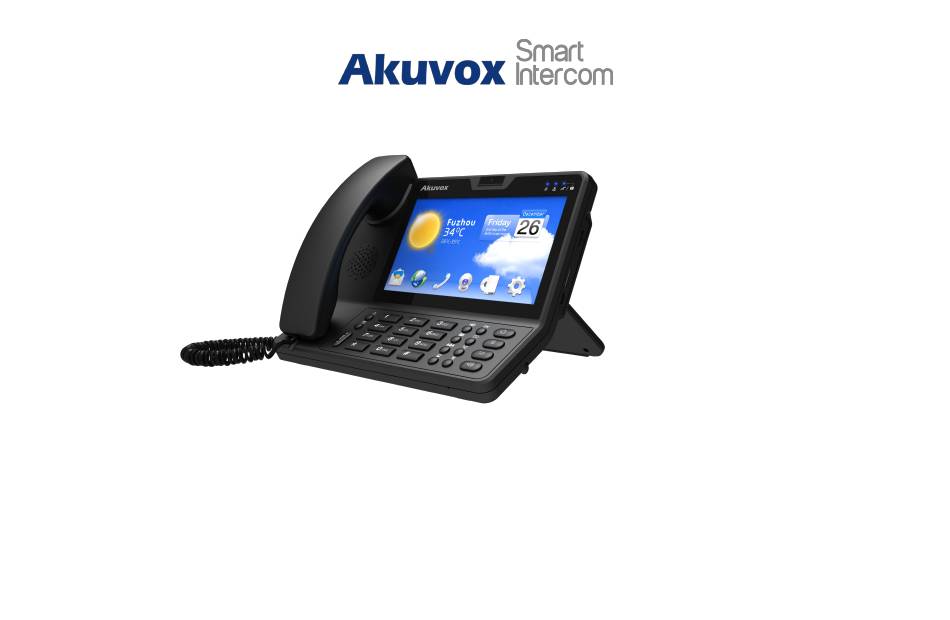

- Page 1 R48G(433) Android Video Phone User Manual...
- Page 2 About this manual Thank you for choosing Akuvox’s R48G(433) Android Video Phone. This manual is intended for end users, who need to use and configure the door phone. It provides an overview of the most essential functions and features of the product.
- Page 3 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator &you body.
-
Page 5: Table Of Contents
Content 1. Product Overview....................................... 1 1.1. Instruction........................................1 1.2. Equipment Appearance And Interface Description..........................2 1.2.1. Interface Description..................................4 1.2.2. Keypad Description..................................5 1.3. Pendant........................................6 1.4. Indicator........................................7 1.4.1. Indicator of R48G(433)..................................7 1.4.2. Indicator of Pendant..................................7 2. Installation..........................................9 2.1. Equipment Packaging....................................9 2.2. - Page 6 3.1.2. Dial Out Directly....................................14 3.1.3. Dialing Out From Contact List..............................15 3.1.4. Receive A Call....................................16 3.1.5. Call Options.....................................17 3.1.6. Multiple Calls....................................19 3.1.7. RF Number...................................... 20...
-
Page 7: Product Overview
1. Product Overview 1.1. Instruction VP-R48G(433) is an Android-based multimedia terminal with a 7 inch touch screen and a 1.3M CMOS sensor camera. It supports H.264/H.263 codecs with adaptive bandwidth adjustment. The 7 inch touch screen offers excellent user experiences such as high quality videophone, smooth internet surfing, various Android Apps and daily information. -
Page 8: Equipment Appearance And Interface Description
1.2. Equipment Appearance And Interface Description... -
Page 10: Interface Description
1.2.1. Interface Description Interface Description Camera Adjustable camera shooting angle, rotate down the camera to "off" angle. USB interface External USB storage device Headset Connect to 3.5mm stereo headphone, headset device HDMI Use HDMI cable to output the video to a TV screen Network interface can be connected to a hub, switch or other network access devices. -
Page 11: Keypad Description
1.2.2. Keypad Description Interface Description Power Turn on/off the LCD, Reboot, Silent mode Suspend Turn on/off the LCD, Reboot, Silent mode Volume Press + or – for the phone volume adjustment Standard Input the number or symbol Keypad Delete Delete a character before the cursor Same function with soft keyboard "Enter"... -
Page 12: Pendant
Transfer To transfer the current call to the third party Mute The other party cannot heard the voice during the call Return to the main screen, and long press, it will Home display recently used applications Menu To call up the System or program setup menu Back Return to the previous menu Speaker... -
Page 13: Indicator
1.4. Indicator 1.4.1. Indicator of R48G(433) Indicator Name Icon Status Description System is under working Power System is not working Network（LAN Port）is connected Network Connection Network（LAN Port）is disconnected Flashing Contains Miss Calls or Unread Message Information Normal status 1.4.2. Indicator of Pendant Indicator Status Description Notes... - Page 14 (1)The pendant in factory-test (1)If user long press the pendant Alternate Flashing mode. button meanwhile install the Green and Red battery, it will enter testing mode. User need to install the battery again and do not press the push button during the installation. Before the pendant matches with (1)User need to match the Flashing Red...
-
Page 15: Installation
(1)In the process of the RF Flashing Green Learning. press the pendant button. The phone will prompt RF Key Learned. (2)Press pendant button to make a call after it matched with the phone. Light off The battery runs out of power. (1)User need to replace a new Idle status. -
Page 16: Connecting Video Phone
Phone Cord Power Adapter Ethernet Cable Quick Start Guide 2.2. Connecting Video Phone Connection diagram... - Page 17 Connecting to Network Use the matched network cable to connect the LAN Port of the video phone to the Router or Switch. Viewing the top right corner of...
-
Page 18: Installation Considerations
the screen, if the indicator light is on, network cable is connected properly. Connecting to PC Use the matched network cable to connect the PC Port of the video phone to the PC. The PC can access to the internet network via PC Port of the video phone. -
Page 19: Daily Use
3. Daily Use 3.1. Call 3.1.1. Make A Call Users can directly dial from the keypad, select from the contact list or from call records to call out the number. Users can choose one of the following steps to enter into the dialing interface. Mode 1: Directly pick up the handset. -
Page 20: Dial Out Directly
3.1.2. Dial Out Directly 1) By pressing the number keys on the dial interface or directly pressing the number on keypad. To delete a number, press the icon on the dial interface, or press Delete button on the keypad. 2) If you want to make an audio call, click Audio Call label. If users want to make a video call, click Video Call label. -
Page 21: Dialing Out From Contact List
3.1.3. Dialing Out From Contact List 1) Tap icon ->Click the icon -> Label Phone Book->All Contacts. 2) Click label to make an audio call, click label to make a video call, or click label to send the message. 3.1.3.1. Contacts Fuzzy Matching Query Phone supports contacts fuzzy matching queried, intuitive, concise dialing interface for the intelligent input, greatly reducing the number of... -
Page 22: Receive A Call
3.1.4. Receive A Call Incoming calls include audio and video calls. If the caller has been stored in the contacts, it will show the contact name, otherwise the caller number will be displayed. 3.1.4.1. Answer A Call 1) Answer an audio call When receiving an audio call, click Audio label or pick up the handset or press speaker button on the keypad to answer. -
Page 23: Call Options
3.1.4.2. Reject A Call If users want to reject a call, click label in calling interface. If users want to reject a call from a number, you can add the number to the blacklist. 3.1.5. Call Options During the audio conversation Call options are described as below. - Page 24 Hold：Click the button to hold the current call, press to reseume Transfer : Click the button to enter the establish transfer interface Mute: Click the button to mute, to resume. Video call : Click the button to send a video request/close the video Answer mode: to switch handset , handfree...
-
Page 25: Multiple Calls
Video options are described as below. : Support local and remote video displayed; : Support remote video displayed; : Click to open full screen/ exit full screen. 3.1.6. Multiple Calls The Phone supports more than 3 line calls. The line information is on the right side of call interface. -
Page 26: Rf Number
3.1.7. RF Number This feature is specially designed for the elders. When the user needs help, he/she can press the pendant to dial out for emergency help. Setup RF number： Go to the path: Phone Setting- RF Setting. Choose one RF KEY. ...
