Mounting:

IMPORTANT! When selecting a mounting location, keep in
mind that there must be a minimum of 2" clearance around
the perimeter of the lighthead and any vehicle components
(insulation, etc.). The rear of the lighthead must have a
minimum 1/8" clearance. This
heatsink and helps maintain proper operating temperature.
Caution: Permanent mounting of this product will require
drilling. It is absolutely necessary to make sure that no other
vehicle components could be damaged by this process.
Check both sides of the mounting surface before starting. If
damage is likely, select a different mounting location.
1. Mark off the 4 mounting holes and the "cut-out" area as shown in the
mounting diagram.
2. Using a 1/4" drill bit, drill the 4 mounting holes then carefully cut and
remove the area of the mounting surface indicated. Do not remove
the mounting surface where the mounting holes are drilled.
3. Insert the screw grommet flange into the 4 holes drilled in step 2.
©2008 Whelen Engineering Company Inc.
Form No.14173B (051911)
ENGINEERING COMPANY INC.
51 Winthrop Road,
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Fax: (860) 526-4078
Mounting:
IMPORTANT! When selecting a mounting location, keep in
mind that there must be a minimum of 2" clearance around
the perimeter of the lighthead and any vehicle components
(insulation, etc.). The rear of the lighthead must have a
minimum 1/8" clearance. This
heatsink and helps maintain proper operating temperature.
Caution: Permanent mounting of this product will require
drilling. It is absolutely necessary to make sure that no other
vehicle components could be damaged by this process.
Check both sides of the mounting surface before starting. If
damage is likely, select a different mounting location.
1. Mark off the 4 mounting holes and the "cut-out" area as shown in the
mounting diagram.
2. Using a 1/4" drill bit, drill the 4 mounting holes then carefully cut and
remove the area of the mounting surface indicated. Do not remove
the mounting surface where the mounting holes are drilled.
3. Insert the screw grommet flange into the 4 holes drilled in step 2.
©2008 Whelen Engineering Company Inc.
Form No.14173B (051911)
®
increases airflow over the
For warranty information regarding this product, visit www.whelen.com/warranty
®
increases airflow over the
Page 1
For warranty information regarding this product, visit www.whelen.com/warranty

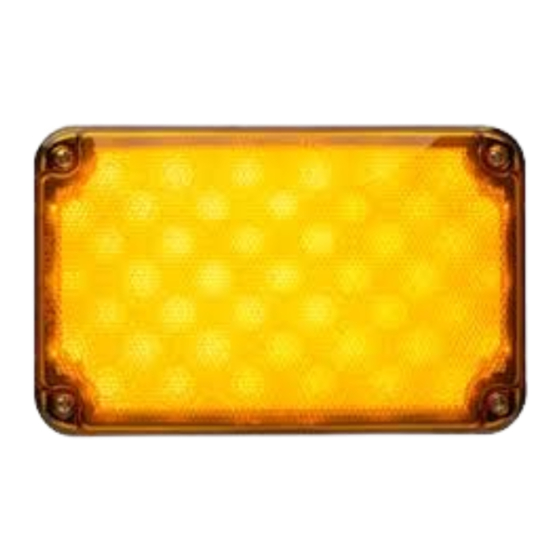

600 Series LED Scenelight
