Whelen Engineering Company M2FNDR Installation Manual

ENGINEERING COMPANY INC.
Route 145, Winthrop Road,
Chester, Connecticut 06412
Phone: (860) 526-9504
Fax: (860) 526-4078

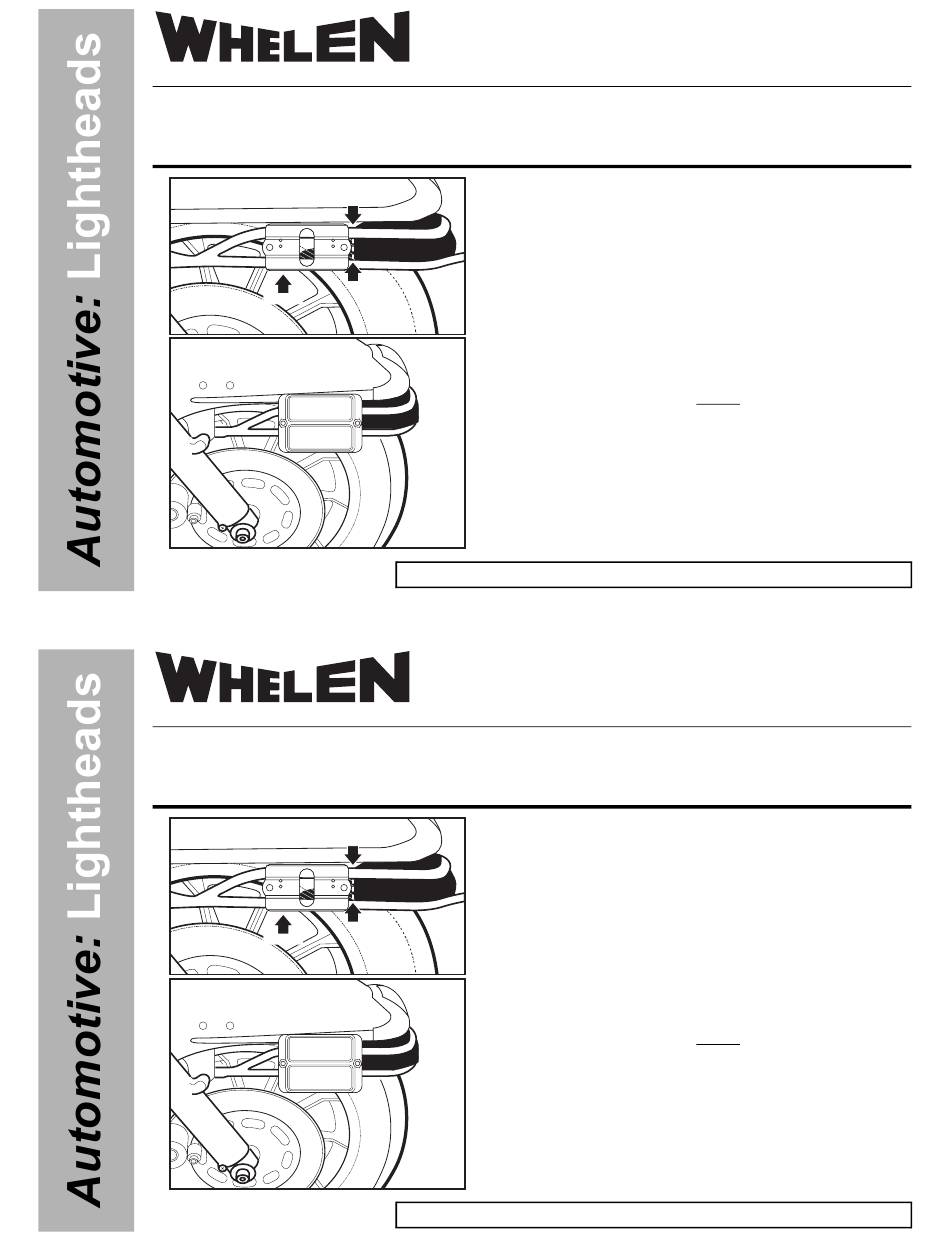

Fig. 1
Cut and remove rubber.
Bracket
©2009 Whelen Engineering Company Inc.
Form No.14282 (032509)
ENGINEERING COMPANY INC.
Route 145, Winthrop Road,
Chester, Connecticut 06412
Phone: (860) 526-9504
Fax: (860) 526-4078
Fig. 1
Cut and remove rubber.
Bracket
©2009 Whelen Engineering Company Inc.
Form No.14282 (032509)
Installation Guide: Fender Mounting Bracket
®
Model M2FNDR for TIR3 Series Lighthead
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
Installation:
1. First remove the reflector from the rubber bumper located inside the
front guard.
2. Now cut and remove just enough rubber from the rear of the bumper
to fit the bracket (Fig. 1).
3. Slide the mounting bracket behind the guard and secure the flange,
lightheads and anchor plate to the bracket using the two supplied 8-32
X 5/8 Phillips Pan Head Metal Screws (Figs. 2 & 3).
4. Extend the wires toward the headlight assembly (see reverse).
WARNING! All customer supplied wires that connect to the positive
terminal of the battery must be sized to supply at least 125% of the
maximum operating current and FUSED at the battery to carry that
load. DO NOT USE CIRCUIT BREAKERS WITH THIS PRODUCT!
IMPORTANT! It is the responsibility of the installation technician to
make sure that the installation and operation of this product will not
interfere with or compromise the operation or efficiency of any
vehicle equipment!
Fig. 2
For warranty information regarding this product, visit www.whelen.com/warranty
Installation Guide: Fender Mounting Bracket
®
Model M2FNDR for TIR3 Series Lighthead
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Canadian Sales e-mail: autocan@whelen.com
Customer Service e-mail: custserv@whelen.com
Installation:
1. First remove the reflector from the rubber bumper located inside the
front guard.
2. Now cut and remove just enough rubber from the rear of the bumper
to fit the bracket (Fig. 1).
3. Slide the mounting bracket behind the guard and secure the flange,
lightheads and anchor plate to the bracket using the two supplied 8-32
X 5/8 Phillips Pan Head Metal Screws (Figs. 2 & 3).
4. Extend the wires toward the headlight assembly (see reverse).
WARNING! All customer supplied wires that connect to the positive
terminal of the battery must be sized to supply at least 125% of the
maximum operating current and FUSED at the battery to carry that
load. DO NOT USE CIRCUIT BREAKERS WITH THIS PRODUCT!
IMPORTANT! It is the responsibility of the installation technician to
make sure that the installation and operation of this product will not
interfere with or compromise the operation or efficiency of any
vehicle equipment!
Fig. 2
Page 1
For warranty information regarding this product, visit www.whelen.com/warranty
2008/2009 Harley-Davidson®
2008/2009 Harley-Davidson®
