StudioDesk Pro Line M Series Assembly Manual

Can be applied to any desk with levelling system

Advertisement

Quick Links

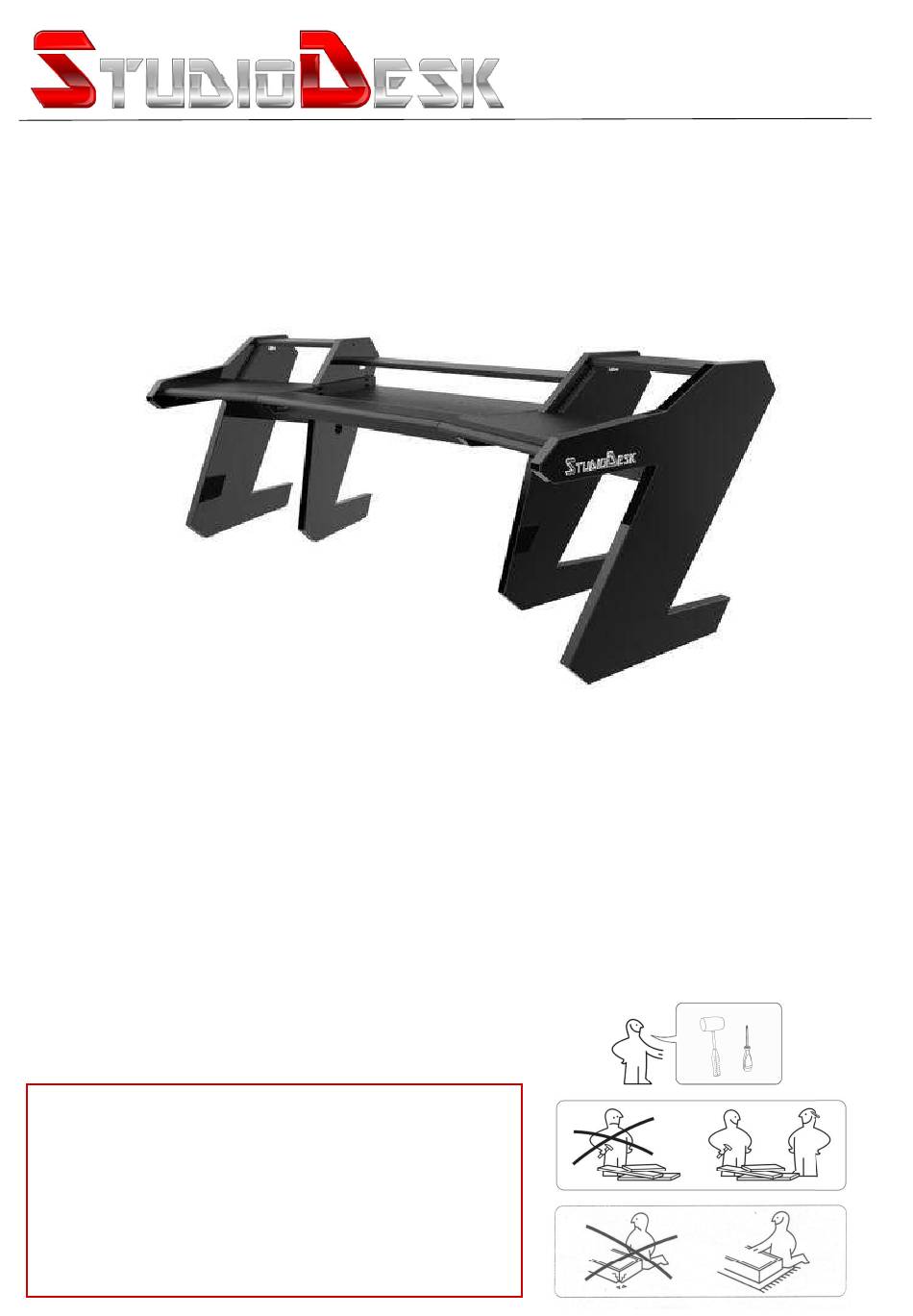

ASSEMBLY MANUAL
Pro Line M Series
Can be applied to any desk with Levelling system.
!
NOTE: In order to avoid injury or damages,
please do not try to assemble your desk alone.
PRO - Line is a heavy desk, which requires
at least two people to carry out assembly.
Please assemble on soft surface to avoid
scratches to the lacquer.
www.studiodesk.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro Line M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StudioDesk Pro Line M Series

  • Page 1 ASSEMBLY MANUAL Pro Line M Series Can be applied to any desk with Levelling system. NOTE: In order to avoid injury or damages, please do not try to assemble your desk alone. PRO - Line is a heavy desk, which requires at least two people to carry out assembly.
  • Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
  • Page 3 Step One Insert dowels (13) into the holes as shown in the illustration. Use a rubber hammer if needed. Step Two Assemble parts together on dowels as shown in the illustration. Step Three Fix assembled parts together using metal corners (9) and M6 screws (11) as shown in the illustration.
  • Page 4 Step Five Once dowels are in place and boards sit tight to the leg, use metal corners (9) and M6 screws (11) to fix the middle section to the leg. Repeat procedure with right Module. Note! Turn the metal corner’s shorter edge downward Step Six Screw the desk tips to the legs on both left and right module.
  • Page 5 Step Ten Decide on which height you want to have your top monitor shelf and fix the metal bracket (9) on the supporting position (1) using M6 Screws. Add another levelling brackets (16) to already installed brackets (16) as shown on the diagram left (2). Make sure all levelling brackets are set on the same height.
  • Page 6 Step Thirteen Install armrest support (11) using Confirmat screws (12) Step Fourteen Install rack rails to your using M6 screws. All holes are predefined with Screws inserts for easy installation. Congratulations! Your desk is ready to put all your valuable gear on it.
