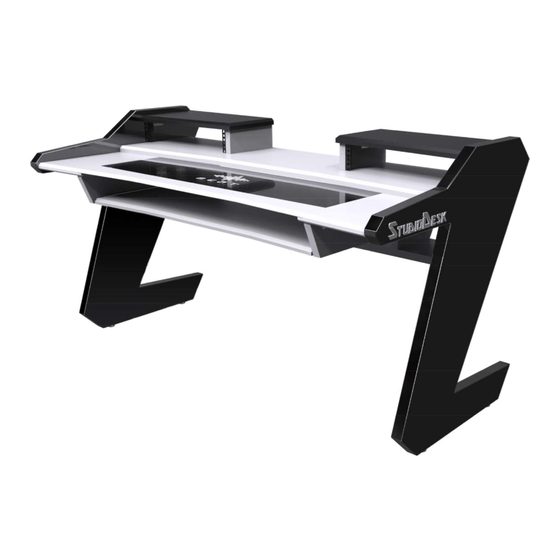

StudioDesk Beat Series Assembly Manual

Download this manual

The Desk You Deserve

ASSEMBLY MANUAL

Beat Series

For Beat desk Limited edition please use other manual.

NOTE: In order to avoid injury or damages,

please do not try to assemble your desk alone.

The Beat is massive and heavy desk and requires

at least two people to carry out assembly.

Please assemble on soft surface to avoid

scratches to the lacquer.

www.studiodesk.net

Need help?

Do you have a question about the Beat Series and is the answer not in the manual?

Page 1 The Desk You Deserve www.studiodesk.net ASSEMBLY MANUAL Beat Series For Beat desk Limited edition please use other manual. NOTE: In order to avoid injury or damages, please do not try to assemble your desk alone. The Beat is massive and heavy desk and requires at least two people to carry out assembly.
Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
Page 3 Step One Insert dowels (12) into the holes on both Legs as shown in the illustration. Use a rubber hammer if needed. Step Two Assemble parts 1a, 1b and 1c together with the dowels as shown in the illustration.
Page 4 Step Five Once dowels are in place and boards sit tight to the leg, use metal brackets (8) and M6 screws (10) to fix the middle section to the leg. Note! Turn the metal corner’s shorter edge downward Step Six Fix keyboard tray holders (5) in place using Metal brackets (8).
Page 5 Step Ten Bring desk into the standing position. Install shelf dividers (3) on the wooden Dowels. Rack screw inserts must be turned properly as shown on illustration. Step Eleven Install top shelves (4) to dowels And fix it using metal corners (8) And M6 screws (10).
