- Page 1 Instruction Manual for Operation & Maintenance BigSprinkler.com | 15250 Sunshine Rd. Yukon, OK. 73099 | 1-855-805-7901...

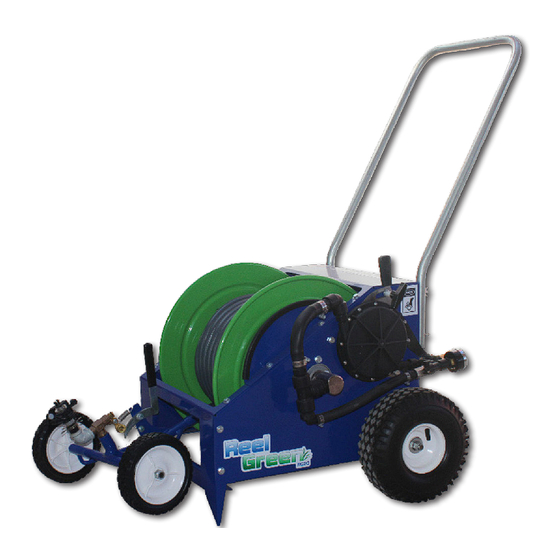

- Page 2 Introduction Thank you for purchasing a ReelGreen RG20 Traveling Sprinkler System. Please read this manual carefully before operation in order to become familiar with all components and their function. Safety is the main priority and failure to follow these instructions may cause serious injury. Neither ReelGreen nor BigSprinkler.com are to be responsible for machine failure or personal injury if these procedures...
- Page 3 Identification Data Identification Data The identification plate includes the model and serial number for your machine. Machine Controls & Components Handle To Position The RG20 Shut-Off Actuator (Pull to Set) Turbine Slide Engage/Disengage Lever Knob to Engage/Disengage Turbine Drive Turbine Drive & Sprinkler Head w/ Gear Reduction Adjustable Settings Pressure Gauge...
- Page 4 Conditions For Machine Operation The RG20 is designed for clean water suitable for irrigation. The machine is not designed for water that includes large pieces of debris or foreign objects. Start-Up Procedure/Operation 1) Push the machine to the desired location. Position the ma- chine with the sprinkler cart facing the direction to be irrigated.
- Page 5 Start-Up Procedure/Operation Continued **Important: Always pull cart out straight and tighten loose wraps before start ALWAYS PULL TUBE KEEP WRAPS TIGHT! OUT STRAIGHT! 5) Cart and hose may now be pulled out in a straight line away from the machine. Set the cart down after hose has been pulled out.
- Page 6 10) Turn on the water source to the RG20. The sprinkler equipped with the RG20 can be set to water a full circle pattern or any part of a circle. It is generally recommended to water a half circle pattern behind the cart, away from the direction of travel.
-
Page 7: Parts Diagrams
Parts Diagrams 1. (3/4” Hose, 9 ” Long) 2. 0176K (3/4” Hose Clamp) 3. 0169K 4. 0163K 5. 0171K 6. 0167K 7. (5/16” Hose Clamp) 8. (1/2” Hose, 9 ” Long) 1. TUBAC 20 C (Turbine Drive Assembly-Complete) 5/16 2. (Knob ”) 3. - Page 8 Parts Diagrams 1. 0034K (100 PSI Back Mount Gauge) 6. 0059K (3/4” Swivel, Garden Hose Swivel) 2. 0161K 7. 0058K (Filter Washer) *Not Shown 3. 0162K (Qty. 2) 8. 0160K 4. 0174K 9. 0170K (3/8” Nipple) 5. 0165K 1. CART (Cart Assembly-Complete) 2.
-
Page 9: Troubleshooting
Inlet Swivel Assembly: Grease every 200 hours. Turbine Seals: Replace turbine seals every 500 hours or once a season. Consult your dealer for information. Performance Chart Reel Green RG20 Performance Chart Inlet PSI Gallons Per Minute Wetted Length Wetted Width... - Page 10 1. Hold machine handle and tilt machine back. Allow water to drain out of the inlet fitting. Options RG20 Air Blow Out Fitting • For use with air compressor to winterize machine. RG20 Boost Pump Option • 110v Booster kits to boost incoming pressures by 30 to 50 psi.
- Page 11 F.O.B. Yukon, OK. As follows: All components of new ReelGreen system for 1 year from original equipment invoice, free of charge. BigSprinkler.com will repair or provide replacement polyethylene tube for any tube BigSprinkler.com determines has failed, due to defects in workmanship or materials for 3 years from the date of origina invoice, free of charge.
