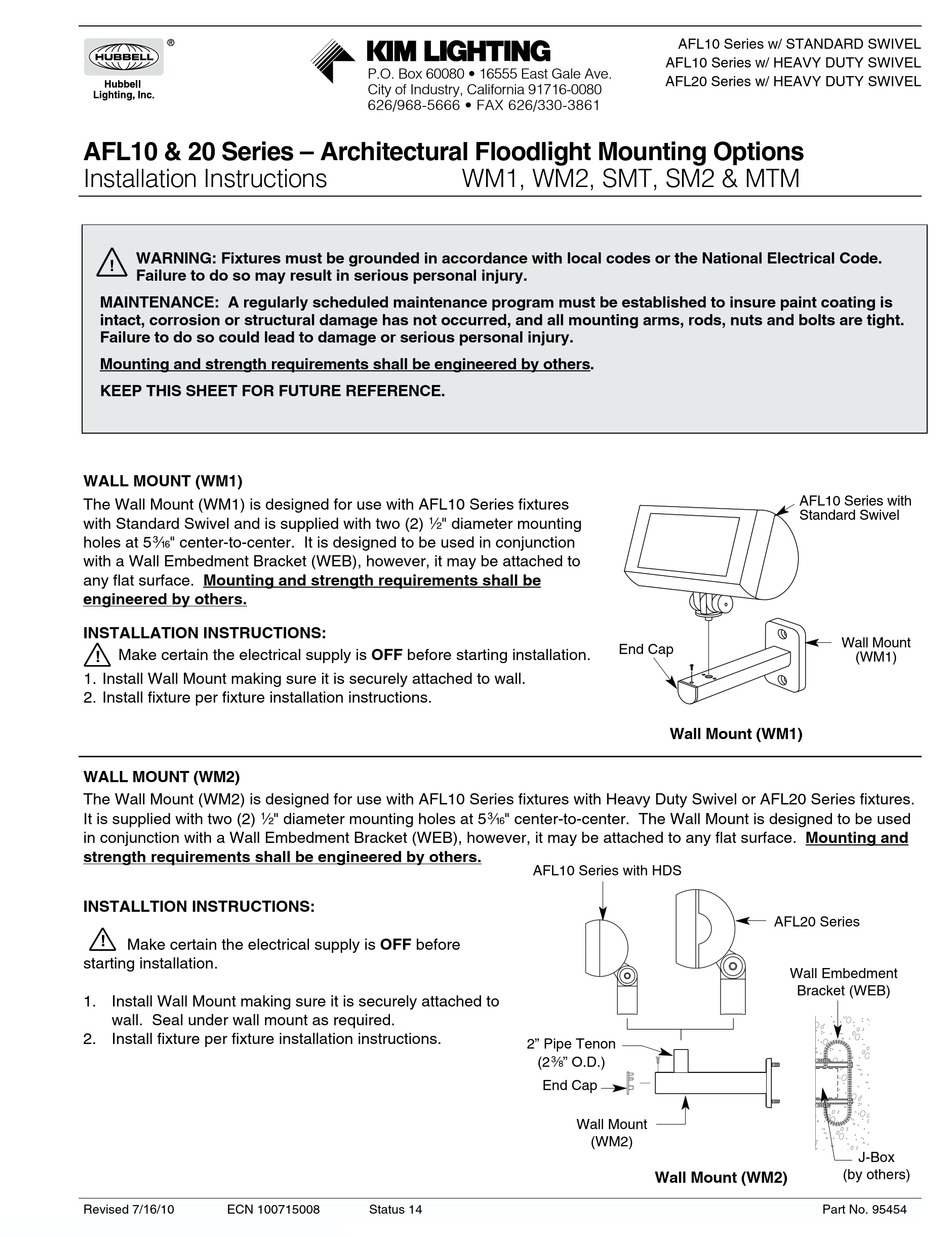

AFL10 & 20 Series – Architectural Floodlight Mounting Options
Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
MAINTENANCE: A regularly scheduled maintenance program must be established to insure paint coating is
intact, corrosion or structural damage has not occurred, and all mounting arms, rods, nuts and bolts are tight.
Failure to do so could lead to damage or serious personal injury.
Mounting and strength requirements shall be engineered by others.
KEEP THIS SHEET FOR FUTURE REFERENCE.
WALL MOUNT (WM1)
The Wall Mount (WM1) is designed for use with AFL10 Series fixtures
with Standard Swivel and is supplied with two (2) K" diameter mounting
holes at 5F" center-to-center. It is designed to be used in conjunction
with a Wall Embedment Bracket (WEB), however, it may be attached to
any flat surface. Mounting and strength requirements shall be
engineered by others.
INSTALLATION INSTRUCTIONS:
Make certain the electrical supply is OFF before starting installation.
!
1. Install Wall Mount making sure it is securely attached to wall.
2. Install fixture per fixture installation instructions.
WALL MOUNT (WM2)
The Wall Mount (WM2) is designed for use with AFL10 Series fixtures with Heavy Duty Swivel or AFL20 Series fixtures.
It is supplied with two (2) K" diameter mounting holes at 5F" center-to-center. The Wall Mount is designed to be used
in conjunction with a Wall Embedment Bracket (WEB), however, it may be attached to any flat surface. Mounting and
strength requirements shall be engineered by others.
INSTALLTION INSTRUCTIONS:
!
Make certain the electrical supply is OFF before
starting installation.
1. Install Wall Mount making sure it is securely attached to
wall. Seal under wall mount as required.
2. Install fixture per fixture installation instructions.
Revised 7/16/10
ECN 100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
WM1, WM2, SMT, SM2 & MTM
AFL10 Series with HDS
2" Pipe Tenon
(2C" O.D.)
End Cap
Status 14
AFL10 Series
AFL10 Series
AFL20 Series w/ HEAVY DUTY SWIVEL
End Cap
Wall Mount (WM1)
Wall Mount
(WM2)
Wall Mount (WM2)
/ STANDARD SWIVEL
W
/ HEAVY DUTY SWIVEL
W
AFL10 Series with
Standard Swivel
Wall Mount
(WM1)
AFL20 Series
Wall Embedment
Bracket (WEB)
J-Box
(by others)
Part No. 95454
