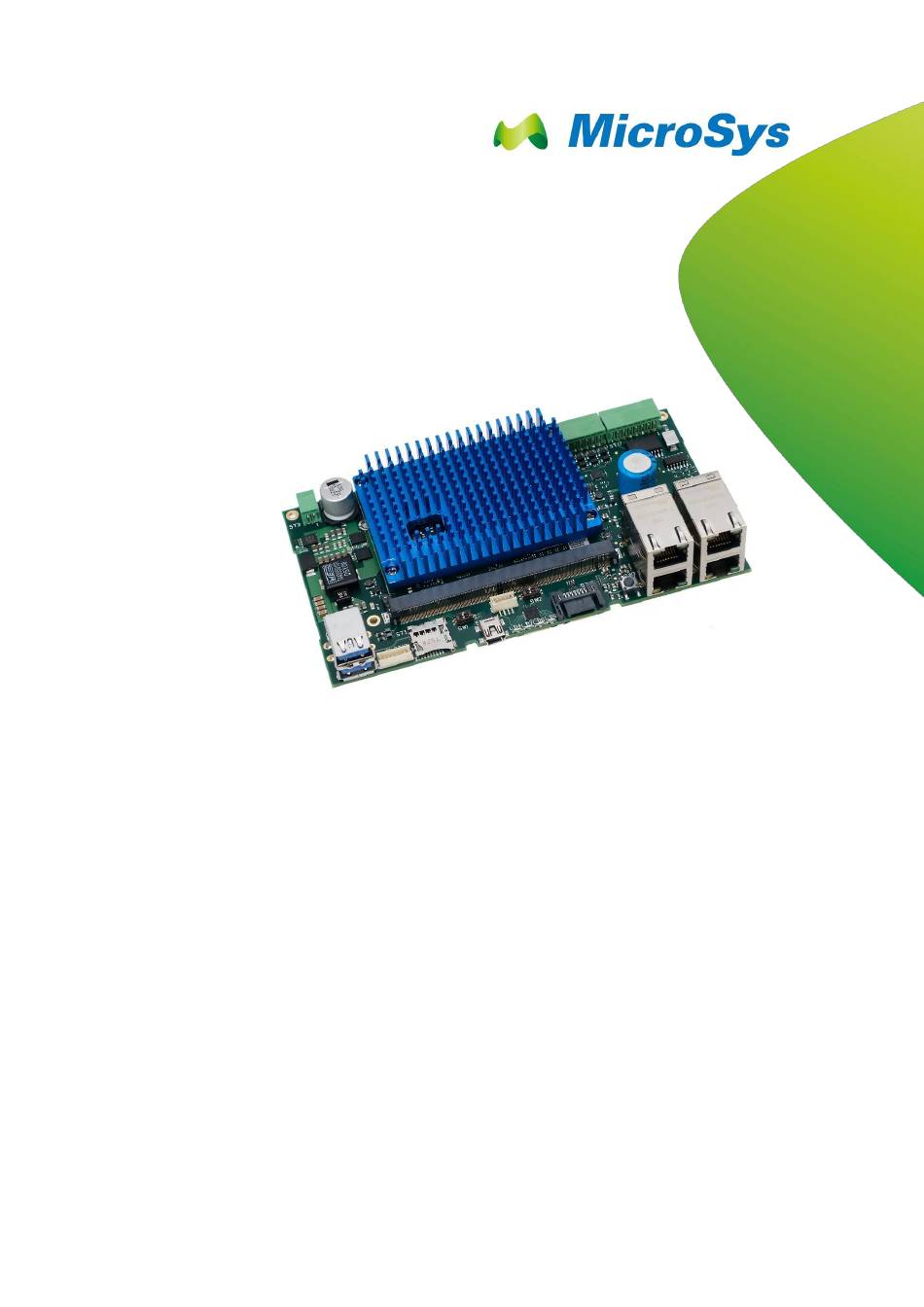

- Page 1 SBC-LS1043A2 User Manual (CRX05 Revision 2) V 2.2...
-
Page 2: Table Of Contents
RGB LEDs ........... 66 Nomenclature ..........24 Software ............. 67 JTAG Chain ..........24 U-Boot ............67 Reset Structure ........... 24 Operating System Support ......67 Clock Distribution ........27 miriac SBC-LS1043A2 User Manual V 2.2 2/72 © MicroSys Electronics GmbH 2017... - Page 3 NAND Flash ..........68 10.3 Table of Tables ..........70 9.3.2 SD Card ............68 History ............72 9.3.3 QSPI Flash ..........68 Appendix ............ 69 10.1 Acronyms ............ 69 miriac SBC-LS1043A2 User Manual V 2.2 3/72 © MicroSys Electronics GmbH 2017...
-
Page 4: General Notes
Copyright MicroSys Electronics GmbH, January 2017 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use. -
Page 5: Offer To Provide Source Code Of Certain Software
This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you... -
Page 6: Symbols, Conventions And Abbreviations
XXX+ denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac SBC-LS1043A2 User Manual V 2.2 6/72 © MicroSys Electronics GmbH 2017... -
Page 7: Introduction
Also, all mounting holes of the carrier board are connected to GND. The module’s mounting holes are not connected to GND Take this into account when handling and mounting the unit. Table 2-1 Safety and Handling Precautions miriac SBC-LS1043A2 User Manual V 2.2 7/72 © MicroSys Electronics GmbH 2017... -
Page 8: Short Description
Power Supply 12V DC stabilized / 2 A ■ Cable adapter for the power supply ■ USB cable type A – mini B ■ Micro-SD-Card with U-Boot and root file system miriac SBC-LS1043A2 User Manual V 2.2 8/72 © MicroSys Electronics GmbH 2017... -
Page 9: Feature Changelist For Hw Revision 2
Improved power input section with filters ■ Improved mechanical mounting of the CPU module and mPCIe/ mSATA cards ■ Replaced PCIe x1 edge card connector with second PCIe extension connector miriac SBC-LS1043A2 User Manual V 2.2 9/72 © MicroSys Electronics GmbH 2017... -
Page 10: Functional Coverage
✓ Watchdog trigger signal from module ✓ RTC backup Supercap ✓ Manual Reset Button ✓ Reset LEDs 2x red ✓ Power LED 1x green Table 2-2 Functional coverage miriac SBC-LS1043A2 User Manual V 2.2 10/72 © MicroSys Electronics GmbH 2017... -
Page 11: Quick Start Guide
TFTP server available for downloading within the network (Hint: may run on the same PC as the serial Terminal) ■ SATA HDD/SSD and/or SD card as mass storage and/or boot media miriac SBC-LS1043A2 User Manual V 2.2 11/72 © MicroSys Electronics GmbH 2017... -
Page 12: Board Preparation And Power-Up
Connect the power line to the ST3 connector, while the power supply is still switched off. ■ Switch on the power. Figure 3-1 System setup example (LAN port 3) miriac SBC-LS1043A2 User Manual V 2.2 12/72 © MicroSys Electronics GmbH 2017... -
Page 13: Operation
512 MiB MMC: FSL_SDHC: 0 serial Out: serial Err: serial SEC0: RNG instantiated SATA link 0 timeout. AHCI 0001.0301 32 slots 1 ports 6 Gbps 0x1 impl SATA mode miriac SBC-LS1043A2 User Manual V 2.2 13/72 © MicroSys Electronics GmbH 2017... -
Page 14: Linux
For detailed setup instructions, refer to the text document “linux-test-mpxls1043- A2.txt” delivered in the "Linux" directory along with the unit! The text document mentioned here may refer to an older version. miriac SBC-LS1043A2 User Manual V 2.2 14/72 © MicroSys Electronics GmbH 2017... -
Page 15: System Description
1x Mini PCIe/mSata Slot Lane x1 Root complex operations USB 3.0 Phy USB connector type A USB 3.0 Phy USB connector type A Expansion Cards MMC/SD/SDIO micro SD card holder miriac SBC-LS1043A2 User Manual V 2.2 15/72 © MicroSys Electronics GmbH 2017... - Page 16 10 pin layout for TAG- Controller connect Power Management Primary Supply LM25116MH Input: 9-30V DC Output: 5V DC / peak 8A Backup Supply Supercap (RTC backup) Table 4-1 Feature Overview miriac SBC-LS1043A2 User Manual V 2.2 16/72 © MicroSys Electronics GmbH 2017...
-
Page 17: Mechanical Dimensions
The following drawing shows the mechanical outline of the MPX-LS1043A2 module that is plugged in the CRX05 carrier board. This drawing is not to scale. For 3D data files please contact MicroSys. Figure 4-2 Mechanical Dimensions Modul miriac SBC-LS1043A2 User Manual V 2.2 17/72 © MicroSys Electronics GmbH 2017... -
Page 18: Sbc-Ls1043A2
The following drawing shows the mechanical outline of the SBC-LS1043A2 assembly. This drawing is not to scale. For 3D data files please contact MicroSys. Figure 4-3 SBC-LS1043A2 Mechanical Dimensions miriac SBC-LS1043A2 User Manual V 2.2 18/72 © MicroSys Electronics GmbH 2017... -
Page 19: Connector Layout - Top
System Description 4 4.4 Connector Layout – Top Figure 4-4 Top connectors miriac SBC-LS1043A2 User Manual V 2.2 19/72 © MicroSys Electronics GmbH 2017... -
Page 20: Connector Layout - Bottom
System Description 4 4.5 Connector Layout – Bottom Figure 4-5 Bottom connectors miriac SBC-LS1043A2 User Manual V 2.2 20/72 © MicroSys Electronics GmbH 2017... -
Page 21: Power Supply
The primary step-down converter produces 5V DC / max. 8A peak from the input supply which supplies both the LS1043A2 module and peripheral devices on the carrierboard CRX05. miriac SBC-LS1043A2 User Manual V 2.2 21/72 © MicroSys Electronics GmbH 2017... -
Page 22: Rtc Backup Battery
Alternatively, there’s another version of the carrier board available that has a backup battery holder for CR2032 batteries. Please contact MicroSys for more information. Part Reference: BAT1 Manufacturer: Renata Batteries Type: VBH2032-1 Used with: CR2032 batteries miriac SBC-LS1043A2 User Manual V 2.2 22/72 © MicroSys Electronics GmbH 2017... -
Page 23: Current Measurement
I²C current sense amplifier. The current sense amplifier is not populated by default. For more information please contact MicroSys. 4.6.6 Fuses There are no fuses on the SBC-LS1043A2. miriac SBC-LS1043A2 User Manual V 2.2 23/72 © MicroSys Electronics GmbH 2017... -
Page 24: System Core, Boot Configuration And On-Board Memory
5.2 Nomenclature MicroSys Electronics GmbH developed a SoM called “MPX-LS1043A2” which is part of the SBC-LS1043A2 evaluation kit. It is based on the NXP “LS1043A” processor. The ending “-A2” refers to the second generation of the CPU module. - Page 25 The watchdog is off by default. The watchdog is implemented on the carrier board. The following voltages on the carrier board are monitored by a Maxim MAX6751KA29 chip: miriac SBC-LS1043A2 User Manual V 2.2 25/72 © MicroSys Electronics GmbH 2017...
- Page 26 System Core, Boot Configuration and On-Board Memory 5 Voltage Monitoring Voltage Limit 3,3V Undervoltage Typ. 2,925V [2,867V-2,984V] 1,8V Undervoltage Typ. 1,72V [1,69V-1,75V] Table 5-2 Voltage monitoring limits (carrier) miriac SBC-LS1043A2 User Manual V 2.2 26/72 © MicroSys Electronics GmbH 2017...
-
Page 27: Clock Distribution
← ← 10R ← RX_CLK RXCK EC1_GTX MII1- ← ← ← ← ← ← ← CLK125 _CLK125 ST15 SPI- → → → → → → SPI-CLK SPI_CLK SHIFT miriac SBC-LS1043A2 User Manual V 2.2 27/72 © MicroSys Electronics GmbH 2017... - Page 28 → OUT1 CLKB+ PCIE- → OUT1# CLKB- ST11 PCIE- → OUT2 CLKC+ PCIE- → OUT2# CLKC- PCIE- → OUT3 CLKA+ PCIE- → OUT3# CLKA- Table 5-3 Clock distribution miriac SBC-LS1043A2 User Manual V 2.2 28/72 © MicroSys Electronics GmbH 2017...
-
Page 29: Boot Configuration
The BOOT-SELx pins are decoded to the following configuration (1= high, 0=low): LS1043A BOOT-SEL2 | BOOT-SEL1 = Signal SDHC NAND =[10] =[11] =[01] IFC_AD08 IFC_AD09 IFC_AD10 IFC_AD11 IFC_AD12 IFC_AD13 IFC_AD14 IFC_AD15 IFC_CLE Table 5-4 Hard wired boot signals miriac SBC-LS1043A2 User Manual V 2.2 29/72 © MicroSys Electronics GmbH 2017... -
Page 30: Nand Flash
↔ ↔ 1,8V IFC-AD1 IFC_AD1 data line ↔ ↔ 1,8V IFC-AD0 IFC_AD0 data line n.c. Not connect n.c. Not connect Table 5-5 NAND Flash pin assignments miriac SBC-LS1043A2 User Manual V 2.2 30/72 © MicroSys Electronics GmbH 2017... -
Page 31: Qspi Flash
Name Name ← LVTTL QSPI_A_CS0 ← LVTTL QSPI_A_SCK ← ↔ LVTTL QSPI_A_DATA0 ↔ LVTTL QSPI_A_DATA1 ↔ LVTTL QSPI_A_DATA2 ↔ LVTTL QSPI_A_DATA3 +1.8V Table 5-6 QSPI Flash pin assignment miriac SBC-LS1043A2 User Manual V 2.2 31/72 © MicroSys Electronics GmbH 2017... -
Page 32: I²C Bus
GP input pins of the MAX7325 port expander can be read correctly. This can be achieved by setting the default value 1 of Bit 0 in MODE1 register to 0. miriac SBC-LS1043A2 User Manual V 2.2 32/72... -
Page 33: I2C-1
(for I²C ports on PCIe slots) MAX9611AUB 0x73 Current Monitor for module consumption (not populated by default) Table 5-9 I²C2 bus map I²C-2 is not available when SD-card boot mode is selected! miriac SBC-LS1043A2 User Manual V 2.2 33/72 © MicroSys Electronics GmbH 2017... - Page 34 Device (Signal Name) (Signal Name) LS1043A2 IIC2_SCL IIC2_SDA ↓ ↕ Module Connector I2C2_SCL I2C2_SDA ↓ ↕ TCA9544APWR ↓ ↕ SC18IS602BIPW ↓ ↕ MAX9611AUB Table 5-10 I²C-2 pin assignment miriac SBC-LS1043A2 User Manual V 2.2 34/72 © MicroSys Electronics GmbH 2017...
-
Page 35: Peripherals
Bottom ✓ Fan connector ✓ LAN1 RJ45 connector ✓ LAN2 RJ45 connector Microcontroller TAG connect Bottom JTG0 JTAG connector TAG connect Bottom Table 6-1 Connector reference overview miriac SBC-LS1043A2 User Manual V 2.2 35/72 © MicroSys Electronics GmbH 2017... -
Page 36: Module Connector
RGMII PHY address connection on ST4 on ST4 „DTSEC9“ Lane1 0000 0001 „DTSEC2“ Lane3 0010 „DTSEC3“ RGMII1 0011 Table 6-2 LAN / DTSEC / SerDes / RGMII assignment miriac SBC-LS1043A2 User Manual V 2.2 36/72 © MicroSys Electronics GmbH 2017... -
Page 37: Port 1
LS1043A CPU configured as SGMII port. The SGMII lanes connect to a Marvell PHY 88E1512P which uses a copy of the reference voltage on pin T80 of the module connector ST4 as I/O voltage (1.8V). miriac SBC-LS1043A2 User Manual V 2.2 37/72... -
Page 38: Port 4
TX_CTRL T103 MII_TXEN TXEN MII1- ↔ ↔ 1.8V MDIO EMI1_MDIO MDIO MII1- ← ← 1.8V 10k0 EMI1_MDC MII1- → → 1.8V CLK125 EC1_GTX_CLK125 Table 6-6 Port4 pin assignment miriac SBC-LS1043A2 User Manual V 2.2 38/72 © MicroSys Electronics GmbH 2017... -
Page 39: Pcie Connections
The mPCIe slot is not connected on the SBC-LS1043A2 and therefore can not be used. It may be available in combination with other MPX2 modules. Part Reference: Manufacturer: Tyco Type: 2041119-1 Half size mini PCIe Used with: cards are preferred miriac SBC-LS1043A2 User Manual V 2.2 39/72 © MicroSys Electronics GmbH 2017... - Page 40 WDIS# PERST# PER0- +3.3Vaux PER0+ +1.5V SMB-CLK PET0- SMB-DAT PET0+ USB-D- USB-D+ +3.3Vaux +3.3Vaux LED-WWAN# LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Reserved +3.3Vaux Table 6-8 mPCIe Slot pinout miriac SBC-LS1043A2 User Manual V 2.2 40/72 © MicroSys Electronics GmbH 2017...
- Page 41 The following table shows the internal connections: LS1043A2 Name Signal Name ← ← PET4+ SRD-TX4+ ← ← PET4- SRD-TX4- → → PER4+ SRD-RX4+ → → PER4- SRD-RX4- Table 6-9 mPCIe Slot SerDes 4 assignment miriac SBC-LS1043A2 User Manual V 2.2 41/72 © MicroSys Electronics GmbH 2017...
-
Page 42: Mini-Pcie Slot / Msata Slot
The broaching nuts for half size cards are not populated as standard to allow cards without height restrictions. miriac SBC-LS1043A2 User Manual V 2.2 42/72 © MicroSys Electronics GmbH 2017... - Page 43 SRD-TX7+ AD19 SD2_TX3_P ← ← PET0- SRD-TX7- AE19 SD2_TX3_N → → PER0- SRD-RX7+ AG19 SD2_RX3_P → → PER0+ SRD-RX7- AH19 SD2_RX3_N Table 6-11 mPCIe Slot SerDes 7 assignment miriac SBC-LS1043A2 User Manual V 2.2 43/72 © MicroSys Electronics GmbH 2017...
-
Page 44: Pcie Extension Connector 1
Name Signal Name ← ← PET0+ SRD-TX0+ ← ← PET0- SRD-TX0- → → PER0+ SRD-RX0+ → → PER0- SRD-RX0- Table 6-13 PCIe Edge Card connector SerDes 0 assignment miriac SBC-LS1043A2 User Manual V 2.2 44/72 © MicroSys Electronics GmbH 2017... -
Page 45: Pcie Extension Connector 2
Devices connected to ST9 and ST11 share channel 3. Pin: +3.3V +3.3V +3.3V +1.5V REFCLK- REFCLK+ PER0- PER0+ PET0- PET0+ I2C2D-SCL I2C2D-SDA PERST# Table 6-14 PCIe Extension connector pinout (ST11) miriac SBC-LS1043A2 User Manual V 2.2 45/72 © MicroSys Electronics GmbH 2017... - Page 46 SD2-TX1_P ← ← PET0- SRD-TX5- AE16 SD2-TX1_N → → PER0+ SRD-RX5+ AG16 SD2-RX1_P → → PER0- SRD-RX5- AH16 SD2-RX1_N Table 6-15 PCIe Edge Card connector SerDes 5 assignment miriac SBC-LS1043A2 User Manual V 2.2 46/72 © MicroSys Electronics GmbH 2017...
-
Page 47: Sata
The following table shows the internal connections: ST10 LS1043A2 Name Signal Name ← ← SRD-TX6+ ← ← SRD-TX6- → → SRD-RX6- → → SRD-RX6+ Table 6-16 SATA connector pin assignment (not connected) miriac SBC-LS1043A2 User Manual V 2.2 47/72 © MicroSys Electronics GmbH 2017... -
Page 48: Microsd Card Slot
The microSD card slot uses a copy of the reference voltage on pin B81 of the module connector ST4 as I/O voltage (3.3V). This voltage is generated on the carrierboard. miriac SBC-LS1043A2 User Manual V 2.2 48/72 © MicroSys Electronics GmbH 2017... -
Page 49: Usb
USB port 1 can be individually enabled and has a separate overcurrent signal. USB1_PWRFAULT is a high-active signal. A logic high level signals the port is in an overcurrent situation miriac SBC-LS1043A2 User Manual V 2.2 49/72 © MicroSys Electronics GmbH 2017... -
Page 50: Usb2
USB port 2 can be individually enabled and has a separate overcurrent signal. USB2_PWRFAULT is a high-active signal. A logic high level signals the port is in an overcurrent situation miriac SBC-LS1043A2 User Manual V 2.2 50/72 © MicroSys Electronics GmbH 2017... -
Page 51: Usb3
The following table shows the internal connections: LS1043A Signal Signal Name → Vbus+ UART1-RXD UART1_SIN ← UART1-TXD UART1_SOUT → UART1-CTS# UART1_CTS# ← UART1-RTS# UART1_RTS# Table 6-20 USB Host-Only Port 3 pin assignment miriac SBC-LS1043A2 User Manual V 2.2 51/72 © MicroSys Electronics GmbH 2017... -
Page 52: Uart
Signal Name +3.3V → → UART2-RXD UART2-RXD UART2_SIN ← ← UART2-TXD UART2-TXD UART2_SOUT ← ← UART2-RTS# UART2-RTS# UART2_RTS# → → UART2-CTS# UART2-CTS# UART2_CTS# Table 6-21 UART2 pin assignment miriac SBC-LS1043A2 User Manual V 2.2 52/72 © MicroSys Electronics GmbH 2017... -
Page 53: Mcu Connector
6.9 MCU Connector The connector “MCU” is for production test only. Part Reference: Pin1 Pin10 Manufacturer: Tag-Connect Pin5 Pin6 Type: TC2050-IDC-FP Signal Please contact MicroSys Table 6-22 MCU Connector Pinout miriac SBC-LS1043A2 User Manual V 2.2 53/72 © MicroSys Electronics GmbH 2017... -
Page 54: Jtag Connector
TRST# TRST# ← ← JTDO B104 JTDO → → JTCK B105 JTCK → → PRST# B110 PRST# PORESET# → → JTDI B103 JTDI Table 6-23 JTAG Connector Pinout miriac SBC-LS1043A2 User Manual V 2.2 54/72 © MicroSys Electronics GmbH 2017... -
Page 55: Aurora Connectors (Optional)
Aurora interface. Additional signals are available on the following connector “ST14”. For more information please contact MicroSys. Part Reference: ST14 Manufacturer: Type: SM06B-XSRS-ETB Mates with: 06XSR-36S Signal HALT# EVTI# EVTO# Table 6-25 Aurora Connector (ST14) Pinout miriac SBC-LS1043A2 User Manual V 2.2 55/72 © MicroSys Electronics GmbH 2017... -
Page 56: General Purpose Inputs / Outputs
691 382 010 006 Mates with: 691 381 000 006 Pin: Description MAX7325ATG P0 (Pin1) P1 (Pin2) P2 (Pin3) P3 (Pin4) P4 (Pin5) P5 (Pin6) Table 6-26 GPIN connector pinout (ST16) miriac SBC-LS1043A2 User Manual V 2.2 56/72 © MicroSys Electronics GmbH 2017... - Page 57 In order to supply the GPOUT section with input voltages different from the input voltage R154 has to be removed. V_EXT on pin1 supports input voltages from 5V to 24V. miriac SBC-LS1043A2 User Manual V 2.2 57/72 © MicroSys Electronics GmbH 2017...
-
Page 58: Fan Connector
In case a fan is necessary MicroSys recommends to use a 5V rated fan. Part Reference: Manufacturer: Würth Elektronik Type: 679 304 124 022 Mates with: 648 004 113 322 Pin: Description +VIN Table 6-28 FAN connector pinout (PWE) miriac SBC-LS1043A2 User Manual V 2.2 58/72 © MicroSys Electronics GmbH 2017... -
Page 59: Smart Card Connector
Mates with: t.b.d. LS1043A Signal Signal Description Name Name +3,3V ← ← 10k PU ← ← 10k PU ↔ ↔ 10k PU Table 6-29 Smart Card connector pinout (ST2) miriac SBC-LS1043A2 User Manual V 2.2 59/72 © MicroSys Electronics GmbH 2017... -
Page 60: Embrick Connector
Signal Name Connection MAX7325ATG SEL_OUT O15 (Pin17) SC18IS602BIPW MOSI# MOSI (Pin6) SC18IS602BIPW MISO# MISO (Pin5) SC18IS602BIPW CLK# SPICLK (Pin11) +3,3V +VIN +VIN Table 6-30 emBRICK connector pinout (ST18) miriac SBC-LS1043A2 User Manual V 2.2 60/72 © MicroSys Electronics GmbH 2017... -
Page 61: Switches, Buttons And Jumpers
The following table shows the internal connections of the BOOT-SEL pins: Microcontroller Switch Signal Signal Name → → BOOT-SEL1 T134 BOOT-SEL1 PTD4 → → BOOT-SEL2 T133 BOOT-SEL2 PTD5 Table 7-2 BOOT-SELx pin assignment miriac SBC-LS1043A2 User Manual V 2.2 61/72 © MicroSys Electronics GmbH 2017... -
Page 62: Board Configuration Switch
EEPROM on I²C Bus1: Setting SW 2-1 SW 2-2 Description Watchdog disabled Watchdog active EEPROM J25: address 0x57 EEPROM J25: address 0x55 Table 7-3 Configuration switch settings miriac SBC-LS1043A2 User Manual V 2.2 62/72 © MicroSys Electronics GmbH 2017... -
Page 63: Reset Button
The following table shows the internal connections: Microcontroller Signal Signal Name 1 & 3 +3,3V RST- → 2 & 4 ($39166) → → T136 RST-IN# PTC7 Table 7-4 Reset button pinout miriac SBC-LS1043A2 User Manual V 2.2 63/72 © MicroSys Electronics GmbH 2017... -
Page 64: Leds
Yellow LED: off Green LED: configurable LAN2-A LAN4-LED1 Default: On = Link / Off = no Link / Blink = Activity LAN2-A LAN4-LED2 Yellow LED: off Table 8-1 Indicator LEDs miriac SBC-LS1043A2 User Manual V 2.2 64/72 © MicroSys Electronics GmbH 2017... -
Page 65: Power And Reset Leds
LED ON: Power-up sequence of the module is finished, power is good Green LED OFF: Power fail LED ON: Module reset is active LED OFF: Reset is inactive Blue General Purpose LED Table 8-3 Indicator LEDs – Module miriac SBC-LS1043A2 User Manual V 2.2 65/72 © MicroSys Electronics GmbH 2017... -
Page 66: Rgb Leds
LED3 is not connected LED4 LED5 0x15 LED6 LED7 is not connected LED8 LED9 0x16 LED10 LED11 is not connected LED12 LED13 0x17 LED14 LED15 is not connected miriac SBC-LS1043A2 User Manual V 2.2 66/72 © MicroSys Electronics GmbH 2017... -
Page 67: Software
Either boot option can be selected by the Boot Device Switch (see chapter 7). 9.2 Operating System Support MicroSys Electronics GmbH offers Linux and Microware OS-9 RTOS support for the board. Other Operating Systems are available on request only. -
Page 68: Flash Layout
0x0001_0000 0x0003_FFFF reserved 192kB 0x0004_0000 0x0004_FFFF Environment 64kB 0x0005_0000 0x000C_FFFF reserved 512kB 0x000D_0000 0x000F_FFFF FMAN Microcode 192kB 0x0010_0000 0x001F_FFFF U-Boot 0x0020_0000 SPI-SIZE-1 free Table 9-3 QSPI Flash layout miriac SBC-LS1043A2 User Manual V 2.2 68/72 © MicroSys Electronics GmbH 2017... -
Page 69: Appendix
SDIO ..................Secure Digital Input Output SDRAM ..........Synchronous Dynamic Random Access Memory SerDes ..................... Serializer/Deserializer SOM ......................System On Module UART ............Universal Asynchronous Receiver Transmitter USB ..................... Universal Serial Bus miriac SBC-LS1043A2 User Manual V 2.2 69/72 © MicroSys Electronics GmbH 2017... -
Page 70: Table Of Figures
Table 6-8 mPCIe Slot pinout ....................40 Table 6-9 mPCIe Slot SerDes 4 assignment ................ 41 Table 6-10 mPCIe / mSATA Slot pinout ................43 Table 6-11 mPCIe Slot SerDes 7 assignment ..............43 miriac SBC-LS1043A2 User Manual V 2.2 70/72 © MicroSys Electronics GmbH 2017... - Page 71 Table 8-3 Indicator LEDs – Module ..................65 Table 9-1 NAND Flash layout ....................68 Table 9-2 SD Card layout ..................... 68 Table 9-3 QSPI Flash layout ....................68 Table 11-1 Document history ....................72 miriac SBC-LS1043A2 User Manual V 2.2 71/72 © MicroSys Electronics GmbH 2017...
-
Page 72: History
2017-11-09 Added I2C1 address 0x00 in Table 5-7 2018-07-16 Table 2-2: add LED colors Operating voltage change to 9V – 30V PCIe portcount correction Table 11-1 Document history miriac SBC-LS1043A2 User Manual V 2.2 72/72 © MicroSys Electronics GmbH 2017...
