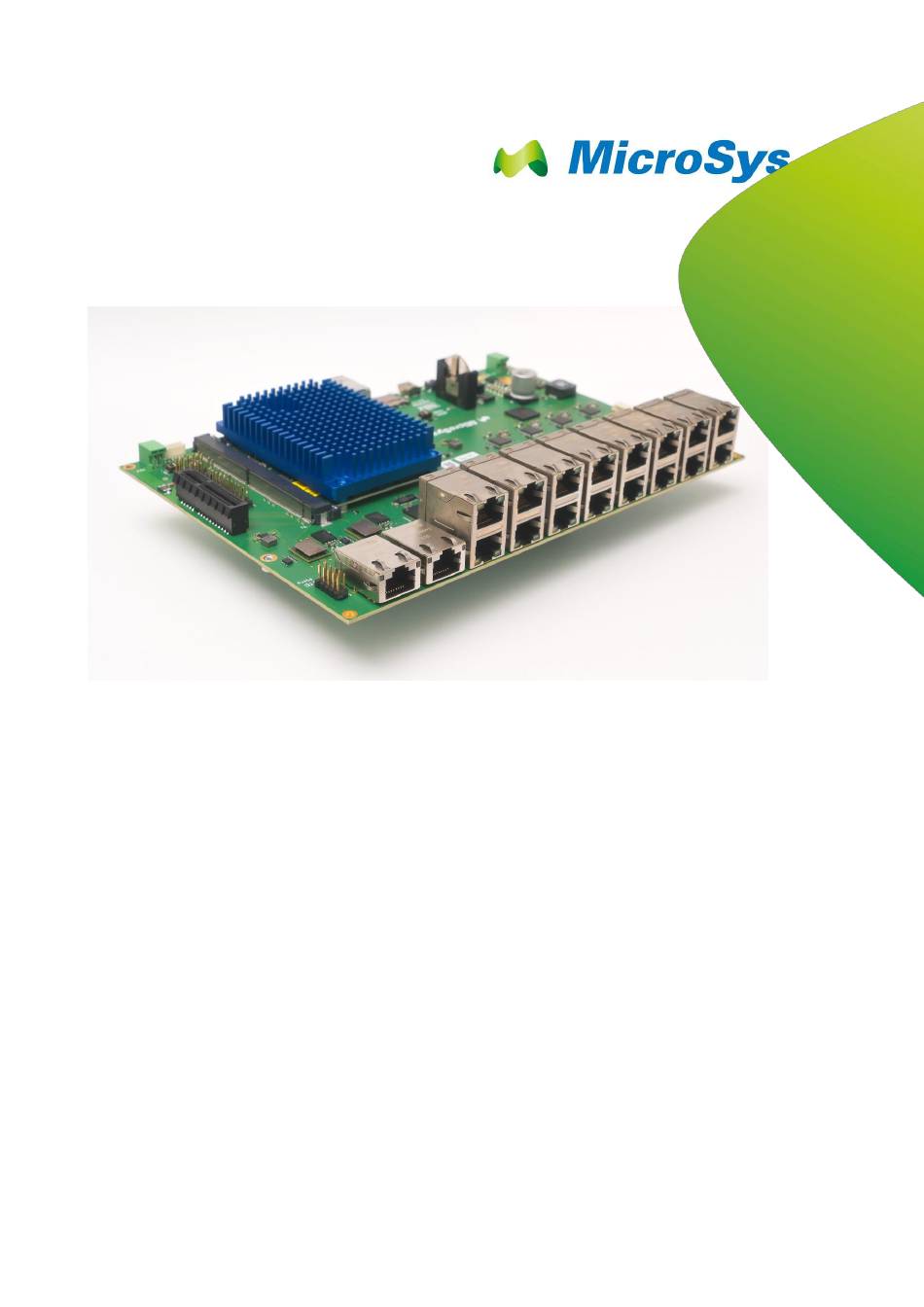

- Page 1 SBC-LS1088A-TSN User Manual (CRX06 Revision 2) V 2.1...
-
Page 2: Table Of Contents
Clock Distribution ........26 Operating System Support ......65 Boot Configuration ........28 Flash Layout ..........66 NAND Flash ..........29 9.3.1 NAND Flash ..........66 QSPI Flash ..........30 miriac SBC-LS1088A-TSN_User Manual V 2.1 2/70 © MicroSys Electronics GmbH 2017... - Page 3 SD Card ............66 10.3 Table of Tables ..........68 9.3.3 QSPI Flash ..........66 History ............70 Appendix ............ 67 10.1 Acronyms ............ 67 10.2 Table of Figures .......... 68 miriac SBC-LS1088A-TSN_User Manual V 2.1 3/70 © MicroSys Electronics GmbH 2017...
-
Page 4: General Notes
Copyright MicroSys Electronics GmbH, January 2017 All rights reserved. All rights in any information which appears in this document belong to MicroSys Electronics GmbH or our licensors. You may copy the information in this manual for your personal, non-commercial use. -
Page 5: Offer To Provide Source Code Of Certain Software
This offer is valid to anyone in receipt of this information. MicroSys Electronics GmbH is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you... -
Page 6: Symbols, Conventions And Abbreviations
XXX- denotes the negative signal of a differential pair XXX+ denotes the positive signal of a differential pair denotes an optional not mounted or fitted part Table 1-2 Conventions miriac SBC-LS1088A-TSN_User Manual V 2.1 6/70 © MicroSys Electronics GmbH 2017... -
Page 7: Introduction
Also, all mounting holes of the carrier board are connected to GND. The module’s mounting holes are not connected to GND Take this into account when handling and mounting the unit. Table 2-1 Safety and Handling Precautions miriac SBC-LS1088A-TSN_User Manual V 2.1 7/70 © MicroSys Electronics GmbH 2017... -
Page 8: Short Description
Power Supply 12V DC stabilized / 2 A ■ Cable adapter for the power supply ■ USB cable type A – mini B ■ Micro-SD-Card with U-Boot and root file system miriac SBC-LS1088A-TSN_User Manual V 2.1 8/70 © MicroSys Electronics GmbH 2017... -
Page 9: Functional Coverage
✓ RTC backup Battery ✓ Manual Reset Button ✓ Reset / Power LEDs 2x red, 1x green ✓ User LEDs 4x RGB Table 2-2 Functional coverage miriac SBC-LS1088A-TSN_User Manual V 2.1 9/70 © MicroSys Electronics GmbH 2017... -
Page 10: Quick Start Guide
■ TFTP server available for downloading within the network (Hint: may run on the same PC as the serial Terminal) ■ SD card as mass storage and/or boot media miriac SBC-LS1088A-TSN_User Manual V 2.1 10/70 © MicroSys Electronics GmbH 2017... -
Page 11: Board Preparation And Power-Up
Connect other peripherals (USB, LAN ...) as far as intended. ■ Connect the power line to the PWR connector, while the power supply is still switched off. ■ Switch on power. Figure 3-1 System setup example miriac SBC-LS1088A-TSN_User Manual V 2.1 11/70 © MicroSys Electronics GmbH 2017... -
Page 12: Operation
3.9 GiB (DDR4, 64-bit, CL=15, ECC on) SEC0: RNG instantiated FSL_SDHC: 0 PPA Firmware: Version LSDK-18.09 Using SERDES1 Protocol: 25 (0x19) Using SERDES2 Protocol: 12 (0xc) NAND: 512 MiB miriac SBC-LS1088A-TSN_User Manual V 2.1 12/70 © MicroSys Electronics GmbH 2017... - Page 13 MMC read: dev # 0, block # 28672, count 8192 ... 8192 blocks read: OK crc32+ fsl-mc: Booting Management Complex ... SUCCESS fsl-mc: Management Complex booted (version: 10.16.2, boot status: 0x1) Hit any key to stop autoboot: 0 => miriac SBC-LS1088A-TSN_User Manual V 2.1 13/70 © MicroSys Electronics GmbH 2017...
-
Page 14: Linux
For detailed setup instructions, refer to the text document “linux-fsl-sdk-v2.0-1703- mpxls1088.txt” delivered in the "Linux" directory along with the unit! The text document mentioned here may refer to an older version. miriac SBC-LS1088A-TSN_User Manual V 2.1 14/70 © MicroSys Electronics GmbH 2017... -
Page 15: System Description
3.0 / 8Gbps PCIe connector Lane x4 Root complex operations Serdes 4, 5, 0, 7 USB 3.0 Phy USB connector type A USB 3.0 Phy USB connector type A miriac SBC-LS1088A-TSN_User Manual V 2.1 15/70 © MicroSys Electronics GmbH 2017... - Page 16 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps TSN Switch 1 RGMII 1 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps TSN Switch 2 RGMII 2 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps miriac SBC-LS1088A-TSN_User Manual V 2.1 16/70 © MicroSys Electronics GmbH 2017...
- Page 17 JTAG 10 pin header Controller Power Management Primary Supply LM25116MH Input: 9-30V DC Output: 5V DC / peak 8A Backup Supply Battery CR2032 (RTC backup) Table 4-1 Feature Overview miriac SBC-LS1088A-TSN_User Manual V 2.1 17/70 © MicroSys Electronics GmbH 2017...
-
Page 18: Mechanical Dimensions
The following drawing shows the mechanical outline of the MPX-LS1088A module that is plugged in the CRX06 carrier board. This drawing is not to scale. For 3D data files please contact MicroSys. Figure 4-2 Mechanical Dimensions Module miriac SBC-LS1088A-TSN_User Manual V 2.1 18/70 © MicroSys Electronics GmbH 2017... -
Page 19: Sbc-Ls1088A-Tsn
The following drawing shows the mechanical outline of the SBC-LS1088A-TSN assembly. This drawing is not to scale. For 3D data files please contact MicroSys. Figure 4-3 CRX06 Mechanical Dimensions miriac SBC-LS1088A-TSN_User Manual V 2.1 19/70 © MicroSys Electronics GmbH 2017... -
Page 20: Connector Layout - Top
System Description 4 4.4 Connector Layout – Top Figure 4-4 Top connectors miriac SBC-LS1088A-TSN_User Manual V 2.1 20/70 © MicroSys Electronics GmbH 2017... -
Page 21: Power Supply
Würth Elektronik Type: 691 382 010 002 691 381 000 002 Mates with: (included in delivery) Pin-out: Name Function „-“ „+“ +VIN (= typ. 12V) Table 4-1 Pinout PWR miriac SBC-LS1088A-TSN_User Manual V 2.1 21/70 © MicroSys Electronics GmbH 2017... -
Page 22: Power Supply Structure
The following diagram shows the Power Supply structure: 4.5.4 RTC Backup Battery The RTC on the module is supplied from replaceable CR2032 battery. Part Reference: BAT1 Manufacturer: Renata Batteries Type: VBH2032-1 Used with: CR2032 battery miriac SBC-LS1088A-TSN_User Manual V 2.1 22/70 © MicroSys Electronics GmbH 2017... -
Page 23: Current Measurement
5V path supplying the CPU module. For automated measurements there’s a MAX9611AUB current sense amplifier. It is interfaced by I²C. 4.5.6 Fuses There are no fuses on the SBC-LS1088A-TSN. miriac SBC-LS1088A-TSN_User Manual V 2.1 23/70 © MicroSys Electronics GmbH 2017... -
Page 24: System Core, Boot Configuration And On-Board Memory
Please see chapter 0 for a description of the JTAG connector. 5.3 Reset Structure Figure 5-1 Reset Structure (carrier CRX06 Revision 2) miriac SBC-LS1088A-TSN_User Manual V 2.1 24/70 © MicroSys Electronics GmbH 2017... - Page 25 The following voltages on the carrier board are monitored by a Maxim MAX6751KA29 chip: Voltage Monitoring Voltage Limit 3,3V Undervoltage Typ. 2,925V [2,867V-2,984V] 1,8V Undervoltage Typ. 1,72V [1,69V-1,75V] Table 5-2 Voltage monitoring limits (carrier) miriac SBC-LS1088A-TSN_User Manual V 2.1 25/70 © MicroSys Electronics GmbH 2017...
-
Page 26: Clock Distribution
← ← ← ← 10R ← RX_CLK RXCK EC1_GTX MII1- ← ← ← ← ← ← ← CLK125 _CLK125 SPI- → → → → → → SPI-CLK SPI_CLK SHIFT miriac SBC-LS1088A-TSN_User Manual V 2.1 26/70 © MicroSys Electronics GmbH 2017... - Page 27 PCIeT_LR1 AB18 REFCLK2 SD1- → PCIeC_LR1 REFCLK2 AB19 PCIE Signal Signal SRD- PCIE- → → PCIeT_LR4 CLK1+ CLK+ SRD- PCIE- → → PCIeC_LR4 CLK1- CLK- Table 5-3 Clock distribution miriac SBC-LS1088A-TSN_User Manual V 2.1 27/70 © MicroSys Electronics GmbH 2017...
-
Page 28: Boot Configuration
The BOOT-SELx pins are decoded to the following configuration (1= high, 0=low): LS1088A BOOT-SEL2 | BOOT-SEL1 = Signal SDHC NAND =[10] =[11] =[01] IFC_AD08 IFC_AD09 IFC_AD10 IFC_AD11 IFC_AD12 IFC_AD13 IFC_AD14 IFC_AD15 IFC_CLE Table 5-4 Hard wired boot signals miriac SBC-LS1088A-TSN_User Manual V 2.1 28/70 © MicroSys Electronics GmbH 2017... -
Page 29: Nand Flash
IFC_AD2 data line ↔ ↔ 1,8V IFC-AD1 IFC_AD1 data line ↔ ↔ 1,8V IFC-AD0 IFC_AD0 data line n.c. Not connect n.c. Not connect Table 5-5 NAND Flash pin assignments miriac SBC-LS1088A-TSN_User Manual V 2.1 29/70 © MicroSys Electronics GmbH 2017... -
Page 30: Qspi Flash
Range Name Name ← LVTTL QSPI_A_CS0 ← LVTTL QSPI_A_SCK ← ↔ LVTTL QSPI_A_DATA0 ↔ LVTTL QSPI_A_DATA1 ↔ LVTTL QSPI_A_DATA2 ↔ LVTTL QSPI_A_DATA3 +1.8V Table 5-6 QSPI Flash pin assignment miriac SBC-LS1088A-TSN_User Manual V 2.1 30/70 © MicroSys Electronics GmbH 2017... -
Page 31: I²C Bus
GP input pins of the MAX7325 port expander can be read correctly. This can be achieved by setting the default value 1 of Bit 0 in MODE1 register to 0. miriac SBC-LS1088A-TSN_User Manual V 2.1 31/70 © MicroSys Electronics GmbH 2017... -
Page 32: I2C-1
Function PCA9517ADP I2C buffer for external busses 0x7F MAX9611AUB Current Monitor for module consumption Table 5-9 I²C2 bus map I²C-2 is not available when SD-card boot mode is selected! miriac SBC-LS1088A-TSN_User Manual V 2.1 32/70 © MicroSys Electronics GmbH 2017... - Page 33 The I²C bus 2 has the following layout: I/O Range: LVTTL Device (Signal Name) (Signal Name) LS1088A IIC2_SCL IIC2_SDA ↓ ↕ Module Connector I2C2_SCL I2C2_SDA ↓ ↕ MAX9611AUB ↓ ↕ PCA9517ADP Table 5-10 I²C-2 pin assignment miriac SBC-LS1088A-TSN_User Manual V 2.1 33/70 © MicroSys Electronics GmbH 2017...
-
Page 34: Peripherals
LAN6 RJ45 connector 1G ✓ LAN7 RJ45 connector 1G ✓ LAN8 RJ45 connector 1G ✓ LAN9 RJ45 connector 10G ✓ LAN10 RJ45 connector 10G Table 6-1 Connector reference overview miriac SBC-LS1088A-TSN_User Manual V 2.1 34/70 © MicroSys Electronics GmbH 2017... -
Page 35: Module Connector
“LAN1” to “LAN4”. The connectors have inte- grated magnetics. The following picture shows the view of the LAN connectors as placed on the CRX06 baseboard. For further information on the LEDs please see chapter 8 miriac SBC-LS1088A-TSN_User Manual V 2.1 35/70 © MicroSys Electronics GmbH 2017... -
Page 36: Possible Lan-Configurations
GPIO2_7 and GPIO2_16 are not available on LS1088 as long as QSPI support is enabled via hardware strapping. They cannot control multiplexers. That results in default setting is QSGMII (PullUp at selcetpin of multiplexer). So only QSGMII is available with MPX-LS1088A. miriac SBC-LS1088A-TSN_User Manual V 2.1 36/70 © MicroSys Electronics GmbH 2017... -
Page 37: Srd1 (Xfi / Sgmii)
Port 2 is connected to standard RJ-45 sockets “LAN5, LAN6”. It uses the SerDes Lanes 2 provided by the LS1088A CPU configured as QSGMII or SGMII port. The serdes lanes connect to a Marvell PHY 88E1548P. miriac SBC-LS1088A-TSN_User Manual V 2.1 37/70 © MicroSys Electronics GmbH 2017... -
Page 38: Srd3 (Qsgmii / Sgmii)
Lanes 3 provided by the LS1088A CPU configured as QSGMII or SGMII port. The serdes lanes connect to a Marvell PHY 88E1548P. 88E1548P LS1088A Name Signal Name SRD3-TXS+ ← ← SRD-TX3+ AD10 SD1-TX1 SRD3-TXQ+ miriac SBC-LS1088A-TSN_User Manual V 2.1 38/70 © MicroSys Electronics GmbH 2017... - Page 39 0 = SGMII (is not possible to use with MXP-LS1088A) CBTL04083ABS LS1088A Name Signal Name ← ← SRD3-SQ B117 SRD3-SQ GPIO2_16 GPIO2_16 is not available on MPX-LS1088A with QSPI hardware strapping. miriac SBC-LS1088A-TSN_User Manual V 2.1 39/70 © MicroSys Electronics GmbH 2017...
-
Page 40: Tsn 1-4 Connections
MII1-TXEN MII_TXEN Table 6-8 Port 4 pin assignment 88E1512P SJA1105 Signal Name TSNx- → RX_CLK RX_CLK TSNx- → RX_CTRL RX_CTL → RXD0 TSNx-RXD0 → RXD1 TSNx-RXD1 → RXD2 TSNx-RXD2 miriac SBC-LS1088A-TSN_User Manual V 2.1 40/70 © MicroSys Electronics GmbH 2017... -
Page 41: Tsn 5-8 Connections
MII4-TXD2 MII2-TXD2 MII_TXD2 ← ← MII4-TXD3 MII2-TXD3 MII_TXD3 ← ← MII4-TX_CTL MII2-TXEN MII_TXEN Table 6-10 Port 4-7 pin assignment Interconneting SJA1105 switch for TSN5-8 is same as for TSN1-4. miriac SBC-LS1088A-TSN_User Manual V 2.1 41/70 © MicroSys Electronics GmbH 2017... -
Page 42: Mdio1 Addressing
Table 6-11 LAN / MDIO1 / Addressing 6.4.9 MDIO2 addressing MDIO2 is connected to Phys: 2x 88X3310P. Part component Address 88X3310P Addr = 0x10h 88X3310P Addr = 0x11h Table 6-12 LAN / MDIO2 / Addressing miriac SBC-LS1088A-TSN_User Manual V 2.1 42/70 © MicroSys Electronics GmbH 2017... -
Page 43: Pcie Connections
PCIPWR. Voltage has to be exactly 12V. There is just protection for reverse polarity but no protection for overvoltage. Part Reference PCIPWR Manufacturer: Würth Elektronik Type: 691 382 010 002 Mates with: 691 381 000 002 miriac SBC-LS1088A-TSN_User Manual V 2.1 43/70 © MicroSys Electronics GmbH 2017... - Page 44 RSVD1 RFCLK+ RFCLK- PET0+ PET0- PER0+ PER0- PRSNT2# RSVD2 PET1+ PET1- PER1+ PER1- PET2+ PET2- PER2+ PER2- PET3+ PET3- PER3+ PER3- RSVD3 PRSNT2# RSVD4 Table 6-15 mPCIe Slot pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 44/70 © MicroSys Electronics GmbH 2017...
- Page 45 PET3+ SRD-TX7+ AD19 SD2_TX3_P ← ← PET3- SRD-TX7- AE19 SD2_TX3_N → → PER3+ SRD-RX7+ AG19 SD2_RX3_P → → PER3- SRD-RX7- AH19 SD2_RX3_N Table 6-16 PCIe Slot SerDes 4 assignment miriac SBC-LS1088A-TSN_User Manual V 2.1 45/70 © MicroSys Electronics GmbH 2017...
-
Page 46: Microsd Card Slot
The microSD card slot uses a copy of the reference voltage on pin B81 of the module connector ST4 as I/O voltage (3.3V). This voltage is generated on the carrierboard. miriac SBC-LS1088A-TSN_User Manual V 2.1 46/70 © MicroSys Electronics GmbH 2017... -
Page 47: Usb
USB port 1 can be individually enabled and has a separate overcurrent signal. USB1_PWRFAULT is a high-active signal. A logic high level signals the port is in an overcurrent situation miriac SBC-LS1088A-TSN_User Manual V 2.1 47/70 © MicroSys Electronics GmbH 2017... -
Page 48: Usb2
USB port 2 can be individually enabled and has a separate overcurrent signal. USB2_PWRFAULT is a high-active signal. A logic high level signals the port is in an overcurrent situation miriac SBC-LS1088A-TSN_User Manual V 2.1 48/70 © MicroSys Electronics GmbH 2017... -
Page 49: Usb3
Used with: cables The following table shows the internal connections: LS1088A Signal Signal Name → Vbus+ UART1-RXD UART1_SIN ← UART1-TXD UART1_SOUT Table 6-20 USB Host-Only Port 3 pin assignment miriac SBC-LS1088A-TSN_User Manual V 2.1 49/70 © MicroSys Electronics GmbH 2017... -
Page 50: Mcu Connector
Peripherals 6 6.8 MCU Connector The connector “MCU” is for production test only. Part Reference: Manufacturer: Tag-Connect Type: TC2050-IDC-FP Signal Please contact MicroSys Table 6-21 MCU Connector Pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 50/70 © MicroSys Electronics GmbH 2017... -
Page 51: Jtag 1 Connector (Processor)
B106 TRST# TRST# ← ← JTDO B104 JTDO → → JTCK B105 JTCK → → PRST# B110 PRST# PORESET# → → JTDI B103 JTDI Table 6-22 JTAG Connector Pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 51/70 © MicroSys Electronics GmbH 2017... -
Page 52: Jtag 2 Connector (Carrier Components)
→ TDI ➔ J22 ➔ J23 ➔ J41 ➔ J42 ➔ J36 ➔ J31 (chain) → → TRST# J22, J23, J31, J36, J41, J42 Table 6-23 JTAG Connector Pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 52/70 © MicroSys Electronics GmbH 2017... -
Page 53: I2C / Spi Extension (Jp1)
UART2 is available on the following extension connector including hardware handshaking with RTS/CTS. The I/O range is LVTTL. UART1 handshaking RTS/CTS is available on the following extension connector. The I/O range is LVTTL. miriac SBC-LS1088A-TSN_User Manual V 2.1 53/70 © MicroSys Electronics GmbH 2017... - Page 54 ↔ GPIO-2 GPIO2_10 ↔ ↔ GPIO-3 B123 GPIO-3-18 GPIO2_11 ↔ ↔ GPIO-0 B122 GPIO-0-18 GPIO2_12 ↔ ↔ GPIO-1 B121 GPIO-1-18 +3.3V Table 6-25 I2C / SPI Extension Connector Pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 54/70 © MicroSys Electronics GmbH 2017...
-
Page 55: Fan Connector (Pwe)
In case a fan is necessary MicroSys recommends to use a 5V rated fan. Part Reference: Manufacturer: Würth Elektronik Type: 679 304 124 022 Mates with: 648 004 113 322 Pin: Description +VIN Table 6-26 FAN connector pinout (PWE) miriac SBC-LS1088A-TSN_User Manual V 2.1 55/70 © MicroSys Electronics GmbH 2017... -
Page 56: Switches, Buttons And Jumpers
The following table shows the internal connections of the BOOT-SEL pins: Microcontroller Switch Signal Signal Name → → BOOT-SEL1 T134 BOOT-SEL1 PTD4 → → BOOT-SEL2 T133 BOOT-SEL2 PTD5 Table 7-2 BOOT-SELx pin assignment miriac SBC-LS1088A-TSN_User Manual V 2.1 56/70 © MicroSys Electronics GmbH 2017... -
Page 57: Board Configuration Switch
EEPROM on I²C Bus1: Setting SW 2-1 SW 2-2 Description Watchdog disabled Watchdog active EEPROM J25: address 0x57 EEPROM J25: address 0x55 Table 7-3 Configuration switch settings miriac SBC-LS1088A-TSN_User Manual V 2.1 57/70 © MicroSys Electronics GmbH 2017... -
Page 58: Reset Button
The following table shows the internal connections: Microcontroller Signal Signal Name 1 & 3 +3,3V RST- → 2 & 4 ($39166) → → T136 RST-IN# PTC7 Table 7-4 Reset button pinout miriac SBC-LS1088A-TSN_User Manual V 2.1 58/70 © MicroSys Electronics GmbH 2017... -
Page 59: Leds
Default: 3 blinks – 1000Mbps / 2 blinks – 100 Mbps LAN10 / 1 blink – 10 Mbps / 0 blinks – no link LED-10G2-2 Right Yellow LED: off Table 8-1 Indicator LEDs miriac SBC-LS1088A-TSN_User Manual V 2.1 59/70 © MicroSys Electronics GmbH 2017... -
Page 60: Rj45 Leds Qsgmii
Green LED: configurable Default: 3 blinks – 1000Mbps / 2 blinks – 100 Mbps LAN6-A LAN3-LED0 P2_LED0 / 1 blink – 10 Mbps / 0 blinks – no link miriac SBC-LS1088A-TSN_User Manual V 2.1 60/70 © MicroSys Electronics GmbH 2017... -
Page 61: Rj45 Leds Tsn
/ 1 blink – 10 Mbps / 0 blinks – no link LAN2-A TSN2-LED2 Yellow LED: off Green LED: configurable LAN2-B TSN6-LED1 Default: On = Link / Off = no Link / Blink = Activity miriac SBC-LS1088A-TSN_User Manual V 2.1 61/70 © MicroSys Electronics GmbH 2017... - Page 62 Yellow LED: off LAN4-B TSN8-LED1 Green LED: configurable Default: On = Link / Off = no Link / Blink = Activity LAN4-B TSN8-LED2 Yellow LED: off Table 8-3 Indicator LEDs miriac SBC-LS1088A-TSN_User Manual V 2.1 62/70 © MicroSys Electronics GmbH 2017...
-
Page 63: Power And Reset Leds
LED ON: Power-up sequence of the module is finished, power is good Green LED OFF: Power fail LED ON: Module reset is active LED OFF: Reset is inactive Blue General Purpose LED Table 8-5 Indicator LEDs – Module miriac SBC-LS1088A-TSN_User Manual V 2.1 63/70 © MicroSys Electronics GmbH 2017... -
Page 64: Rgb Leds
LED5 0x15 LED6 LED7 is not connected LED8 LED9 0x16 LED10 LED11 is not connected LED12 LED13 0x17 LED14 LED15 is not connected Table 8-5 RGB LEDs – Carrier miriac SBC-LS1088A-TSN_User Manual V 2.1 64/70 © MicroSys Electronics GmbH 2017... -
Page 65: Software
Either boot option can be selected by the Boot Device Switch (see chapter 7). 9.2 Operating System Support MicroSys Electronics GmbH offers Linux and Microware OS-9 RTOS support for the board. Other Operating Systems are available on request only. -
Page 66: Flash Layout
0x0000_FFFF RCW + PBL 64kB 0x0001_0000 0x0003_FFFF FMAN Microcode 192kB 0x0004_0000 0x000F_FFFF reserved 768kB 0x0010_0000 0x001F_FFFF U-Boot 0x0020_0000 0x0023_FFFF Environment 256kB 0x0024_0000 SPI-SIZE-1 free Table 9-3 QSPI Flash layout miriac SBC-LS1088A-TSN_User Manual V 2.1 66/70 © MicroSys Electronics GmbH 2017... -
Page 67: Appendix
SBC ....................Single Board Computer SDRAM ..........Synchronous Dynamic Random Access Memory SerDes ............Serializer/Deserializer, Serializer/Deserializer SOM ......................System On Module UART ............Universal Asynchronous Receiver Transmitter USB ..................... Universal Serial Bus miriac SBC-LS1088A-TSN_User Manual V 2.1 67/70 © MicroSys Electronics GmbH 2017... -
Page 68: Table Of Figures
Table 6-8 Port 4 pin assignment ..................40 Table 6-9 Port 0-3 pin assignment ..................41 Table 6-10 Port 4-7 pin assignment ..................41 Table 6-11 LAN / MDIO1 / Addressing ................. 42 miriac SBC-LS1088A-TSN_User Manual V 2.1 68/70 © MicroSys Electronics GmbH 2017... - Page 69 Table 8-1 Indicator LEDs ..................... 59 Table 9-1 NAND Flash layout ....................66 Table 9-2 SD Card layout ..................... 66 Table 9-3 QSPI Flash layout ....................66 Table 11-1 Document history ....................70 miriac SBC-LS1088A-TSN_User Manual V 2.1 69/70 © MicroSys Electronics GmbH 2017...
-
Page 70: History
History 11 11 History Date Version Change Description 2017-10-25 Release Version for carrier CRX06 Revision 1 2018-07-16 Changes to carrier CRX06-R2 2019-08-08 Generate LS1088A from LS1046A Table 11-1 Document history miriac SBC-LS1088A-TSN_User Manual V 2.1 70/70 © MicroSys Electronics GmbH 2017...
