Summary of Contents for Heinrichs KDSE

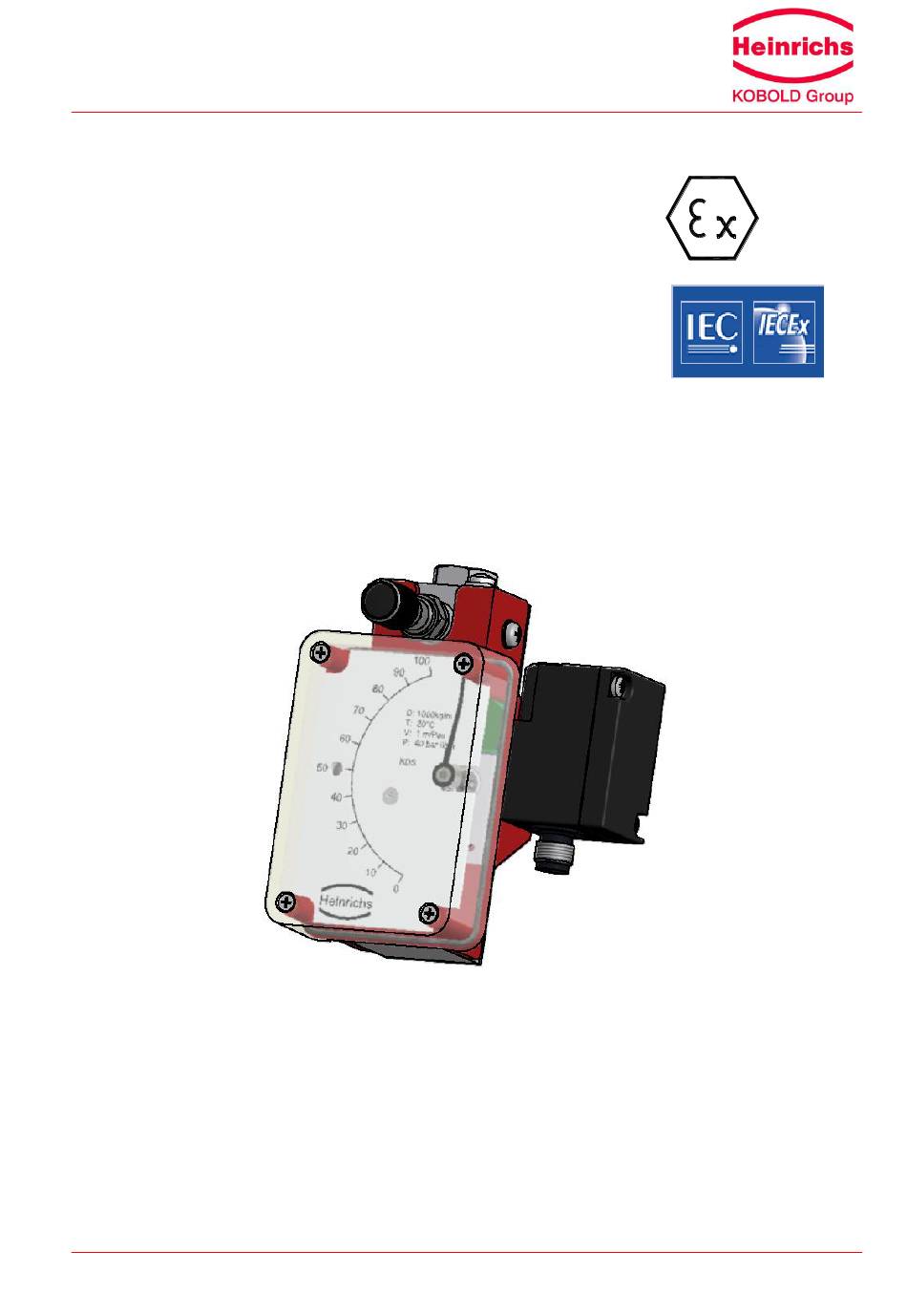

- Page 1 ATEX Electronic transmitter KDSE Additional Operating Manual Safety Instructions Please read the instructions carefully and store them in a safe place. Safety Instructions KDSE Page 1 of 11...
-
Page 2: Table Of Contents
Anglophone format: 1,000.00 Continental European format: 1.000,00 In the transmitter display, however, numbers that are four or more digits long are shown without separat- ing commas but with decimal points, as follows. Example: 1000.00 Page 2 of 11 Safety Instructions KDSE... -
Page 3: Introduction
III. Validity of this operating manual The present instructions apply to explosion-proof transmitter type KDSE as of year of construction August 2012 or later and serial number 290000 or bigger. These instruc- tions are supplementary operating manual for non-explosion proof meters. If you do not have a copy of the latter instructions, please request one from Heinrichs Messtechnik GmbH or download the instructions from our website. -
Page 4: Steps Prior To Operation
Heinrichs Messtechnik GmbH accepts no liability for any loss or damage of any kind arising from improper operation of any product, improper handling or use of any replacement part, or from external electrical or mechanical effects, overvoltage or lightning. -
Page 5: Identification
2. Identification Manufacturer Heinrichs Messtechnik GmbH Robert-Perthel-Straße 9 D-50739 Köln Phone: +49 221 49708-0 Fax: +49 221 49708-178 Internet: http://www.heinrichs.eu E-mail: info@heinrichs.eu Version / date Version: KDSE-EX_BA_00_EN.DOC Dated: August / 06 / 2012 Safety Instructions KDSE Page 5 of 11... -
Page 6: General Information About Explosion Protection
85 °C 185 °F Equipment Protection Level (EPL) Dust “Very high” level of protection “High” level of protection “Enhanced” level of protection Explosion protection designations [square brackets] refer to “Related electrical equipment or circuits.” Page 6 of 11 Safety Instructions KDSE... -
Page 7: Applications
The microprocessor controlled KDSE transmitter is used in flowmeters series KDS and BGK. The position of the float is transmitted to the pointer axle by means of a magnetic system. The KDSE measures the field of a magnet mounted on the pointers axle and generates an output current of 4 to 20 mA from it. The scale is generally non-linear and is linearized in the process with a minimum of 16 interpolation points. -
Page 8: Electrical Connection
650 mW Max. surface temperature for use in EPL Db 135 °C When used in potentially explosive dust atmospheres, the device must be cleaned regularly in order to avoid deposits exceeding 5 mm. Page 8 of 11 Safety Instructions KDSE... -
Page 9: Special Conditions For Safe Use
7. Special conditions for safe use Environmental influences on the electronics Environmental influences on the built-in transmitter type KDSE how the process temperature must be taken into account. See Chapter 14 of the general operating instructions for the meter type or KDS BGK. -
Page 10: Marking
Only devices with ex marking may be operated within the explosive atmospheres range. The electronic module is marked as follows: When the module is assembled in a variable area flow meter is additional a mark on the scale of the de- vice. Page 10 of 11 Safety Instructions KDSE... -
Page 11: Declaration Of Conformity
Name und Anschrift der Benannten Stelle (94/9/EG): / Name and adress of the notified body (94/9/EC): DEKRA EXAM GmbH Dinnendahlstraße 9 D-44809 Bochum Identifikationsnummer 0158 Köln, den 24.08.2012 i. A. Ignaz Urrigshardt (Explosionsschutzbeauftragter) Safety Instructions KDSE Page 11 of 11...
