UF8-R5J

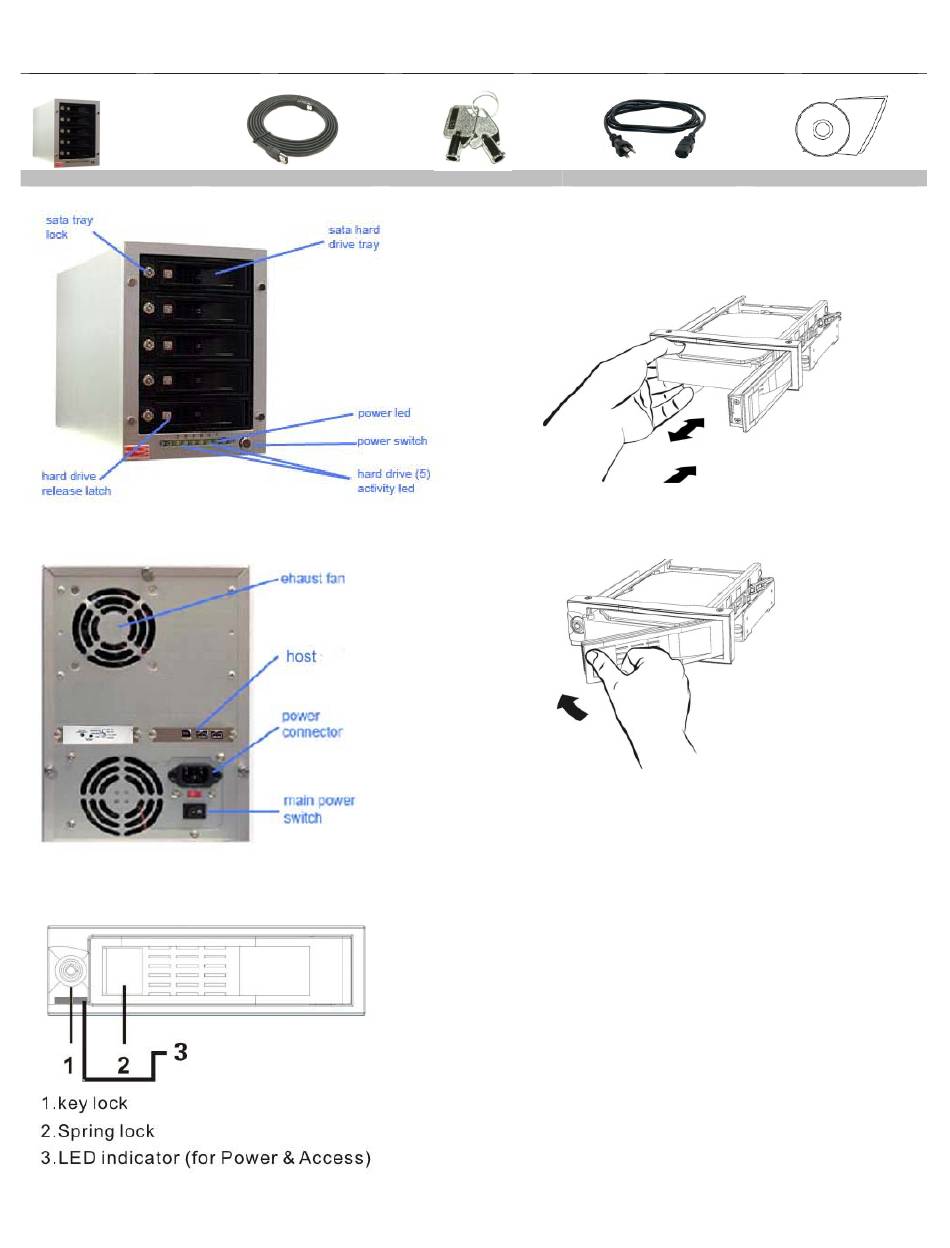

1.
Kit Includes
sBOXP‐TL
2. Overview
eSATA Cable
Rack Keys
Power Cord
3. Installation HDD
1. Pull the spring lock latch to open the tray and
slide in your hard drive.
2. Push the hard drive tray door in to secure the
hard drive.
3. Use the included keys to lock in the hard drives.
When system configures as RAID mode, it's
recommend to lock the tray door, to prevent
rebuilt due the HDD accidental remove
4. Connect USB or FireWire cable to the host
computer and the back of the UF8-R5J.
5. Plug AC cord and Turn on the power, The
default mode of our UF8-R5J is a JBOB Mode
6. Refer to following section to configure the
storage system as RAID5, 3, 10, CLONE,
SPAN... and other.
Overview
User's Manual
Rev 1.1
Advertisement
Related Manuals for Dat Optic UF8-R5J
Summary of Contents for Dat Optic UF8-R5J
- Page 1 UF8-R5J. 5. Plug AC cord and Turn on the power, The default mode of our UF8-R5J is a JBOB Mode 6. Refer to following section to configure the storage system as RAID5, 3, 10, CLONE,...
- Page 2 USB2.0 and FireWire host connection featuring tray-less and Direct-Air bottom fan UF8-R5J is designed to provide up to five (5) SATA drives in various configurations: RAID levels: 0/1/3/5/10/PM/Clone and JBOB (JBOD is default configuration). With an easy configuration scheme, our UF8-R5J can function DAT Optic, Inc.
