- Page 1 King Quilter Optional Rear Handlebar Installation Instructions 09/05/18 SewingMachinesPlus.com Page 1...
- Page 2 QM29005 Boxed Optional Rear Handlebar Package Contents: 1 qty QM29304 Optional Rear Handlebar Assembly with 4.3” display mounted to handlebar 2 qty QM10955 Screw, M6x16 SKB SS, bagged and wrapped on handle 1 qty QM23010 Cable, display to handlebar 1 qty QM23011 Cable, handlebar to machine Note: These instructions explain how to install the optional rear handlebar.
- Page 3 This USB connector normally has a black plug. This is to deter the user from using this connection to plug the handlebar into the machine. The black plug is removed to update the display or machine. SewingMachinesPlus.com Page 3...

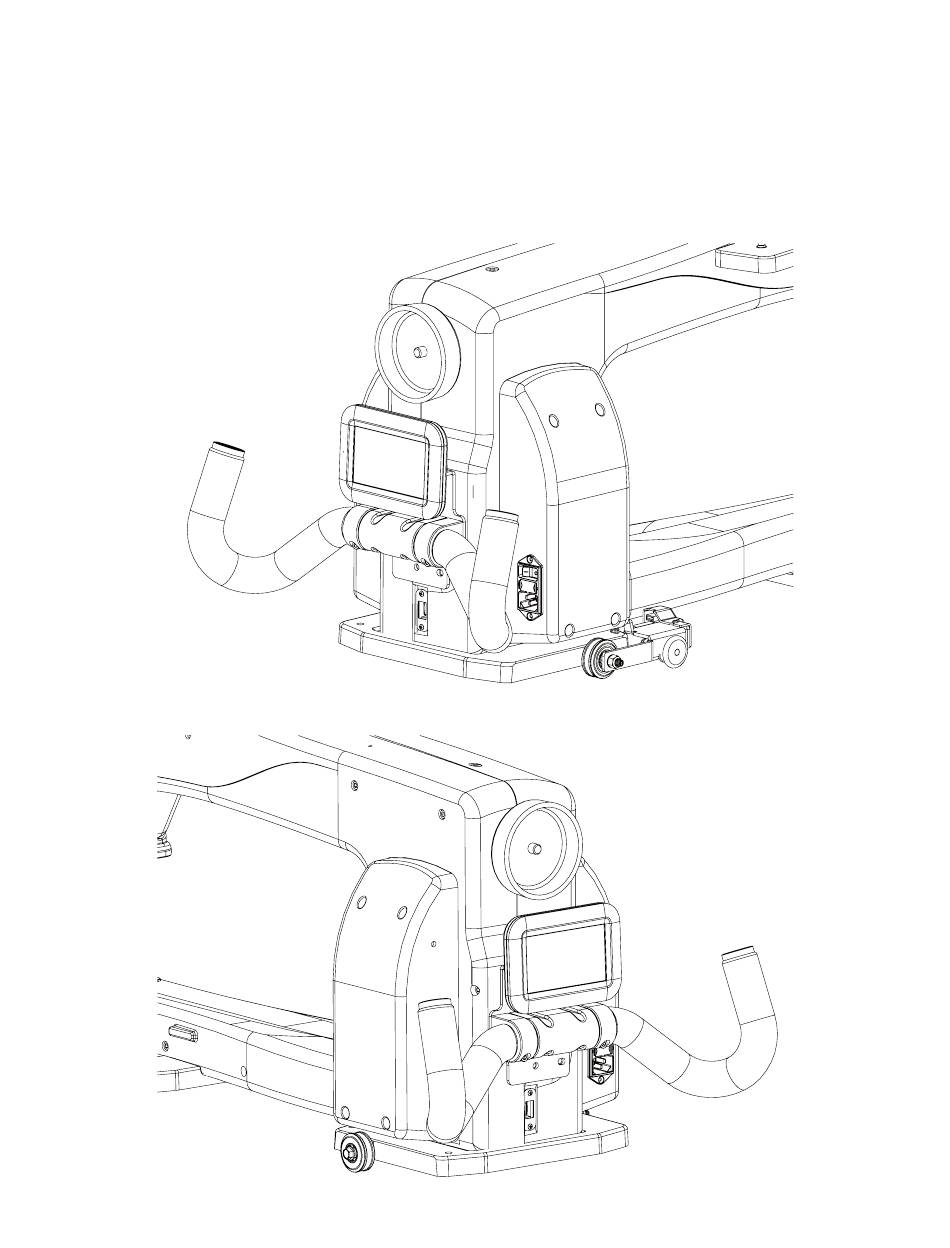

- Page 4 Optional Rear Handlebar Connections QM23010 Top cable: display to handlebar cable, mini QM23011 bottom cable: handlebar to machine cable, USB 90 degree to mini USB 90 degree. large USB connection, 90 degree to right angle. For optional rear handlebar functionality, please see the machine user manual.
