- Page 1 King Quilter Special Edition Front Handlebar Installation Instructions 09/05/18 SewingMachinesPlus.com Page 1...
- Page 2 QM29006 Boxed Special Edition Front Handlebar Package Contents: 1 qty QM29305 Special Edition front handlebar assembly with 7” front display mounted to handlebar 3 qty QM10955 Screw, M6x16 SKB SS, bagged and wrapped on handle 1 qty QM20043 Cable, display to handlebar...
- Page 3 This is to deter the user from using this connection to plug the handlebar into the machine. The black plug needs to be removed to update the display or machine. SewingMachinesPlus.com Page 3...

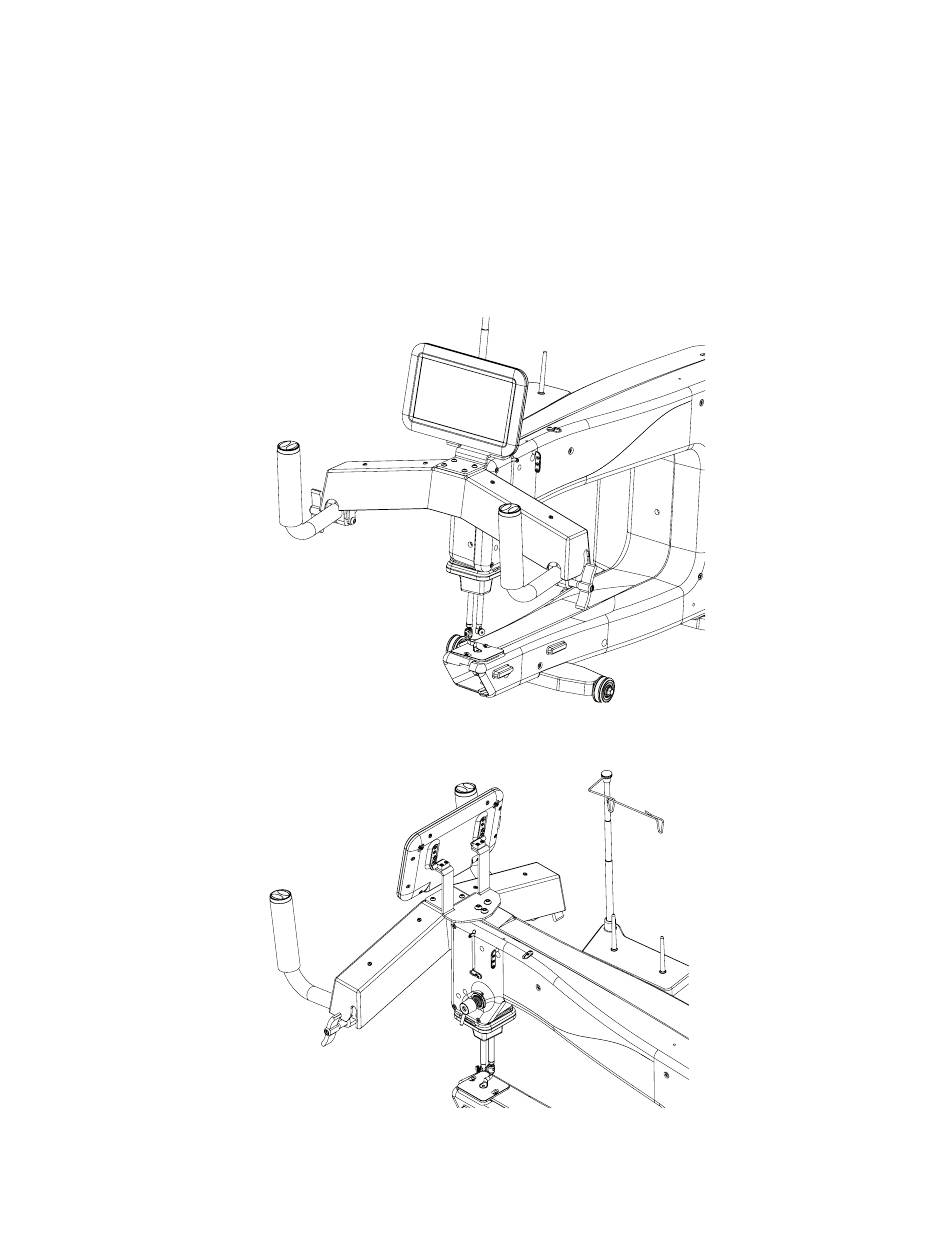

- Page 4 Front Handlebar to Machine Connection Note: The handlebars have two cables; one connects the display to the handlebar with small USB connections. The other cable connects the handlebar to the machine with large USB connections. 5. Connect the large USB cable from the handlebar to the machine.
- Page 5 Â Note: These instructions explain how to install the Special Edition front handlebars to the machine. For Special Edition handlebar functionality, please see the machine user manual. This plug to the bottom of the display. QM20043 Special Edition handlebar to display cable: SewingMachinesPlus.com Page 5...
