Topeak Shock 'n Roll User Manual

1
2
4
5
6
7
NOTE
• Before using Shock 'n Roll to inflate your suspension fork or rear shock,
check and do not exceed factory recommended pressures.
• Make sure to choose the correct Inflation Mode (Tire Mode or Shock Mode)
before engaging pump valve to the valve stem. DO NOT switch Inflation
Mode when the pump valve is still engaged on valve stem to avoid the
leakage of air.

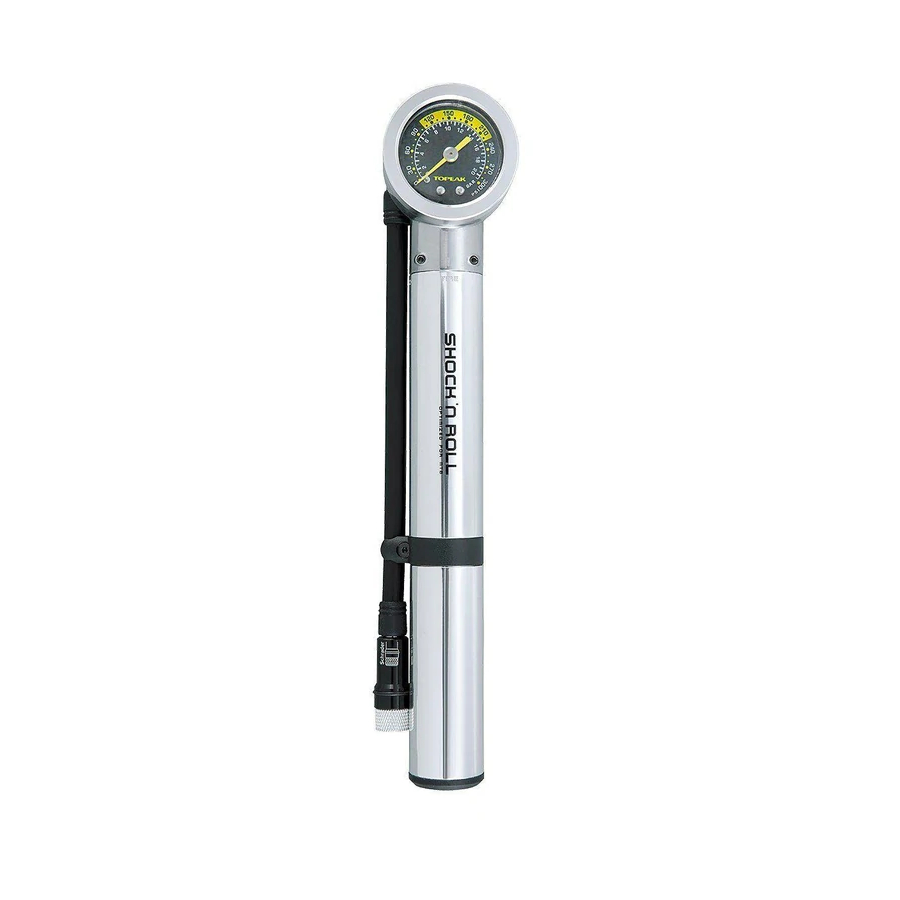

Shock 'n Roll
1
Air Release Button (works with Schrader Valve only)
2
Dial Gauge (0-300 psi/ 0-20.7 bar)
3 Rotating Hose
3
8
In ation Mode Selection
4
5
High polish Aluminum Barrel
6
6
Hose Dock
7
SmartHead
8
Vent Hole *
* NOTE of Vent Hole
A small amount of air pressure will escape from the vent hole
when inflating suspension fork or rear shock. It's normal and
won't affect inflation.
DO NOT block the vent
hole while inflating in
Shock Mode.
Doing so will adversely
affect inflation.
MTB TIRE mode
ThreadLock ts both Presta and Schrader valves
™
Schrader Mode
User's Guide
GB
SHOCK/FORK mode
Presta Mode
