Dakota Digital VFD3-55J-CJ Mounting Instructions

MAN#{650120}

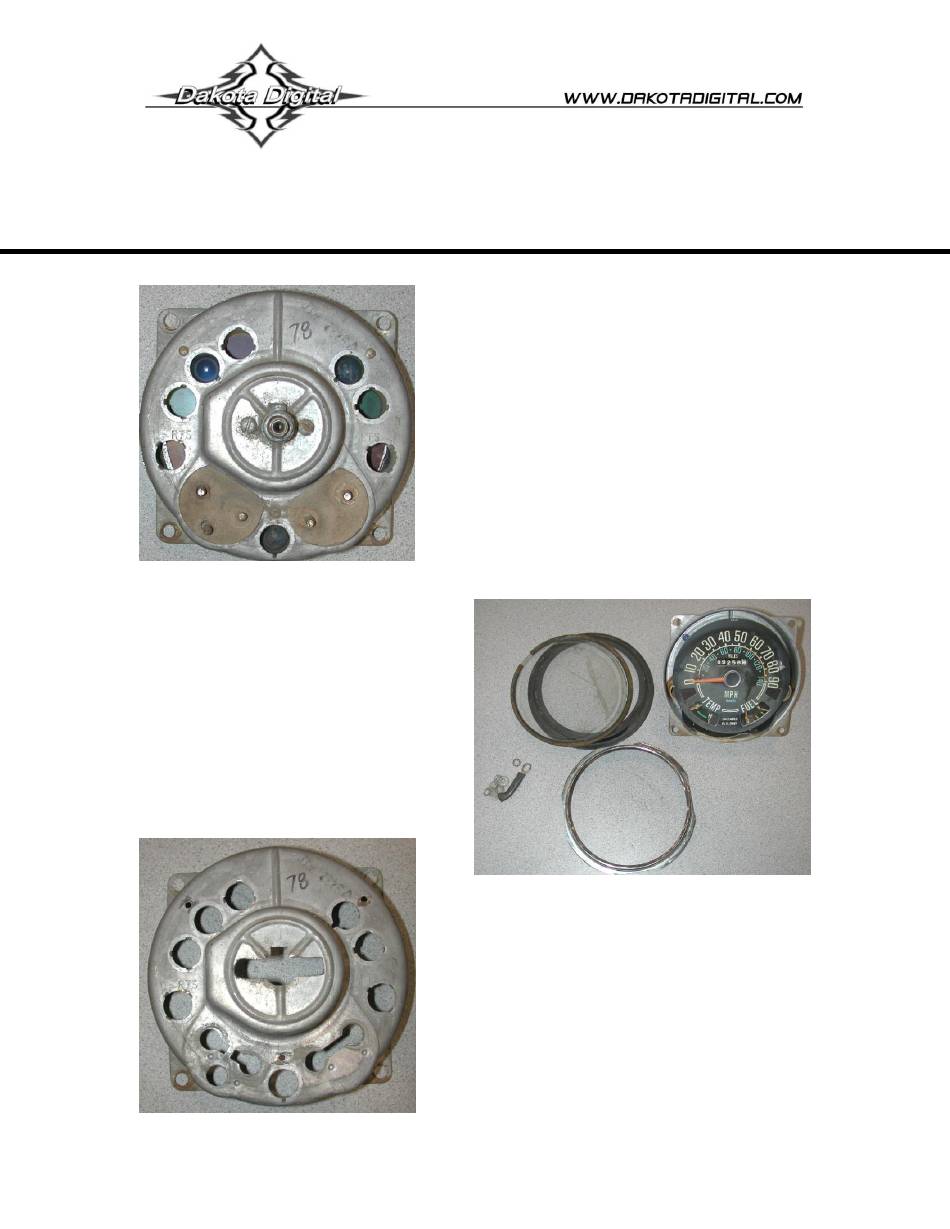

Remove the bezel from the can, remove
the separator plate, clear glass lens and o-
ring from the bezel. The speedometer will
be loose and pull out easily. The Temp
and Fuel gauges will be held in by the
cardboard insulators, they will need to be
pushed out.
Remove any protective tape from the lens
and install it into the bezel. Use a small
bead of silicone/RTV to hold the lens in
place. You can use a straight edge across
MOUNTING INSTRUCTIONS
VFD3-55J-CJ
55-86 Jeep CJ Installation Guide
Before disassembly, mark the 12 O'clock position
on the bezel for lens alignment.
With the housing removed from the vehicle,
uncrimp the bezel from the can. Remove the two
screws retaining the speedometer. Remove the
nuts retaining the Temp and Fuel gauges.
the
mo
unti
ng ear cutouts on the bezel or align the slot in the
top of the lens to the mark made on the bezel
earlier to ensure level installation of the lens.
