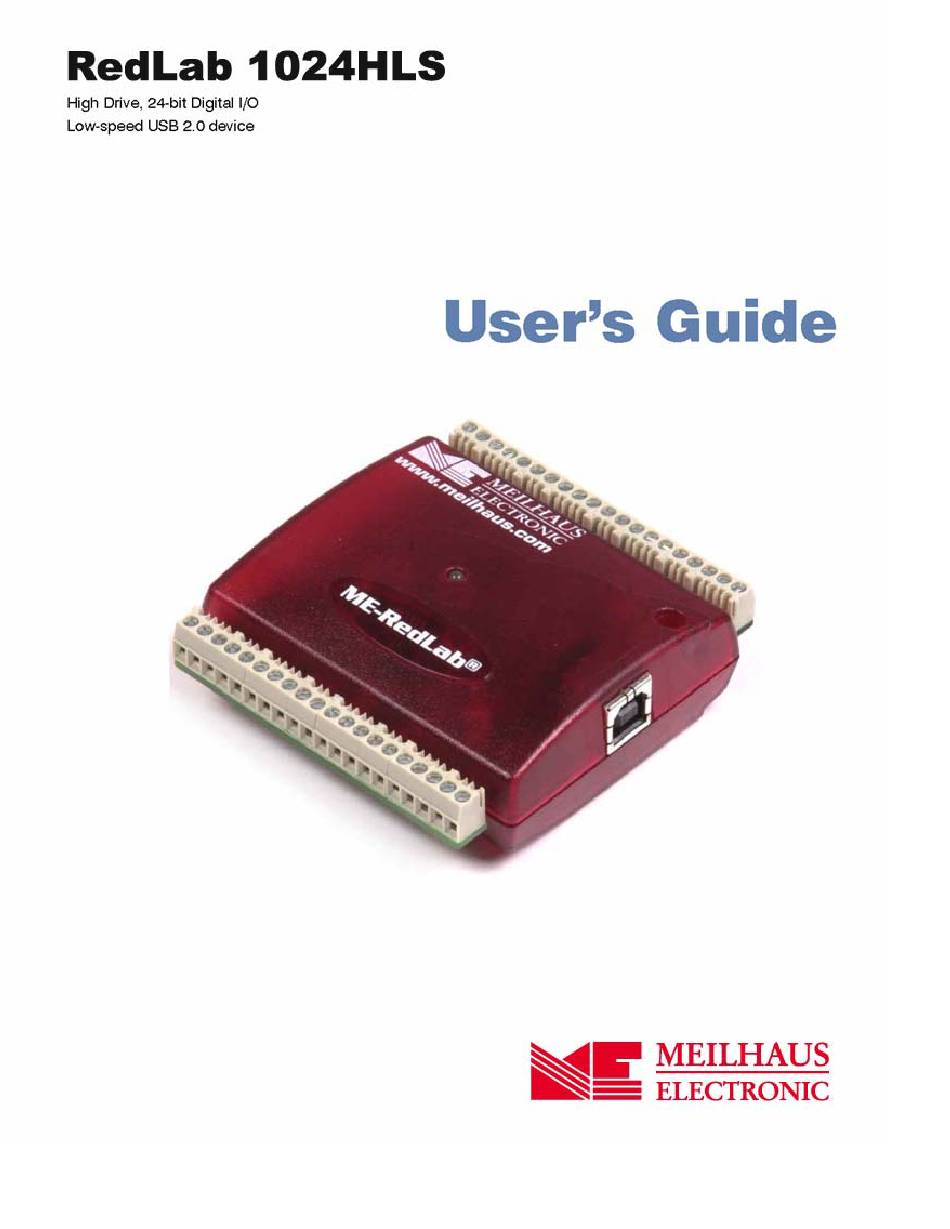

- Page 2 RedLab 1024HLS USB-based Digital I/O Module User's Guide Document Revision 1.3 E, January, 2008 © Copyright 2008, Meilhaus Electronic...
- Page 3 However, mistakes may not have been erased completely. For this reason, the firm Meilhaus Electronic GmbH feels obliged to point out that they cannot be take on neither any warranty (apart from the claims for warranty as agreed) nor legal responsibility or liability for consequences caused by incorrect instructions.
-
Page 4: Table Of Contents
Chapter 1 Introducing the RedLab 1024HLS .......................6 RedLab 1024HLS block diagram ........................7 Software features ..............................7 Connecting a RedLab 1024HLS to your computer is easy.................8 Chapter 2 Installing the RedLab 1024HLS ......................9 What comes with your RedLab 1024HLS shipment?..................9 Hardware ..................................9 Additional documentation.............................. -
Page 5: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the RedLab 1024HLS so that you get the most out of its USB digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 6: Introducing The Redlab 1024Hls
The 74FCT244 outputs are high-drive TTL, capable of sourcing 15 mA and sinking 64 mA. The RedLab 1024HLS is shown in Figure 1. All I/O connections are made to the screw terminals on each side of the RedLab 1024HLS. -
Page 7: Redlab 1024Hls Block Diagram
Software features For information on the features of InstaCal and the other software included with your RedLab 1024HLS, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF on our... -
Page 8: Connecting A Redlab 1024Hls To Your Computer Is Easy
Microsoft HID because it is a standard, and its performance delivers full control and maximizes data transfer rates for your RedLab 1024HLS. No third-party device driver is required. The RedLab 1024HLS is plug-and-play. There are no jumpers to position, DIP switches to set, or interrupts to configure. -
Page 9: Installing The Redlab 1024Hls
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available on our RedLab CD (root directory)). This booklet supplies a brief description of the software you received with your RedLab 1024HLS and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 10: Installing The Software
To connect the RedLab 1024HLS to your system, turn your computer on, and connect the USB cable to a USB port on your computer or to an external USB hub that is connected to your computer. The USB cable provides power and communication to the RedLab 1024HLS. - Page 11 If the LED turns off If the LED is lit but then turns off, the computer has lost communication with the RedLab 1024HLS. To restore communication, disconnect the USB cable from the computer, and then reconnect it. This should restore...
-
Page 12: Functional Details
The LED on the front of the housing indicates the communication status of the RedLab 1024HLS. It uses up to 5 mA of current and cannot be disabled. The table below explains the function of the RedLab 1024HLS LED. -
Page 13: Screw Terminal Wiring
Functional Details Screw terminal wiring The RedLab 1024HLS has two rows of screw terminals—one row on the top edge of the housing, and one row on the bottom edge. Each row has 20 connections. Pin numbers are identified here. Pin 20... -
Page 14: Main Connector And Pin Out
You can configure each digital port for either input or output. When configured for input, you can use the RedLab 1024HLS digital I/O terminals to detect the state of any TTL level input. Refer to the switch shown in Figure 5 and the schematic shown in Figure 6. If you set the... -
Page 15: Power Terminals
RedLab 1024HLS and possibly the computer. Once you start running applications with the RedLab 1024HLS, each DIO bit can draw up to 15 mA. The maximum amount of +5 V current available for external use, over and above that required by the RedLab 1024HLS, is the difference between the total current requirement of the RedLab 1024HLS (based on the application), and the allowed current draw of the computer platform. -
Page 16: Ground Terminals
Output (sink) current limits Each RedLab 1024HLS DIO output can sink up to 64 mA. For an individual line, this is not a problem. But if you were to apply this maximum load to all 24 DIO lines, you may damage the RedLab 1024HLS because the total amount of current is well over the maximum for the USB supply. - Page 17 RedLab 1024HLS User's Guide Functional Details To configure a pull-up connection for a specific port, wire the pull-up/pull-down terminal to a USB +5 V terminal. Pin 15 Pin 14 Port A Pull-up/Pull-down USB +5 V Figure 7. Pull-up connection for Port A To configure a pull-down connection for a specific port, wire the pull-up/pull-down terminal to a terminal.
- Page 18 RedLab 1024HLS User's Guide Functional Details USB +5 V DIO 0 (Port B0) Pull-up DIO 1 (Port B1) Pin 13 DIO 2 (Port B2) DIO 3 (Port B3) Port B DIO 4 (Port B4) DIO 5 (Port B5) DIO 6 (Port B6)
-
Page 19: Specifications
If your laptop is constrained to the 100 mA maximum a RedLab 1024HLS is not guaranteed to work. In order to use the product you will need to purchase a self-powered hub. -
Page 20: Counter Section
Bus-powered hubs are allowed to provide downstream USB power as low as 4.4 V. Although your Note 6: RedLab 1024HLS will typically function at this 4.4 V minimum, guaranteed performance requires a minimum power supply voltage of 4.75 V. All self-powered and root port hubs will meet this 4.75 V minimum. -
Page 21: General
RedLab 1024HLS User's Guide Specifications General Table 4. General specifications Parameter Conditions Specification USB controller clock Error 25 °C ±30 ppm max 0 to 70 °C ±50 ppm max Device type USB 1.1 low-speed Device compatibility USB 1.1, USB 2.0 Environmental Table 5. - Page 22 RedLab 1024HLS User's Guide Specifications Signal Name Signal Name Port B6 Port B7...
- Page 23 Meilhaus Electronic GmbH Fischerstrasse 2 D-82178 Puchheim, Germany Phone: +49 (0)89 89 01 66-0 Fax: +49 (0)89 89 01 66-77 E-Mail: sales@meilhaus.com http://www.meilhaus.com...
