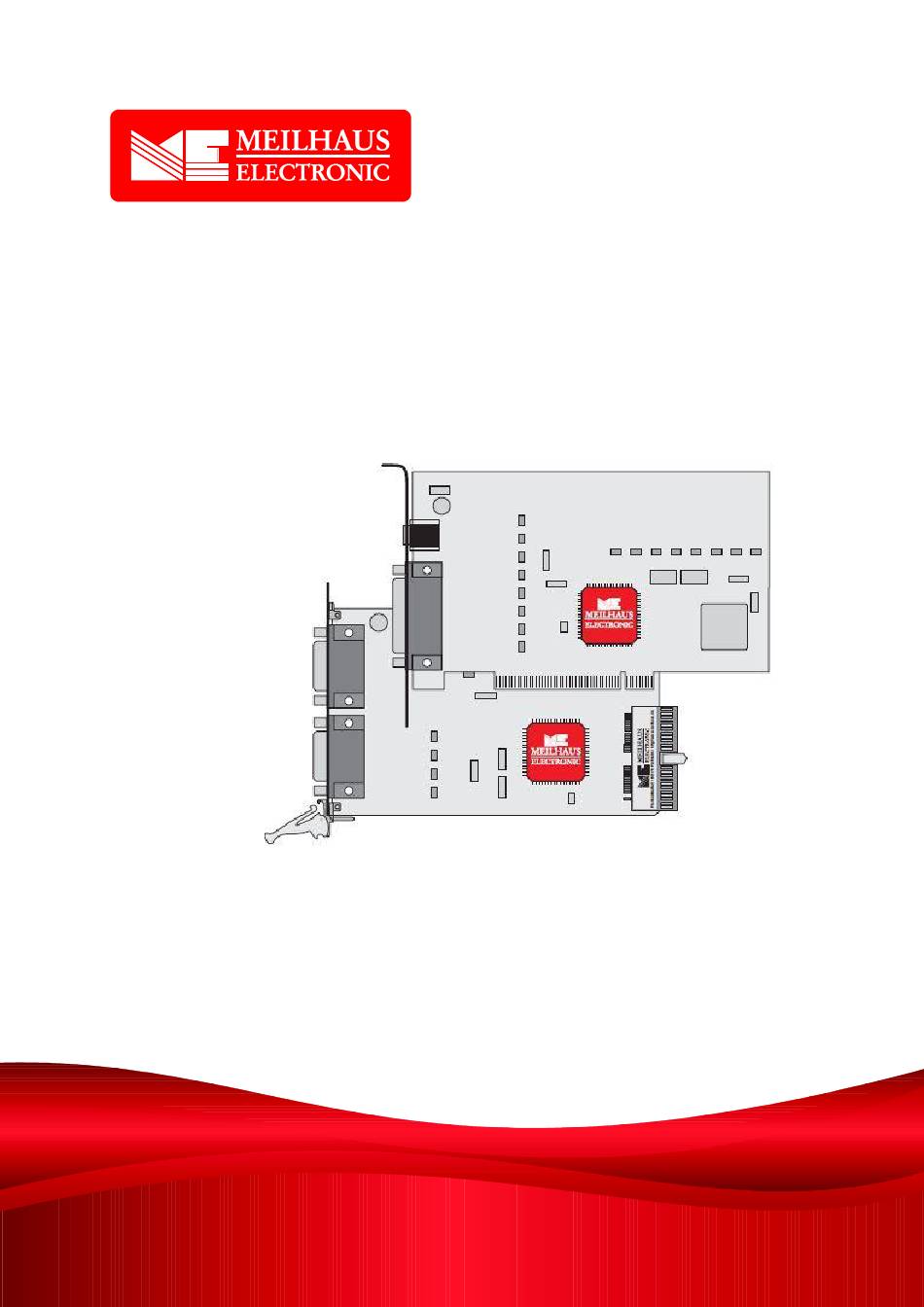

- Page 1 Meilhaus Electronic Manual ME-94, ME-95, ME-96 6.0E (PCI- and CompactPCI-Versions) Opto-Isolated Digital-I/O Boards...
- Page 2 Electronic assumes no responsibility for its use, any infringements of patents or other rights of third parties which may result from use of this manual or the product. Meilhaus Electronic assumes no responsibility for any problems or damage which may result from errors or omissions.
-
Page 3: Table Of Contents
Content Introduction ............4 Important Notes ............... 4 1.1.1 Use in Accordance with the Requirements ....... 4 1.1.2 Improper Application ............5 1.1.3 Unforeseeable Misapplications ........5 Package Contents ............. 6 Features ................6 System Requirements ............7 Software Support ............. 7 Starting up ............ -
Page 4: Introduction
Introduction Valued customer, Thank you for purchasing this device from Meilhaus Electronic. You have chosen an innovative high technology product that left our premises in a fully functional and new condition. Please take the time to carefully examine the contents of the package for any loss or damage that may have occurred during shipping. -
Page 5: Improper Application
Note that the computer must be powered up prior to connecting signals by the external wiring of the board. As a basic principle, all connections to the board should only be made or removed in a powered-down state of all components. ... -
Page 6: Package Contents
ME-94 and ME-95: one DB25 female connector ME-96: two DB15 female connectors Features Model Overview Model IRQ Inputs Outputs ME-94 PCI 16 opto-isolated** (24 ME-94 cPCI ME-95 PCI 16 opto-isolated (24 V) ME-95 cPCI ME-96 PCI 8 opto-isolated** (24 V) -
Page 7: System Requirements
System Requirements The ME-series may be installed into any PC (Intel® Pentium® processor) with a free standard PCI- and CompactPCI-slot (32 bit, 33 MHz, 5 V). The board is supported by the Meilhaus Electronic Intelligent Driver System (ME-iDS). Software Support The ME-series is supported by the Meilhaus Electronic Intelligent Driver System (ME-iDS). -
Page 8: Starting Up
First choose a directory on your computer (e.g. C:\Temp\Meilhaus\ME-iDS). Use the Meilhaus Electronic Intelligent Driver System (ME-iDS) for programming your new data acquisition hardware. For installation and operation of the driver system, please follow the documentation in electronic form included with the software package. -
Page 9: Hardware
Hardware Block Diagrams... -
Page 10: Digital I/O
Digital I/O The inputs and outputs of the ME-9x series are electrically isolated by optocouplers. There is no electrical connection between the hardware connected to the board and the PC. The inputs and outputs are designed for 24 V level used in control engineering. -
Page 11: Opto-Isolated Outputs
3.2.3 Opto-Isolated Outputs The opto-isolated output channels of the ME-95 and ME-96 provide special output drivers. After power-up, the outputs are set to a defined, high-impedance state. A reference to external ground (ext. GND) must be done. The output current may not exceed I 100 mA per channel. -
Page 12: Programming
Programming For programming the device please use the Meilhaus Electronic Intelligent Driver System (ME-iDS) included in your package. The ME-iDS is a unique driver system covering different devices and operating systems. It supports Windows XP and higher and contains a universal function library (API) for all common programming languages (the extent of the current software support can be found in the README-files of the ME-iDS). - Page 13 Simple Input/Output The input/output of single digital values is done in operation mode „Single“. Each digital port is accessed as a unique subdevice of type ME_TYPE_D resp. ME_TYPE_DO, subtype ME_SUB- TYPE_SINGLE. Note the order of operation as described in the ME- iDS manual.
-
Page 14: Appendix
Appendix Specification PCI Interface Bus system Standard PCI (32 bit, 33 MHz, 5 V) (depending on model) CompactPCI (32 bit, 33 MHz, 5 V) Plug&Play automatic assignment of resources Digital opto-isolated Inputs (ME-94 and ME-96) Number ME-94: 16; ME-96: 8 PIO device 8255-compatible Input voltage... - Page 15 General Information Power consumption at ME-94 PCI/cPCI: typ. 250 mA +5 V ME-95 PCI/cPCI: typ. 400 mA ME-96 PCI/cPCI: typ. 380 mA Fuse for external F1: 1,6 AT/250 V (only ME-95, ME-96) power Physical size (mm) 100 x 160 (cPCI models)
-
Page 16: B Pinout
Pinout ME-94 *Pin not supported by ME-iDS... -
Page 17: B2 Me-95
ME-95... -
Page 18: B3 Me-96
ME-96 Output Port of the ME-96 (top) Input Port of the ME-96 (bottom) *Pin not supported by ME-iDS. -
Page 19: B4 External Power Connector
External Power Connector …for the optocouplers (only standard PCI models) -
Page 20: C Accessories
Accessories We recommend to use high-quality connector cables with single- shielded lines per channel. For further accessories please refer to the current Meilhaus Electronic catalog and the internet: www.meilhaus.de/en/pc-boards/accessories/... -
Page 21: D Technical Questions
Download-Server and Driver Update: To download current driver versions for Meilhaus Electronic devices as well as manuals in PDF format, please go to: www.meilhaus.org/driver Service Department with RMA Process: In case you need to return a board for repair purposes, we strongly... -
Page 22: E Index
Index Improper Application Accessories Appendix ME-94 ME-95 ME-96 Block Diagrams Opto-Isolated Inputs Opto-Isolated Outputs Digital I/O Digital-I/O Section Package Contents Pinout Programming External Power Connector External Power Supply Simple Input/Output Software Installation Features Software Support Specifications Starting up System Requirements Hardware Hotline Technical Questions...
