Summary of Contents for Transforming Technologies Ptec IN5120

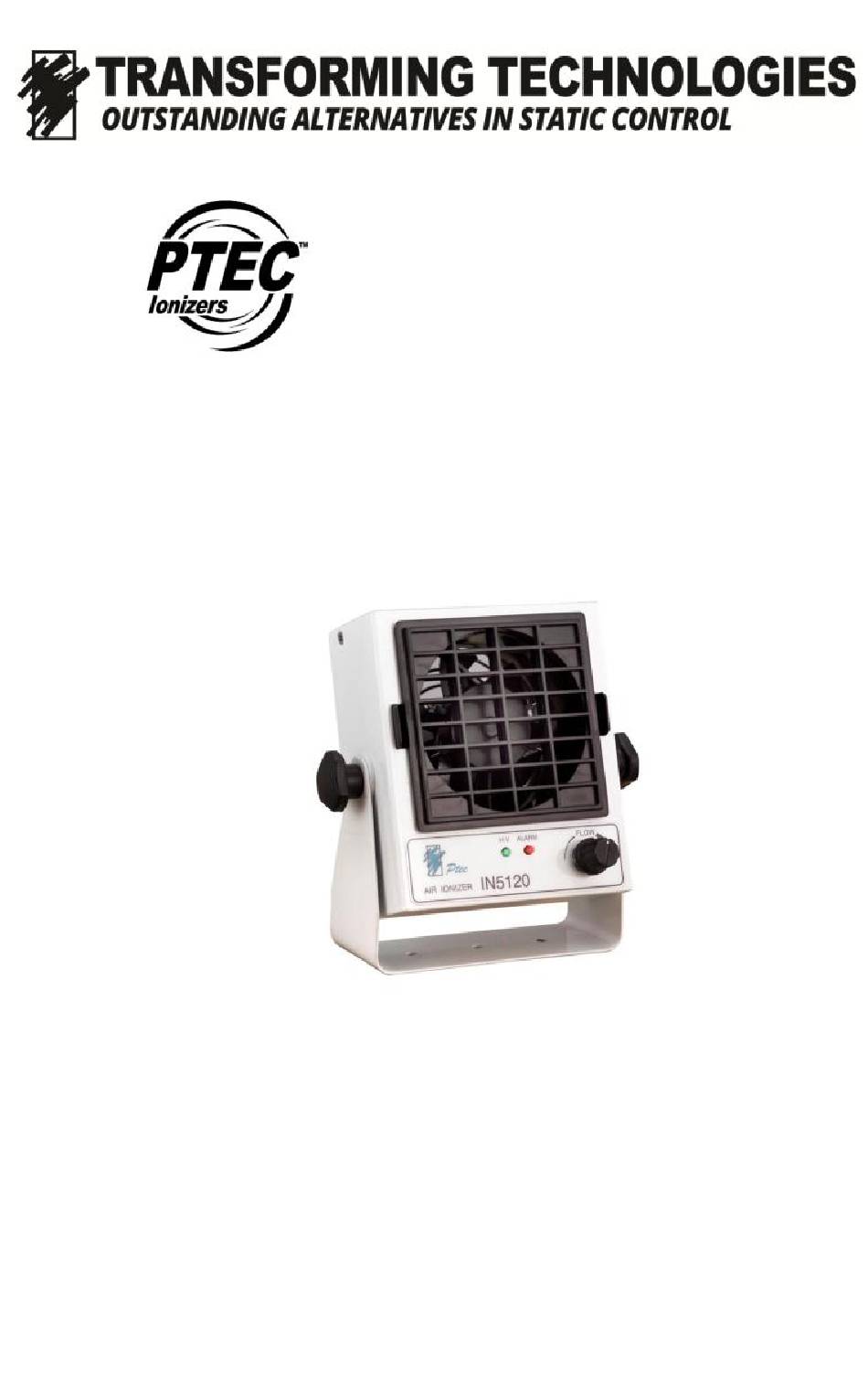

- Page 1 Static Eliminators IN-Tool Ionizer Model IN5120 Instruction Manual...
-
Page 2: Table Of Contents
Contents Description Model IN5120 About Ptec™ Technology Features Power Requirements Operation and Use Environmental Conditions Set-up and Placement Power Connection Maintenance Periodic Maintenance Cleaning Exterior Cleaning Emitter Points Emitter Point Replacement Bracket Removal Service Troubleshooting IN5120A Signal Output Specifications Service and Warranty IN5120 Line Drawing... -
Page 3: Description
Description In-tool Ionizing Blower Model IN5120 The Model IN5120 68KHz AC in-tool air ionizer is a small, efficient static elimination device with variable fan speed for protecting electronic components and general static protection. Using AC corona technology, to make the air more conductive, Ptec™ ionizers produce a bal- anced stream of positive and negative air ions that never need calibration. -
Page 4: Power Requirements
The rear panel of the ionizer has the 24 VDC power input connector and a grounding point. Physically small and light. Rapidly decays static charges. Excellent ion balance and ionization performance. Ionization (green) and HV alarm (red) lights. ... -
Page 5: Set-Up And Placement
Set-up and Placement Caution Do not use this ionizer in an explosive environ- ment! Corona ionizers produce a weak plasma that can cause ignition in explosive environ- ments. Use the IN5120 in-tool ionizing blower in proximity to a static sensitive area or object. The unit can be set on the workstation or mounted to a structure, using the u- shaped mounting bracket and hardware. -
Page 6: Maintenance
Maintenance Periodic Maintenance The only serviceable parts inside the ionizer are Caution the replaceable emitter points. Any unauthor- ized service will void the warranty and may result in additional repair fees. The only regular maintenance required for the IN5120 is the periodic cleaning of the emitter points and ionizer grill. -
Page 7: Emitter Point Replacement
6. Make sure the emitter points are dry before powering the ionizer again. Emitter Point Replacement The IN5120 uses 10 tungsten alloy precision etched emitter needles. Contact Transforming Technologies for in- formation about ordering replacement emitters. The part number for emitters is listed below: Replacement part... -
Page 8: Bracket Removal
Ptec™ ionizers are reliable products with a long ser- vice life. If you feel your unit is not operating properly, turn off the unit and disconnect the power cord. Contact Transforming Technologies’ Technical Support for repair assistance. Troubleshooting The information below provides a reference for prob- lems that may arise with your IN5120 in-tool ionizing blower. -
Page 9: In5120A Signal Output
If you have other problems not covered below, please con- tact Transforming Technologies’ Technical Support for re- pair assistance Problem Causes Balance outside Emitter points are dirty, damaged specifications. or not straight. Clean or replace Alarm light activated... -
Page 10: Service And Warranty
Specifications 24 VDC, 12W Power input unfused, 0.5A or 1.0A max. Power outlet AC, 68KHz Ion Emission +/- 5 volts, typical offset Balance 1000V - 100V < 3 seconds at 1 foot Decay Time 66-78°F (19-25°C) Temperature 20-60% RH (non-condensing) Humidity 49 CFM, typical, high speed Airflow... -
Page 11: In5120 Line Drawing
IN5120 Line Drawing... - Page 12 Transform- ing Technologies. The company does not warrant damage due to misuse, neglect, alteration or accident. In no event shall Transforming Technologies be liable for collateral or consequential damages. To receive service under warranty, please contact Transforming Technologies Technical Support.
