Quick Guide
Specification
BD-PON-P2
Power Meter
Mearsuring Range(dBm)
Calibrated wavelength
1310nm(Burst)
Sensor type
linearity
1490nm wave band>40dB
Isolation
1550nm wave band>40dB
-30dBm~+16dBm -40dBm~+16dBm
Insertion Loss(dB)
Spectral Width(nm)
1260~1360
Accuracy(dB)
Threshold
Data stroage
Working Temp
Humidity
Adapter
Communicating port
Power Supply
External power
Dimension
Weight
1310nm(CW)
1490(nm)
InGaAS
±0.2dB@1550nm≥-40dBm
1310nmwave
band>40dB
1550nmwave
band>30dB
-50dBm~+16dBm
-50dBm~+23dBm
1.5
1480~1500
0.5dB±1nW@1550nm
10sets，set by upper-computer
900 sets
-10°C ~ +50°C
0% ~ 95%RH
SC/PC（ST/PC、FC/PC customizable）
USB port
*AAA battery
2
AC adapter DC6V/1A（optional）
L*W*H 170mm*76mm*45mm
Approximate 400g
1550(nm)
1310nmwave
band>40dB
1490nm wave
band>30dB
1539~1565
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Baudcom BD-PON-P2
Summary of Contents for Baudcom BD-PON-P2

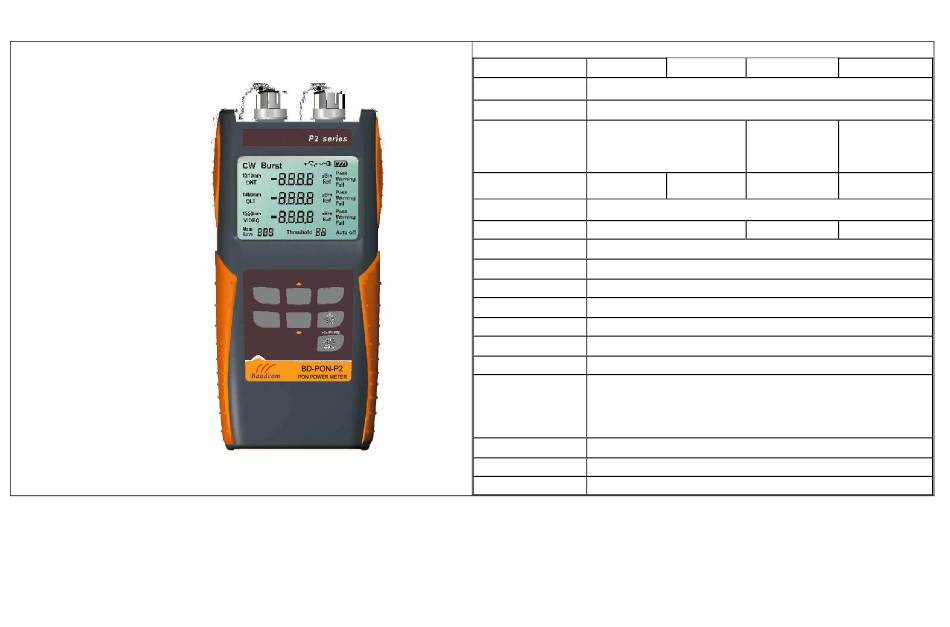

- Page 1 Specification BD-PON-P2 Calibrated wavelength 1310nm(Burst) 1310nm(CW) 1490(nm) 1550(nm) Power Meter Sensor type InGaAS linearity ±0.2dB@1550nm≥-40dBm 1310nmwave 1310nmwave 1490nm wave band>40dB band>40dB band>40dB Isolation 1550nm wave band>40dB 1550nmwave 1490nm wave band>30dB band>30dB Mearsuring Range(dBm) -30dBm~+16dBm -40dBm~+16dBm -50dBm~+16dBm -50dBm~+23dBm Insertion Loss(dB) Spectral Width(nm)
- Page 2 ONU and OLT/video,which support CW/brust upstream detection at 1310nm and downstream at 1490/11550nm.It can directly indicate the test,pass,warning or failure status of optical network by threshold setting. BD-PON-P2 is the ideal tool for PON setting and maintenance.
- Page 3 Port Indication： Fault Reason Solution Remark No batteries or external fill batteries connect Slove by yourself power external power Batteries have no power Replace batteries or charge Slove by yourself rechargeable batteries Can't turn on meter Batteries are not in the Reconnect batteries in a right Slove by yourself proper position...
- Page 4 Common Maintenance： 1. Please shut off and cap protecting cover for fiber port after use then keep it in ventilated and dry place. 2. If you don't use this meter for a long time please take out the batteries in order to avoid the corruption of battery.
