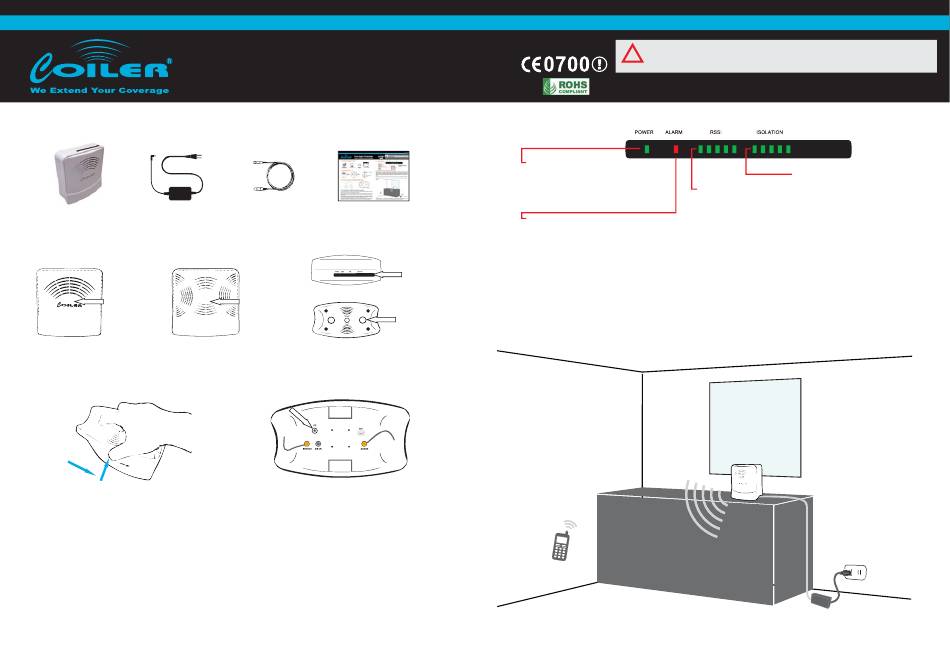

Coiler Pisces Quick Installation Manual

1. Standard Package Contents

Main Repeater Unit Power Supply Adaptor
with Built-in Antennas

2. Parts Identification

Built-in
Service Antenna
Front Back

3. Connecting Power to PS Digital ICS Repeater

Graph 1
(1) Turn the main repeater unit upside down so base cover is accessible.
(2) Insert index finger into one of the round openings on one side, pull first towards the center of the
repeater, then lift up away from the repeater (see graph 1).
(3) Locate the DC power opening (labeled DC) and insert the 90° power cord plug into the
opening. Make sure the power supply adapter cable sits over the rounded groove on the side of
the repeater.
(4) Put the base cover back in place. Be sure to have all four hinges on the inside edge of the base.
Then secure the base cover by pushing down until all four hinges snap in place.
(5) Place the PS Digital ICS Repeater next to a window (the side with Coiler logo should be facing
the desired coverage area). Then plug in the power cable to a power outlet (refer to Graph 3).
Pisces Digital ICS Repeater
QUICK INSTALLATION GUIDE
USB Cable for Quick Installation Guide
OMT Access
Top
Built-in
Donor Antenna
Bottom
Graph 2

4. LED Indications

Green Power LED
Constantly lid:
when in repeater is in use.
Blinking:
3 seconds after repeater is not in use
(standby mode).
Red Alarm LED
Off: normal.
On: abnormal.

5. Begin Using the PS Digital ICS Repeater

Once powered on, simply check the RSSI level on LED display. For best performance, Coiler
LED Display
recommend RSSI of -80dBm or better (3 LEDs). Isolation LED is not relavant when no external
antenna is in use. If multiple windows are available, then best placement location would be where
RSSI signal is strongest (more RSSI LED the better). The PS Digital ICS Repeater is now ready to be
used.
Base Cover
Note: Please do not block the signal by placing any object in front of the PS Digital ICS repeater.
Graph 3
*Pisces has ability to adjust the service frequencies. Download the full Pisces manual from
Customer Portal on www.coiler.com.tw for full OMT operation instructions and details.
Please read this guide before installing the PS Digital ICS Repeater
For your safety, please beware of power lines at all times during the installation. Please make sure to take
!
appropriate safety measures for protection. Contact with high-voltage power lines can cause death and/or serious
injury. Please handle the equipment with care. Mechanical shock due to dropping or mishandling can permanently
Warning damage sensitive RF components.
The PS Digital ICS Repeater is designed to improve cell phone signal coverage and enhance reception in indoor areas where
mobile signal is limited or compromised due to construction structures or natural obstacles. The PS has been optimized to provide
mobile signal coverage and improve data transmission in homes, offices, conference rooms, shops and other small indoor areas.
Green RSSI LED
0 LED: <-95dBm
1 LED: -94 ~ -89dBm
2 LED: -88 ~ -83dBm
3 LED: -82 ~ -77dBm
4 LED: -76 ~ -71dBm
5 LED: >-70dBm
Ver A1 July 2012
Green Isolation LED
Only relevant when external antenna is
in use. Please refer to next page for
more details.
