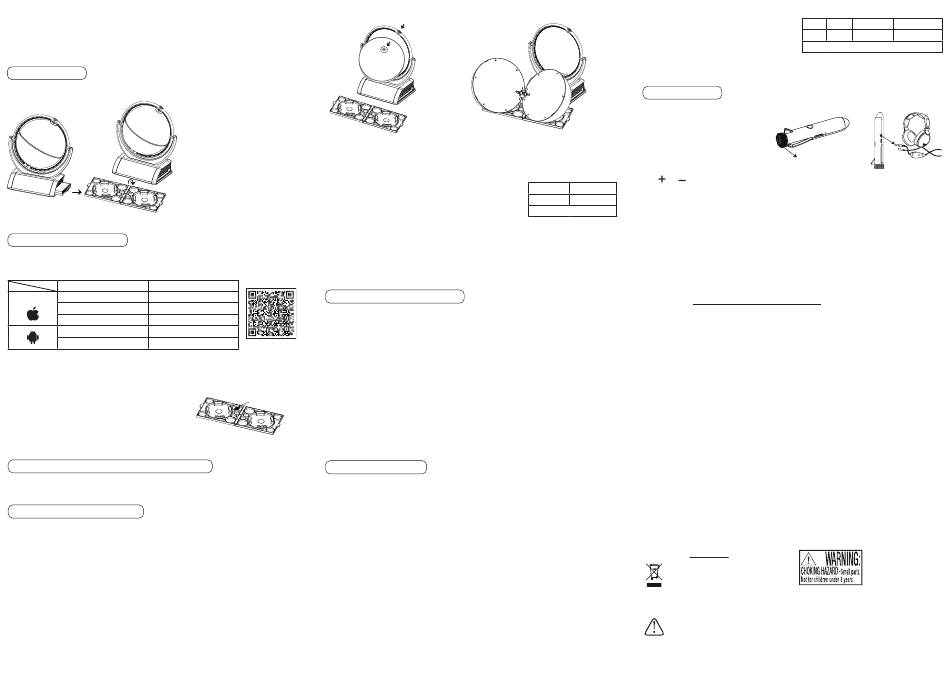

Oregon Scientific SmartGlobe Explorer AR User Manual page 2

Amazing Facts
To explore amazing facts in our world, use the tip of the Smart Pen to touch Amazing Facts on the activity panel
(located on the base), and then use the Smart Pen to point to a place on the globe.
World News
Each time you select the World News icon, you will hear up-to-date world news.
Inner Activities
To use the inner activities:
1. Slide out the drawer from side of the globe's base. Open the drawer box and put on a flat surface.
Augmented Reality App
To activate the Augmented Reality function, download and install the App on your Smart Phone or Tablet PC. This
App supports both iOS and Android system.
System requirements
Min. Configuration Recommended Configuration
iOS 8.0+ iOS 9.0+
1GB RAM 1GB Storage Space 2GB RAM 1GB Storage Space
iPad 4, iPhone 5s iPhone 6, iPad Air 2 and above
4.5+ OpenGL ES2.0 5.0+ OpenGL ES2.0
1GB RAM 1GB Storage Space 2GB RAM 1GB Storage Space
Install and Activate the App
1. Scan the QR code beside or on the lower back of the package box
OR search Smart Globe in Apple App Store or Google Play to
download the App.
2. Open the Smart Globe App, register an account and sign in.
3. On the operation page of the App, scan the activating QR code
on the inner corner of the drawer to activate the Smart Globe App.
Note: The activating QR code is available for activating
the App on five smart devices.
How to Renew Your Internet Subscription
You will be reminded to renew your subscription 30 days before it expires.
Press the 'Renew now' button and you will be directed to a website through which you can renew your
subscription.
Cleaning and Maintenance
Your Smart Pen and all cables should be checked regularly for damage to avoid the danger of an electric shock.
Do not use them if they are damaged.
Always disconnect the power supply before cleaning. Do not attempt to dismantle any part of the product, and only
use a soft, dry cloth for cleaning.
Do not get SmartGlobe™ ExplorerAR or any of its parts wet, and be sure that your hands and the tip of the Smart Pen
are clean before touching the globe surface; otherwise, the Smart Pen may fail to read information from the Globe.
P/N: 300103913-00001-10 REV1.0
2/2
2. Press the button on the outer frame
and carefully take out the globe.
Put back the globe after using:
Put the downside of the globe to the bottom holder of the frame first, then press the upper latch on the upside of the
globe and release to the upper holder.
Earth Interior
View the earth interior, such as Crust, Upper Mantle, Outer Core and
Inner Core on the panel. To learn more information of the earth interior,
use the tip of the Smart Pen to touch one of the categories on the activity
8
panel, then touch one layer.
Use the App
1. After installing the App successfully, get in the App by ticking the Moving Globe Button in the middle of the App
and wait for loading.
2. Keep your device about 30 cm away from the Globe and let the App scan the Globe automatically.
3. To start the activities, select the Activity icons at the lower right hand corner.
Register Your SmartPen™
Your new SmartGlobe™ is not only ready to be used right out of the box, but can also be customized and can
receive new educational content updated by Oregon Scientific editors.
Note: It is recommended that you register your Smart Pen in order to download the latest information for your
Globe.
System Requirements for Computer
• Windows 7/8/10
• USB port
• 1 GHz or above 32-bit (x86) processor
• Internet Access
• 512 MB RAM or above
Activating code
• 256 MB of available hard disk space
• Also compatible with Mac (Mac OS 10.5 or above)
11
Contact Information
As this product is updateable, prompts, instructions and game functions may change as we continue to improve
SmartGlobe™ Explorer AR and its user interface. We would be happy to receive your comments and
suggestions, and appreciate your feedback. Feel free to contact us at smartglobe.us@oregonscientific.com.
Note: All SmartGlobe™ Explorer AR data is for reference only, and is not intended to be used as a source for
academic or professional research.
Service: http://us.oregonscientific.com/service
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
14
3. Open the globe, and put it on the box.
Layer Thickness
State Did you know?
EARTH INTERIOR
Oregon Scientific, Inc.
Centerpointe CENTER,
5 Centerpointe DRIVE, SUITE 400
LAKE OSWEGO, OREGON 97035
Hotline : 971-204-0378
Website: http://us.oregonscientific.com
Solar System
View 9 objects within the Solar System on this panel: the Sun,
Mercury, Venus, Earth, Mars, Jupiter, Saturn, Uranus and
Neptune. To learn more information about the objects,
use the tip of the Smart Pen to touch one of the
categories on the activity panel, then touch one object.
Touch Games to play a find and answer question game
with 2 levels within limited time on this panel.
Sound Options
Your SmartGlobe™ Explorer AR can be used in two sound modes:
Built-in speaker
With the built-in speaker of the Smart Pen.
Headphones (not included)
With headphones connected to the Smart Pen.
Speaker
Volume Control
Press and to adjust sound volume.
Note: Purchasing multiple Smart Pens allows multiple users to learn with one SmartGlobe™ Explorer AR at one
time; we recommend using headphones in this case.
9
SmartGlobe™ Download Services
Upon registration, SmartGlobe™ Explorer AR users are allowed to use Internet content download services
free for one year from the time they're first registered. One year of free service is contingent update Smart Pen
registration after purchase.
SmartGlobe™ PC Software
Before connecting the Smart Pen to your PC or Mac OS 10.5 or above, please connect your PC or Mac to the
Internet and install the SmartGlobe™ PC Software.
1) Download it at: http://smartglobe.oregonscientific.com/SG338R/.
2) Follow the instructions to install the program.
3) After the installation process, connect the Smart Pen to your computer using the USB cable provided.
Note: Make sure the Smart Pen is ON before connecting computer to update.
Register your Smart Pen
1) After connecting your Smart Pen to the PC or Mac via the USB cable, start the software and a web page will open
up; please fill in the information.
2) You can now download the latest information from our server. Follow the on-screen instructions on the PC or
Mac control panel to update your Smart Pen.
Warning: Do not unplug the Smart Pen while downloading the data otherwise it may damage it. Restart your PC
or Mac or reinstall the PC Software if you encounter download failure several times.
1) Connect Smart Pen to your PC or Mac using USB cable provided.
2) Launch SmartGlobe™ software, wait a moment. It will check and show if there is newer version available.
3) Press download button to download the latest version from server.
4) Unplug Smart Pen when it shows "The data has been downloaded completely".
12
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
DISPOSAL
Do not dispose this product as unsorted
municipal waste. Collection of such waste
separately for special treatment is necessary.
Rechargeable Lithium Polymer Battery
May explode if disposed of in fire.
WARNING
DO NOT short circuit or disassemble
15
Name Orbit Observation Traveling Time
Size Moons Games Did you know?
SOLAR SYSTEM
10
13
P/N: 300103913-00001-10
16
