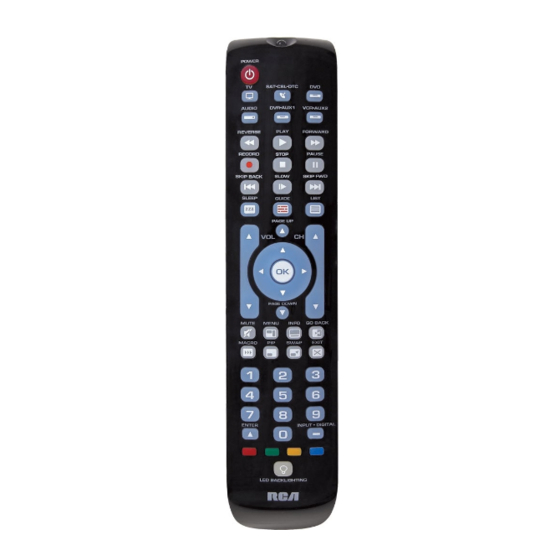

RCA RCRN06GBE Owner's Manual

Testing the Code for Maximum Functionality
RCRN06GBE
Auto Code Search 1. Try a variety of the device's functions with the remote. If some device features
don't work, go to the next step to try a different code.
The Auto Code Search goes automatically through all the codes for the device you're
2. Repeat the Auto Code Search Method from the beginning. When your device
trying to control. When you find the one that operates your device, you can stop the
search and store that code. turns off, do not stop searching. Instead, with the unit now off, continue to press
the SLOW key every 5 seconds until the unit turns back on.
Universal Remote Control TIPS: Each device key is associated with a type of device—the TV is preset to
3. Once the unit turns back on, press the SKIP BACK key on the remote every 2
search for TVs, SAT•CBL•STRM for satellite receivers, streaming players, or cable seconds until your device turns off again. When your device turns off again, press
Owner's Manual
boxes, DVD for DVD players, DVR•AUX1 for DVRs, AUDIO for audio receivers, and the OK key.
VCR•AUX2 for VCRs.
Manual del Propietario (parte posterior) 4. Test the key's functionality again by attempting to control a variety of the
To program the DVR•AUX1 or VCR•AUX2 keys for a different type of device, see device's functions. If the code that has been stored controls the majority of the
the Reassigning the DVR•AUX1 or VCR•AUX2 key section.
device's functions, programming is complete. If the code stored does not give
FCC Statement: maximum functionality, try another code.
To control combo devices, like TV/DVDs and TV/VCRs, you need to program each
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, key separately. Each key will control that part of the combo device.
including interference that may cause undesired operation.
If the original remote control that came with your device has separate ON and OFF
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, Brand Code Search
keys (instead of a single POWER key), the Auto Code Search might not work with
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio The Brand Code Search goes through only the codes for one of the select brands
that device. Try the Direct Code Entry method described later in this manual.
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
listed in the accompanying code list. If your brand of device is listed, this search can
interference to radio communications. However, there is no guarantee that interference will not occur in a To exit without saving a new code at any point in the Auto Code Search, press the
particular installation. If this equipment does cause harmful interference to radio or television reception, be very quick and easy.
EXIT key.
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: IMPORTANT: The Brand Code Search works for TVs, VCRs, DVD players, satellite
1.
• Reorient or relocate the receiving antenna.
Manually turn on the device you want to control. receivers, cable boxes, and audio devices. The Brand Code Search does not work
• Increase the separation between the equipment and receiver.
for programming this remote to control DVRs and digital TV converter boxes. Use a
• Connect the equipment into an outlet on a circuit different from that to which the receiver is 2.
Press and hold the device key you want to program (the different programming method for these kinds of devices.
connected.
POWER key illuminates). While you're holding down the
• Consult the dealer or an experienced radio/TV technician for help. TIPS: Each device key is associated with a type of device—the TV is preset to
Caution: Any Changes or modifications not expressly approved by the party responsible for compliance device key, use your other hand to press and hold the
search for TVs, SAT•CBL•STRM
could void the user's authority to operate this equipment. remote's POWER key at the same time (the POWER key
boxes, DVD for DVD players, DVR•AUX1 for DVRs, AUDIO for audio receivers, and
Industry Canada Regulatory Information turns off).
VCR•AUX2 for VCRs.
CAN ICES-3 (B)/NMB-3 (B)
Avis d'Industrie Canada To program the DVR•AUX1 or VCR•AUX2 keys for a different type of device, see
CAN ICES-3 (B)/NMB-3 (B) the Reassigning the DVR•AUX1 or VCR•AUX2 key section.
Tip: This remote is already programmed to operate many Samsung-branded TVs and To control combo devices, like TV/DVDs and TV/VCRs, you need to program each key
separately. Each key will control that part of the combo device.
DVD players, RCA-branded VCRs, Tivo-branded DVRs, DIRECTV-branded satellite,
and Sony-branded audio receivers. Just press the corresponding key—DVD for a If the original remote control that came with your device has separate ON and OFF
DVD player, TV for a television, VCR•AUX2 for a VCR, SAT•CBL•STRM for a satellite keys (instead of a single POWER key), the Brand Code Search might not work with that
receiver, DVR•AUX1 for a DVR, and AUDIO for an audio receiver. device. Try the Direct Code Entry method described later in this manual.
3.
Wait until the POWER key comes on and stays on. Then To exit without saving a new code at any point in the Brand Code Search, press the

Step 1: Install your batteries

release both keys. EXIT key.
4.
Point the remote directly at the front panel of the device
Your universal remote requires three AAA alkaline batteries (not included).
you want to control. Press SLOW on the remote and wait
5 seconds. The remote is testing a batch of 10 codes on
To install the batteries:
your device.
1.
Remove the battery compartment cover.
Did your device turn off?
2.
Insert the batteries, matching the (+) and (–) marks YES: Go to step 5.
inside the battery compartment. NO: Press SLOW again. The remote tests the next batch
of 10 codes.
3.
Push the battery cover back into place. Keep pressing SLOW every 5 seconds until your device
turns off.
Battery Precautions:
5.
• Do not mix old and new batteries. When your device turns off, press the SKIP BACK key on
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
the remote and wait at least 2 seconds. The remote tries
batteries.
the last of the previous ten codes.
• Always remove old, weak or worn-out batteries promptly and recycle or dispose
of them in accordance with Local and National Regulations. Did your device turn on?
YES: Press the OK key. You're done! You've programmed
Battery Saver
this device key.
Your universal remote control saves battery power by automatically turning off if any
NO: Press SKIP BACK again. The remote tests the next
key is pressed for more than 60 seconds. This saves your battery life should your
code in the batch.
remote get stuck in a place where the keys remain depressed, such as between sofa
Keep pressing SKIP BACK every 2 seconds until your
cushions.
device turns back on. When it does, press OK.

Step 2: Program your remote

Note: If you accidentally press the SKIP BACK key after
your device turns on, press the SKIP FWD key. Then, wait
To use this universal remote with your home entertainment system, first you need to two seconds to see if your device turns off again.
program it to control your devices. There are four ways you can program the universal NOTES: Throughout the programming of each key, be sure to keep the remote
remote to operate your devices:
pointed at the IR sensor of the device you are currently programming the remote
• The Auto Code Search goes automatically through all the codes for the device to control.
you're trying to control. It's the easiest method, but it can sometimes take longer
Test the remote with the device to make sure the device key is programmed with
than some of the other programming methods.
the correct code for maximum functionality. If some features don't work, try a
• The Brand Code Search searches through the codes for select brands of devices. different code. See the "Testing the Code for Maximum Functionality" section
It's not as easy as the auto code search, but it can be faster. below for more information.
During the Auto Code Search, the remote ignores keypresses that aren't part of
• The Direct Code Entry lets you enter a code from the accompanying code list
the search.
for your brand of device. It's not as easy as the other methods, but it's potentially
the fastest method. Note: Direct Code Entry is usually the best method to use The search times out after two minutes (the POWER key blinks four times and the
for audio devices.
last programmed code under that device key is retained).
• The Manual Code Search lets you manually go through all the codes for the The POWER key blinks four times when the remote has gone through all the
device you're trying to control. codes. The remote exits the Auto Code Search. If your device hasn't turned off yet,
try a different search method.
4.
NOTES: Throughout the programming of each key, be sure to keep the remote When you've finished entering the five-digit code, keep holding down the device
key and look at the POWER key.
pointed at the IR sensor of the device you are currently programming the remote
to control. Is the POWER key illuminated?
Test the remote with the device to make sure the device key is programmed with YES: You're done! You've programmed this device key.
the correct code for maximum functionality. If some features don't work, try a
NO, it blinked four times and turned off: You have either entered a code
different code. See the "Testing the Code for Maximum Functionality" section
number that is not in the code lists or missed a step in the code entry procedure.
below for more information.
Try step 3 again.
During the Brand Code Search, the remote ignores keypresses that aren't part of
the search. NOTES
The search times out after two minutes (the POWER key blinks four times and the
Test the remote with the device to make sure the device key is programmed with
last programmed code under that device key is retained).
the correct code for maximum functionality. If some features don't work, try a
The POWER key blinks four times when the remote has gone through all the different code in the list.
codes. The remote exits the Brand Code Search. If your device hasn't turned off
Remember to enter the code for future reference in the box provided in the Code
yet, try a different search method. Retrieval section of this manual.
If your brand isn't listed in the code list, use one of the Code Search methods to
Testing the Code for Maximum Functionality program the remote control. (Refer to the Auto and Manual Code Search methods.)
1. Try a variety of the device's functions with the remote. If some device features If you release the device key any time during the Direct Code Entry procedure, the
don't work, go to the next step to try a different code. POWER key blinks four times and the process is exited. The last programmed code
under the device key is retained.
2. Repeat the Brand Code Search from the beginning. When the device turns off
for the first time, don't press the OK key, which would store the same code.
Instead, with the unit now off, continue to press the SKIP FWD key repeatedly
until the unit turns back on.
Manual Code Search
3. Once the unit turns back on, you have found another code that operates the
for satellite receivers, streaming players, or cable The Manual Code Search takes you one-by-one through all the codes for the device
device. Press the OK key.
you're trying to control. When you find the one that operates your device, you stop the
4. Test the key's functionality again by attempting to control a variety of the
search and store that code.
device's functions. If the code that has been stored controls the majority of the
device's functions, programming is complete. If the code stored does not give TIPS: The Manual Code Search method may take a long time because the remote
maximum functionality, try another code.
searches through all of the codes in its memory one-by-one. If your brand is listed in the
Brand Codes or the Code Lists, first try the Brand Code Search or the Direct Code Entry
method.
Direct Code Entry Each device key is associated with a type of device—the TV is preset to search for
TVs, SAT•CBL•STRM for satellite receivers, streaming
Direct Code Entry lets you enter a code from the accompanying code list for your
for DVD players, DVR•AUX1 for DVRs, AUDIO for audio receivers, and VCR•AUX2
brand of device. It's not as easy as the other methods, but it's potentially the fastest
for VCRs.
method.
To program the DVR•AUX1 or VCR•AUX2 keys for a different type of device, see
the Reassigning the DVR•AUX1 or VCR•AUX2 key section.
1. TIPS: Each device key is associated with a type of device—the TV is preset to
Manually turn on the device you want to control.
To control combo devices, like TV/DVDs and TV/VCRs, you need to program each key
search for TVs, SAT•CBL•STRM for satellite receivers, streaming players, or cable
separately. Each key will control that part of the combo device.
boxes, DVD for DVD players, DVR•AUX1 for DVRs, AUDIO for audio receivers, and
VCR•AUX2 for VCRs. To exit without saving a new code at any point in the Manual Code Search, press the
EXIT key.
To program the DVR•AUX1 or VCR•AUX2 keys for a different type of device, see
2.
Find your device's brand in the Brand Code list section the Reassigning the DVR•AUX1 or VCR•AUX2 key section. 1.
Manually turn on the device you want to control.
of the accompanying code list. Circle the number for
To control combo devices, like TV/DVDs and TV/VCRs, you need to program each
your brand and keep the list handy.
key separately. Each key will control that part of the combo device. 2.
3. Press and hold the device key you want to program
Press and hold the device key you want to program
(the POWER key illuminates). While you're holding
(the POWER key illuminates). While you're holding 1.
Manually turn on the device you want to control. down the device key, use your other hand to press and
down the device key, use your other hand to press and
hold the remote's POWER key at the same time (the
hold the remote's POWER key at the same time (the
POWER key turns off).
POWER key turns off).
2.
Find the Code List that came with the remote. Locate the
section for the type of device you're trying to program,
and find your brand in that section. Circle the codes for
your brand and keep them handy.
3.
Press and hold the device key you want to program (the
POWER key comes on).
3.
4. While you're holding down the device key, use your other Wait until the remote's POWER key comes on and stays
Wait until the POWER key comes on and stays on. Then
hand enter the first five-digit code for your brand in the
release both keys. on. Then release both keys.
code list (the POWER key goes off after the first digit).
5. 4.
Point the remote directly at the front panel of the device
Look at the numbers you circled for your device's brand
you want to control. Press SKIP FWD on the remote and
code. Press those numbers on the remote keypad.
wait 2 seconds. The remote is testing a single code for
your device.
Note: For single-digit brand codes, press the 0 key first
(for example, 0-5 for 5). Did your device turn off?
6.
Point the remote directly at the front panel of the device YES: Press the OK key to store the code. You're done!
you want to control. Press SKIP FWD on the remote and
You've programmed this device key.
wait 2 seconds. The remote is testing a single code for
NO: Press SKIP FWD again. The remote tests the next
your device's brand.
code for your device.
Did your device turn off?
Keep pressing SKIP FWD every 2 seconds until your device
YES: Press the OK key to store the code. You're done!
turns off. When it does, press OK.
You've programmed this device key.
NO: Press SKIP FWD again. The remote tests the next TIP: Because there are so many codes, you may have to
code for your brand.
press the SKIP FWD key many times—possibly hundreds
Keep pressing SKIP FWD every 2 seconds until your of times.
device turns off. When it does, press OK.
NOTES IMPORTANT
Throughout the programming of each key, keep the remote pointed at the IR Because this remote controls more than one device, you must first "tell" the remote
sensor of the device you are programming the remote to control.
which device you wish to operate. That means, if you wish to operate your TV, you
Test the remote with the device to make sure the device key is programmed with must first press the TV key to put the remote in the TV Mode. The remote stays in
the correct code for maximum functionality. If some features don't work, try a that device mode until you press a different device key. For example, if your remote
different code. See the "Testing the Code for Maximum Functionality" section is in TV Mode and you want to operate the DVD player, you must press the DVD
below for more information. key to change device modes.
During the Manual Code Search, the remote ignores keypresses that aren't part
Backlighting
of the search.
Backlight illumination helps you see the remote control keys better in the dark. You
The search times out after two minutes (the POWER key blinks four times and the
last programmed code under that device key is retained). can turn backlight illumination on or off by pressing the backlight key
( ). Backlighting stays on as long as keys are being pressed and turns off four
The POWER key blinks four times when the remote has gone through all the seconds after the last keypress. Once the backlight time has timed out, any keypress
codes. The remote exits the Manual Code Search. If your device hasn't turned off
will reactivate it. If the backlight illumination is on, and you press the backlight key,
yet, try a different search method.
the backlight turns off.
Testing the Code for Maximum Functionality
1.
Try a variety of the device's functions with the remote. If some features of your
devices don't work, go to the next step to try a different code.

Advanced Functions

2. Repeat the Manual Code Search and Entry Method from the beginning. When
the device turns off for the first time, don't press the OK key, which would store
the same code. Instead, with the unit now off, continue to press the SKIP FWD
Reassigning the DVR•AUX1 or VCR•AUX2 Key
key repeatedly until the unit turns back on.
The DVR•AUX1 key defaults to control a DVR, and the VCR•AUX2 key defaults to
3. Once the unit turns back on, you have found another code that operates the
control a VCR. If you want the DVR•AUX1 or VCR•AUX2 key to control a different
device. Press the OK key.
device (an additional TV, DVD, satellite or cable box, for example), you must reassign it.
4. Test the key's functionality again by trying a variety of functions. If the code
1. Press and hold the DVR•AUX1 or VCR•AUX2 key. The POWER key turns on.
controls the majority of the device's functions, programming is complete. If the
code stored does not give maximum functionality, try another code. 2. While holding down the DVR•AUX1 or VCR•AUX2 key, press and release the
number key on the keypad for the device you wish to control (see the chart below).
The POWER key turns off.

Tour of the Remote

DVR•AUX1 OR VCR•AUX2 KEY CONTROLS:
players, or cable boxes, DVD
Additional TV press 1
In most cases, the keys on this remote
VCR or DVR press 2
perform the same functions as the keys
on your original remotes once you've
Additional DVD press 3
programmed this remote to operate your
components. Many keys on this remote have
Additional audio device press 4
other functions as well.
Illuminated POWER key serves as an Additional satellite receiver, cable box, streaming player, or press 5
DTV converter
indicator light to provide feedback.
Device keys (TV, SAT•CBL•STRM , DVD, 3. Release the DVR•AUX1 or VCR•AUX2 key. The POWER key blinks four times and
AUDIO, DVR•AUX1, VCR•AUX2) put the
then turns off. The DVR•AUX1 or VCR•AUX2 key is now set to control the device
remote in the right mode to control your
type you selected.
device.
4. Follow the directions in the auto, brand, direct entry, or manual code search to
Backlight key ( ) turns backlighting on/off.
program the DVR•AUX1 or VCR•AUX2 key.
GUIDE and MENU put the remote in menu/
guide mode; they also access the same

Volume Punch-Through

features as the keys on your original remotes.
EXIT exits remote programming; it also Volume Punch-Through allows the VOL and MUTE keys, when pressed in
performs the same functions as on your SAT•CBL•STRM, DVD, DVR•AUX1 or VCR•AUX2 modes, to "punch through" to
original remotes. either TV or AUDIO, whichever was accessed last. Volume Punch-Through occurs
automatically and allows you to control the volume without exiting the current mode.
Arrow keys act as navigation keys in device
(If the DVR•AUX1 or VCR•AUX2 key has been programmed with a TV or AUDIO
guides and menu systems.
code, volume can punch through to these devices as well.)
OK key selects your menu choices.
Note: Volume Punch-Through does not occur in cases where the component code
The MACRO key, along with the number has its own volume/mute controls, such as some satellite receivers.
keys 1–8, let you store and execute multi-
step actions (macros) in a single keypress

Advanced Punch-Through

The INPUT and — (dash) key has three
Volume punch-through as described above occurs automatically. Advanced punch-
functions: (1) it toggles through all the video
through lets you specify one device for all volume commands for each non-audio mode
or audio sources connected to your TV or
(SAT•CBL•STRM, DVD, DVR•AUX1, or VCR•AUX2). You can specify either the TV or
audio device; (2) when the remote is in VCR
AUDIO device (or an AUX key operating a TV or Audio device).
mode, this button toggles between VCR and
the TV input; (3) when you're entering digital 1. Press and hold the device key whose volume commands you want to send to the
TV or audio device. The POWER key turns on.
channel numbers directly, this button lets you
separate the main channel number from the 2. While holding down the device key, press and hold the VOL up key. The POWER
sub-channel number (such as 59.1). key turns off.
3. After holding down both keys for 3 seconds, the POWER key turns on and stays
on. Release both keys.
4. Press and release the device key you want the Volume Punch-Through to be
directed to from the selected mode (TV, AUDIO or AUX key). The POWER key
flashes.
Actual model may vary from illustration Note: The device key pressed in step 4 must be programmed with a TV or AUDIO
component. If an invalid key is pressed, the POWER key flashes four times, then turns
off.
Important: Once you have programmed any device with a specified Volume Punch- 6. To learn another key for this device mode: Repeat steps 4 and 5 for the key you
TV CODE DVD CODE
Through, the Volume Punch-Through for all other devices defaults to AUDIO. If you want to learn.
do not want other components' Volume Punch-Through to default to AUDIO, you To learn keys in a different device mode: Repeat steps 2–5 for the next device
1 3
must manually program them, using steps 1-4. mode.
To save learned keys and exit learning: press the SLEEP key on the learning
AUDIO CODE SAT•CBL•STRM CODE remote.
Transport Key Punch-Through
Transport Key Punch Through allows the transport keys (REVERSE, PLAY, FORWARD, Learning Tips
4 5
RECORD, STOP, PAUSE, SKIP FWD, SKIP BACK, and SLOW), when pressed in TV,
• Make sure the batteries in both the learning and original remote(s) are fresh.
SAT, CABLE and AUDIO modes, to "punch through" to VCR•AUX2, DVR•AUX1 or
DVD/CD mode, whichever was accessed last. Transport Key Punch-Through occurs DVR•AUX1 CODE VCR•AUX2 CODE • Incandescent or low-energy light can cause interference with IR transmissions.
DVD DVD
automatically and allows you to use the transport keys without exiting the current TV TV When using the Learning function, keep remotes at least three feet away from
mode. For example, if the transport keys were last used in DVD mode and accessed SAT•CBL•STRM SAT•CBL•STRM such light sources.
AUDIO AUDIO
again after pressing the TV key, they will punch through to the DVD. The default DVR/VCR DVR/VCR • Make sure the original remote is in the same mode as the universal remote so
Transport Key Punch Through is set to DVD for TV, SAT, CABLE and AUDIO. that the Learned key is assigned to the correct mode.
Note: Transport Key Punch Through does not occur in cases where the component • You cannot learn any commands under the MACRO, SLEEP , or BACKLIGHT keys.
code has its own transport key data, such as a satellite receiver with a built-in DVR. • If you use the VOL+/- keys to learn new functions, the volume control will not
adjust the volume in the Volume Punch Through mode.
Learning
• To exit Learning mode at any time, press the SLEEP key.
Channel Lock Codes from the Code Lists include basic functionality for each component they • The remote exits Learning mode if it has run out of memory to store new learned
keys.
control. Once you have programmed in the code for your specific component, you
Channel lock automatically sends channel commands, like the CH, GO BACK, and
can customize the universal remote to include certain functions from your original • To ensure that your units are compatible and to increase your familiarity with the
0–9 number keys, to your satellite receiver, cable box, or digital TV converter when
remote(s) that were not embedded in the preset code. Your universal remote has the Learning process, experiment by learning two or three keys initially. Then, carry
you're in TV mode. This can save you keypresses if you use a device other than your ability to learn and store commands from your original remote(s) under the mode(s) out a Master Clear before learning all the desired functions from your original
TV to change channels.
of your choice. The universal remote can store up to 50 key commands.* Only one remote.
To turn channel lock on: original remote can be learned under any one mode (e.g., the universal remote can
learn commands for one TV remote, one VCR remote, etc.).
1. Press and hold the device key for the device you use to change channels. While
you're holding down this device key, use your other hand to press and hold the * Some learned signals require more memory than others. In these cases, fewer key

Macros

remote's CH up key at the same time.
commands can be learned.
2. Wait until the remote's POWER key comes on and stays on. Then release both The Macro feature lets you execute a sequence of commands with one keypress. Any
keys. Before First-Time Learning sequence of commands that you regularly perform (up to a maximum of 15 per macro)
can be stored as a Macro under one of the 1–8 number keys (up to 8 macros).
3. Press ENTER to lock channel commands to this device.
Before you start learning keys for the first time, clear any stored learning

Programming a Macro

To turn channel lock off: information that might be in the remote. This lets you begin with a clean slate.
1. Press and hold the TV key. While you're holding down the TV key, use your other 1. Press and hold the EXIT key (the POWER key illuminates). While you're holding Important: Before you start, make sure your remote is programmed to control your
hand to press and hold the remote's CH down key at the same time. down the EXIT key, use your other hand to press and hold the POWER key (the
devices and that you've learned all the keys you want to learn from your original
2. Wait until the remote's POWER key comes on and stays on. Then release both POWER key illumination turns off). remotes.
keys.
2. Wait until the POWER key comes on and stays on. Then release both keys. The
3. Press ENTER to start changing channels with your TV. remote is now in the Master Clear mode. 1.
3. Press the OK key to confirm the Clear operation. The POWER key remains on
for 2 seconds, then turns off. All Learned functions for all components are now

Code Retrieval

cleared; all other programming remains intact.
Once you've programmed the remote to control your devices, you may want to

Learning From Your Original Remotes

record the codes for future reference. If you used the Direct Code Entry method, this
is easy. Just find the codes you entered and make a note of them in the boxes below.
1. Place your original remote and the learning remote on a flat surface as shown
If you used one of the Code Search methods to program your remote or if you used
2.
below. Point the top of your original remote at the top of the learning remote.
the Direct Entry method but don't remember the code, you will need to retrieve each
The IR LED on the original remote should be pointing directly at the learning
device's five-digit code. Retrieving the actual code and writing it down will save you
remote's learning sensor, located on the top of the remote. The remotes should
time if you ever need to program the remote again. If the codes are recorded, you Note: If you do not press a macro number key within 15
be 1–2 inches apart.
can use the Direct Entry method to reprogram your remote to control your devices, seconds (or if you press a macro number key that already has
which is quick and easy. a macro programmed), the POWER key blinks four times and
turns off. The remote exits macro programming mode, and no
TIPS: 1–2" changes are made to existing Macros.
All TV codes start with the number 1; all VCR and DVR codes start with the
number 2; all DVD player codes, the number 3; all audio device codes, the number 3. Press the device key for the first device you use in the macro. The POWER key
4; and all satellite receiver, cable box, streaming player, and digital TV converters, blinks once and remains on.
the number 5.
4. Press each key you want to use in this Macro, in the exact order the keys would
To exit the Code Retrieval Mode at any time, press the EXIT key. 2. On the learning remote, press and hold the device key
be pressed if you were executing the sequence yourself. The POWER key blinks
you want to use the learned function in (the POWER
If you press an invalid key during the Code Retrieval process, the remote will not each time a key is pressed. Continue this process for all keys to be included in
key turns on and remains on). While holding down the
respond. If you do not press a valid Code Retrieval key (TV, SAT•CBL•STRM, DVD,
device key, use your other hand to press and hold the the Macro sequence under the given component mode.
AUDIO, DVR•AUX1, VCR•AUX2, INFO, EXIT), Code Retrieval times out after 15
RECORD key (the POWER key illumination turns off).
seconds. The POWER key blinks four times, and then turns off. Important: If you are using different devices in this macro, you must press each
3. Wait until the POWER key turns on and stays on. Then device key before you start pressing the keys for that device. For example, if you're
1. Press and hold the device key (TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1 or
release both keys. The remote is now in Learning mode. turning on the TV, then playing a DVD, you must press the TV key, then POWER,
VCR•AUX2) whose code you wish to retrieve. The POWER key illuminates. Keep then DVD, then PLAY.
4. On the learning remote, press the key you want to use
pressing the device key.
for the learned function. The illuminated POWER key blinks once,
5. Once you are finished programming the Macro, press the MACRO key to save it.
2. While holding the device key down, press and hold the INFO key. The POWER then remains on.
The POWER key illumination turns off, and the Macro is now ready to use.
key illumination turns off. After holding down both keys for three seconds, it
5. On the original remote, press and hold the key you want to teach to the
turns back on.
universal remote. Wait until the POWER key on the learning remote blinks once, Notes: To exit Macro programming at any time, press the EXIT key. The POWER
3. Release both keys. The POWER key remains illuminated. then release the key on the original remote. The learning remote has finished
key blinks four times, then turns off. No changes are made to existing Macros.
4. Starting with the number 1 key, press and release each number key on the keypad in learning this key.
If you press a key that has a Learned function, the Learned function is assigned to
the following order: 1-9, then 0. The number that causes the POWER key to blink is Note: If a problem occurs during the Learning process, the illuminated POWER key the Macro sequence.
the first number of the code. As you find each number of the code, write it down for blinks four times, but the unit remains in the Learning mode. If this occurs, adjust If you program all 15 keys into a Macro, the Macro is automatically saved after the
future reference. Then start with the number 1 key again.
the distance between the remotes slightly and repeat from step 4. 15th keypress.
5. Repeat step 4 until you have retrieved all five numbers in the code. After the fifth The commands within a Macro must be programmed in sequential order. A delay
number is retrieved, the POWER key blinks briefly, then turns off.
of 0.5 seconds is used between sending each command in a programmed Macro
sequence.
You cannot program a Macro within a Macro.
Using a Macro Problem: The POWER key does not illuminate when you press a key.
1. Press the MACRO key. • You may have pressed an invalid key for the mode the remote is in.
• Make sure the remote is in the correct mode by pressing the corresponding device key
2. Press the number key assigned to the Macro sequence you want to execute. The
(TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1, VCR•AUX2). This tells the remote which
POWER key blinks once, then remains on.
device to operate.
As the remote sends each command in the Macro sequence, the POWER key blinks
• Make sure the batteries are fresh and are properly installed. Replace the batteries with
once. After the remote sends the last command in the Macro sequence, the POWER
three new AAA batteries, if necessary (see the Battery Installation section).
key illumination turns off.
Problem: The remote will not change channels on device.
An Example Macro
• Make sure the remote is in the correct mode by pressing the corresponding device key
This example shows an "all on" macro for a home theater with a TV, DVD player, (TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1, VCR•AUX2). This tells the remote which
and satellite receiver. device to operate.
1. Press and hold the MACRO key until the POWER key turns on and remains on. • Press the ENTER key after you enter a channel number.
• Remove any obstacles between the remote and the device. Make sure to aim the remote
2. Press the 1 key to tell the remote where to store the macro.
at the IR sensor on the device.
3. Press the TV key to put the remote in TV mode.
Problem: The device's menu does not appear on the TV screen.
4. Press the POWER key to turn the TV on.
• Make sure you have connected the device to your TV properly and selected the correct
5. Press the DVD key to put the remote in DVD mode.
input. (See your devices' Owner's Manuals for proper connection procedures.)
6. Press the POWER key to turn on the DVD player. • Make sure the remote is in the correct mode by pressing the corresponding device key
(TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1, VCR•AUX2). This tells the remote which
7. Press the SAT•CBL•STRM key to put the remote in that mode.
device to operate.
8. Press the POWER key to turn on the satellite receiver.
• Menu access isn't supported for all brands. You may need to use your original remote
9. Press the MACRO key to save. control to access menu functions for some devices.
To execute the Macro, press the MACRO key. Press the 1 key. Your TV, DVD player, Problem: The Learning process cannot be completed successfully.
and satellite receiver should all power on.
• Replace batteries in both the learning remote and the original remote.
• Make sure the distance between the remotes is approximately 1–2 inches.

Deleting a Macro

• Do not conduct the Learning process near an incandescent lamp.
• The learning remote's memory capacity may be full (50 Learned commands).
1. Press and hold the MACRO key until the POWER key turns on and remains on.
• The original remote may not be compatible with the Learning procedure.
2. Press the EXIT key. The POWER key blinks once, then remains on.
For more information, including instructional videos,
3. Press the number key (1–8) where the macro you want to delete is stored. The
remote programming codes, and customer support, visit
POWER key blinks once, then remains on.
www.RCACodeSupport.com
4. Press the OK key to confirm the Macro Clear operation. The POWER key stays
on for 2 seconds, then turns off. The selected Macro is deleted.
Note: If you do not press the OK key within 15 seconds (or if you press a different
Care and Maintenance
key), the POWER key blinks four times and turns off. The remote exits macro
deletion mode, and no changes are made to existing Macros. • Keep the remote dry. If it gets wet, wipe it dry immediately.
• Use and store the remote only in normal temperature environments.
5. Repeat steps 1-4 for any other existing Macros to be cleared.
Press and hold the MACRO key until the POWER key
• Handle the remote gently and carefully. Don't drop it.
turns on and remains on. The remote is now in Macro
• Keep the remote away from dust and dirt.
Programming mode.

Troubleshooting

• Wipe the remote with a damp cloth occasionally to keep it looking new.
• Modifying or tampering with the remote's internal devices can cause malfunction and
invalidate its warranty.
Problem: The remote does not operate your device.
• Make sure the remote is in the correct mode by pressing the corresponding device key
Press the number key (1–8) you want to use for this macro.
(TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1, VCR•AUX2). This tells the remote which
Limited Lifetime Warranty
The POWER key blinks once, then remains on. device to operate.
• Remove any obstacles between the remote and the device. Make sure you're aiming the
remote at the device's IR sensor.
Voxx Accessories Corporation (the "Company") warrants to you the original retail purchaser of this
• Make sure the batteries are fresh and are properly installed. Replace the batteries with
product that should it, under normal use and conditions, be proven defective in material or workmanship
three new AAA batteries, if necessary (see the Battery Installation section).
during its lifetime while you own it, such defect(s) will be repaired or replaced (at the Company's option)
Problem: The remote can't be programmed to operate your device. without charge for parts and repair labor.
To obtain repair or replacement within the terms of the warranty, the product is to be delivered with
• If you are testing the remote while programming it, you may be too far away from the device
proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to
or at a wrong angle. There must be an unobstructed path between the remote and the IR
an approved warranty station. For the location of the nearest warranty station to you, call toll-free to our
sensor on the device. Move closer and make sure you point the remote at the device you're
control office: 1-800-645-4994.
trying to control.
• If you're using the Direct Entry programming method to enter the codes for your brand This Warranty does not cover product purchased, serviced or used outside the United States or Canada.
This Warranty is not transferable and does not extend to costs incurred for installation, removal or
and the unit is still not functioning properly, try the auto, brand, or manual search
reinstallation of the product. This Warranty does not apply if in the Company's opinion, the product has
method.
been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or the
• To control combo units, like TV/VCRs or TV/DVDs, you must program the individual simultaneous use of different battery types (e.g. alkaline, standard or rechargeable).
corresponding device keys to control each part of the combo unit. Once programmed
THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
successfully, the TV key controls the TV functions, and the DVD or VCR•AUX2 key
controls the DVD or VCR functions. REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED
THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
• Make sure the batteries are fresh and are properly installed.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES,
Problem: The remote doesn't perform commands properly. INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE SHALL BE LIMITED TO DURATION OF THIS WARRANTY. IN NO CASE SHALL THE
• Make sure the remote is in the correct mode by pressing the corresponding device key
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No
(TV, SAT•CBL•STRM, DVD, AUDIO, DVR•AUX1, VCR•AUX2). This tells the remote which
person or representative is authorized to assume for the Company any liability other than expressed
device to operate.
herein in connection with the sale of this product.
• Make sure device is ready (for example, the DVD player has a disc loaded).
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion
• You may have pressed an invalid key for the mode the remote is in. or limitation of incidental or consequential damage so the above limitations or exclusions may not apply
to you. This Warranty gives you specific legal rights and you may also have other rights, which vary from
• If you're trying to enter a channel number directly, try pressing the ENTER key after
entering the channel number as this is a requirement of certain models and brands. state/province to state/province.
• There is a possibility that a programmed code may only be able to control some of your
device features (for example, only turns a device on and off). To confirm that the device
key is programmed with the correct code for maximum functionality, test the device.
Attempt to control a variety of the device's functions with the remote. If some of the
features of your devices don't work, try programming the remote with a different code ©2018 Voxx Accessories Corp.
in the list using the Direct Code Entry Method, until you find the code that allows the
3502 Woodview Trace, Suite 220
remote to control the majority of your device's functions. Different codes can provide
Indianapolis, IN 46268
different levels of functionality.
Trademark(s) ® Registered
RCRN06GBE US 01
