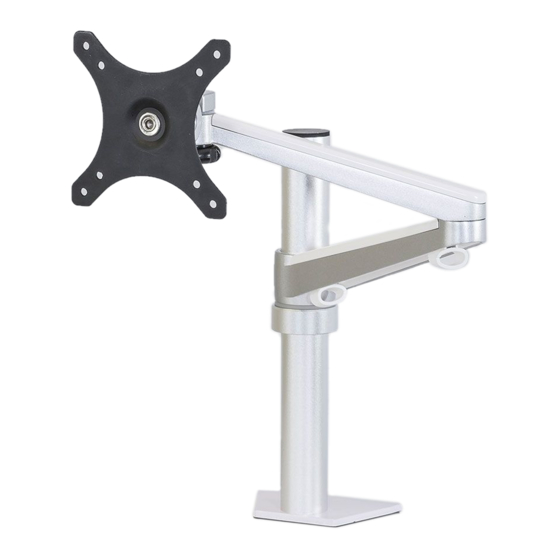

Monitor Arms
for DeskRite 100 sit-stand platform
1
Retaining ring
---------
(Single Arm) X1
Body(Mounted Post) X1
4
5
M4X8mm
M5X8mm
Standard VESA
Extended VESA
Bracket Screws X8
Bracket Screws X8
Installation instructions
1
Remove the base
screw from column.
Posturite Ltd
The Mill, Berwick,
East Sussex, BN26 6SZ, UK
t. 0345 345 0010
e. support@posturite.co.uk
2
Monitor Adapter(Single Arm) X1
Monitor Adapter(Dual Arms) X2
3
Parallel dual arm connector X1
6
7
5mm
Stainless Steel Spacer X8
6mm Hex Key X1
2
Push the bolt up
through the desktop
and open cover.
310mm
12 inches
Screen
Max weight: 7kg/15Ibs
Max size: 680mm/27inches
Rubber Ring X2
8
9820753
4mm Hex Key X1
9820754
3
Place the column (A)
then tighten the bolt (B)
underneath, secure the
main column.
POSTURITE
530mm
21 inches
Monitor Arm - Single
Monitor Arm - Dual
Continued overleaf...
posturite.co.uk
Posture Depot
179 Gasoline Alley
Mooresville, NC 2811, USA
t. 704-999-0809
e. info@posturedepot.com
Advertisement
Related Manuals for Posturite DESKRITE 100
Summary of Contents for Posturite DESKRITE 100
-
Page 1: Installation Instructions
Monitor Arms for DeskRite 100 sit-stand platform POSTURITE 310mm 12 inches Retaining ring --------- (Single Arm) X1 530mm 21 inches Monitor Adapter(Single Arm) X1 Monitor Adapter(Dual Arms) X2 Screen Max weight: 7kg/15Ibs Max size: 680mm/27inches Body(Mounted Post) X1 Parallel dual arm connector X1... - Page 2 Cantilever adjustment Height adjustment max 460mm +90˚ / -80˚ 180˚ 360˚ max 18 inches posturite.co.uk Posturite Ltd Posture Depot The Mill, Berwick, 179 Gasoline Alley East Sussex, BN26 6SZ, UK Mooresville, NC 2811, USA t. 0345 345 0010 t. 704-999-0809 e.
