- Page 1 Guía de Instalación para WMS2012 NEO-360 NEO-360UX3 www.multi-pc.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..................3 FEATURES ..................3 PACKAGE CONTENTS ..............3 APPLICATION..................4 SPECIFICATIONS ................5 SUPPORTED DISPLAY RESOLUTIONS ......... 5 MINIMUM SYSTEM REQUIREMENTS ..........6 MAC ADDRESS REMARKING ............7 DEVICE INSTALLATION - SOFTWARE ..........8 DEVICE INSTALLING - HARDWARE ........... 12 THE STATION ASSIGNMENT AND FUNCTION SETTING .... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the MultiPoint Workstation. The MultiPoint Workstation is designed specifically for Windows MultiPoint Server 2012. Simply connect it to an available Gigabit Ethernet Port on the server, and attach a monitor, keyboard, and mouse to add a new workstation. -
Page 4: Application

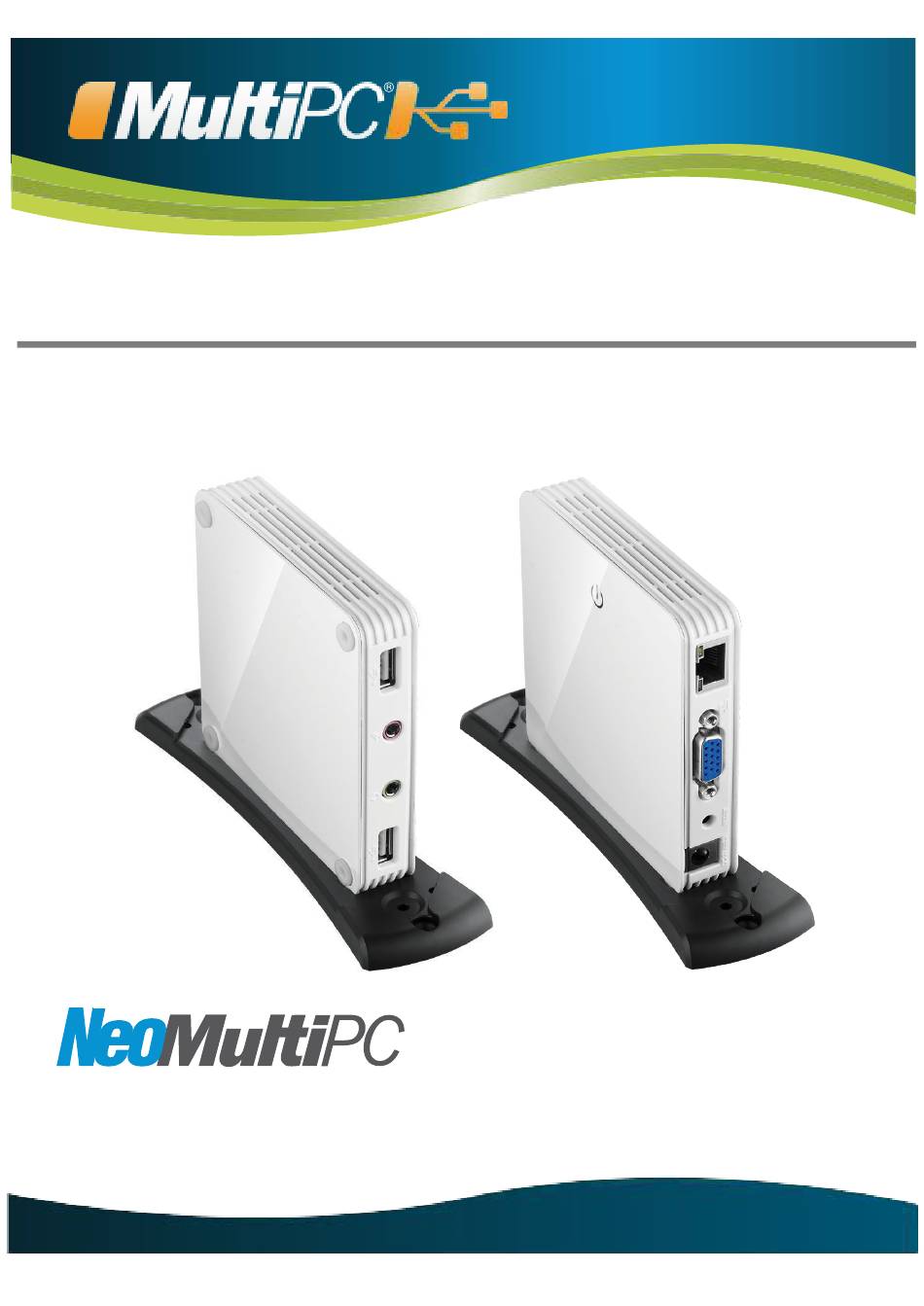

APPLICATION NEO360 1. Two High-Speed USB Ports 2. Stereo Audio Output (Microphone & Headphone) 3. AC Power Jack 4. Reset Button 5. VGA (DB-15) Port 6. Giga LAN (RJ-45) Port NEO360UX3 1. Three High-Speed USB Ports 2. Stereo Audio Output (Microphone & Headphone) 3. -
Page 5: Specifications
SPECIFICATIONS SUPPORTED DISPLAY RESOLUTIONS... -
Page 6: Minimum System Requirements
MINIMUM SYSTEM REQUIREMENTS Number of Users CPU (*Note.1) Quad-core processor Recommended Intel Core i5 Intel Core i5 Intel Core i7 Main Board Chipset Intel Ivy bridge chipset / Intel Sandy bridge chipset Minimum disk space 32GB for setup *Note.1: x64-based Intel Pentium, Intel quad core (i7, i5, i3), XEON, Intel dual core. -
Page 7: Mac Address Remarking
MAC ADDRESS REMARKING Assuming multiple server is required, gathering all station HUB (MultiPoint Workstation) first, grouping desired Station Hub in quantity while suite each server’s seats, start peeling every (MultiPoint Workstation) MAC Address Label and paste on handbook according to the designated Server Name. -
Page 8: Device Installation - Software
DEVICE INSTALLATION - SOFTWARE Installing the device driver enables Windows MutliPoint Server 2012 to recognize the MultiPoint Workstation. Please make sure the MultiPoint Workstation is unplugged from your server before executing the setup program. A Windows update must be completed before installing this Driver, if you have completed Windows update you may skip step 2 and step 3. - Page 9 Step 3. Follow the step showed below: click “Check to Update” on the left hand. Due to Windows it is very important to repeat this update step for a few times update complication, until you see “You’re set to automatically install updates” has pop out, because there are more than 50 scalable files to be update that requires multiple repeats to complete all.
- Page 10 Step 5. License Agreement; review it and check I accept the terms of the license agreement Click Next to accept the License Agreement. Step 6. Setup is searching for installed features... *You may notice the screen flashes during hardware installation. It is part of the normal process. .
- Page 11 Step 7. Driver Installation Wizard, click Finish to continue and restart the computer.
-
Page 12: Device Installing - Hardware
DEVICE INSTALLING - HARDWARE Step 1. Connecting monitor to the VGA connector of the MultiPoint Workstation, turn on the monitor. Connecting power adapter, Giga LAN cable, keyboard, and mouse to the MultiPoint Workstation. Noted: Plugging keyboard/mouse directly into main system USB ports is prohibit, administrator need to use an intermediate USB root hub for both keyboard &... -
Page 13: The Station Assignment And Function Setting
THE STATION ASSIGNMENT AND FUNCTION SETTING Step 1. Before run “MultiPoint Manager”, please follow the illustration below: 1-1 Log-in as administrator and press "Windows" key from keyboard. 1-2 Type "WmsManager" to launch “MultiPoint Manager”. 1-3 Run "WmsManager" by left click... - Page 14 Step 2. Click “Network Stations” as showed: Step 2-1 Choose one of the station from“☑” and click "Assign to this server" to assign the station...
- Page 15 Step 2-2 This screen is asking to assign to this host server. Click “Yes” to confirm. Step 2-3 The choose station has been assign succeed.
- Page 16 ** You also can assign multi-stations to the host server at the same time. ** For example: When there is 5 workstation HUB is connected, It shows 5 stations on the screen which are free / waiting for assignment inside the “status” column indicating as “not connected”.
- Page 17 Step 2-5 Select " Assign to this server". Step 2-6 Click “Yes” to complete all the station assignment. Repeat the same process of step2–2 for the any other one of the station you desire to select for station assignment.
- Page 18 NOTE: If any one of the stations needs to be disconnected, please select the station and Click “ Clear Assignment ” under “Device Task Item” on the right panel of the screen then click “Yes” while the dialog pop up for disconnection. If all of the stations need to be disconnected, simply click “Select All”...
-
Page 19: Stations Rename
STATIONS RENAME Renaming the station may convenient administrator recognizing MAC address location by his own design, it needs to be done before station gets assignment. Rename step: 1. Select station “☑” by one left click. 2. Left click on “Rename client name” at right panel. 3. -
Page 20: Network Setting
NETWORK SETTING A Local Area Network setting to be prioritized either by Static IP or Dynamic IP for this Server, This Network setting needs to be done before station gets assigned. “Dynamic IP” is recommend with Router Device: Select station by one left click highlight Left click on "Network setting" under Device Task Item . -
Page 21: Restart Device
RESTART DEVICE Restart Device function can be use when there are some station did not recognize keyboard/mouse. “Restart device” needs to be done before station gets assignment. Restart device step: Select station by one left click highlighting Left click on “Restart device” under “Device Task Item.”... -
Page 22: Adjusting The Screen Resolution
ADJUSTING THE SCREEN RESOLUTION By default, Windows MultiPoint Server 2012 will select the recommended resolution for each connected display. However, if you would like to choose a different resolution, follow these steps: Step 1. Before run “MultiPoint Manager”, please follow the illustration below: 1-1 Log-in as administrator and press "Windows"... - Page 23 Step 2. Click “Home” “Switch to Console mode” Step 3. Click “OK” to continue Step 4. Press “Ctrl + Alt + Delete” to log in administrator into “Console Mode”...
- Page 24 Step 5. Left click on the desktop task bar and choose "USB Display Device" as illustration. Step 6. Click "Identify" to identify all station display. Then click on the display serial number to adjusted and choose the desired resolution from the "Current Resolution"...
-
Page 25: Adjusting The Screen Rotation
ADJUSTING THE SCREEN ROTATION Click on the display serial number to adjusted and choose the desired rotation from the "Rotation" dropdown menu ,Then click "Apply" to finish resolution setting. SETTING TURN OFF ALL MONITOR *This feature can only perform under console mode, if you are at Station Mode, you will need to switch to Console Mode. -
Page 26: Setting Power Saving
SETTING POWER SAVING *User can turn-off all display monitor without turning off computer in order to save power from monitors, this feature is to be initiate under Console Mode and will function on Station Mode: 1. Switch to Console Mode first, and Click "Power Saving " button: 2. - Page 27 3. You will need to switch back to Station Mode, and the “Power Saving” will initiate after the time clock you have set above, you will need to go to “Start” page in order to initiate the Power Saving Function, this Power Saving function will not initiate if you switch to any other display pages;...
-
Page 28: Device Driver Un-Installation
DEVICE DRIVER UN-INSTALLATION You need "switch to Console mode" Before doing the uninstall process. The following procedure allows you to uninstall the MultiPoint Workstation device driver. Please make sure all MultiPoint Workstation are unplugged from your server before executing the device driver un-installation program. Step 1. - Page 29 Step 3. Select the “ MultiPC-ZeroClient – xx.xx.xxxx.xxxx ” item. Click Uninstall button. Step 4. Click “OK” to continue Step 5. Select “Yes”, I want to restart my computer now” and click “Finish” to reboot. The driver is now uninstalled.
-
Page 30: Vesa Mounting
VESA MOUNTING... -
Page 31: Troubleshooting Tips
