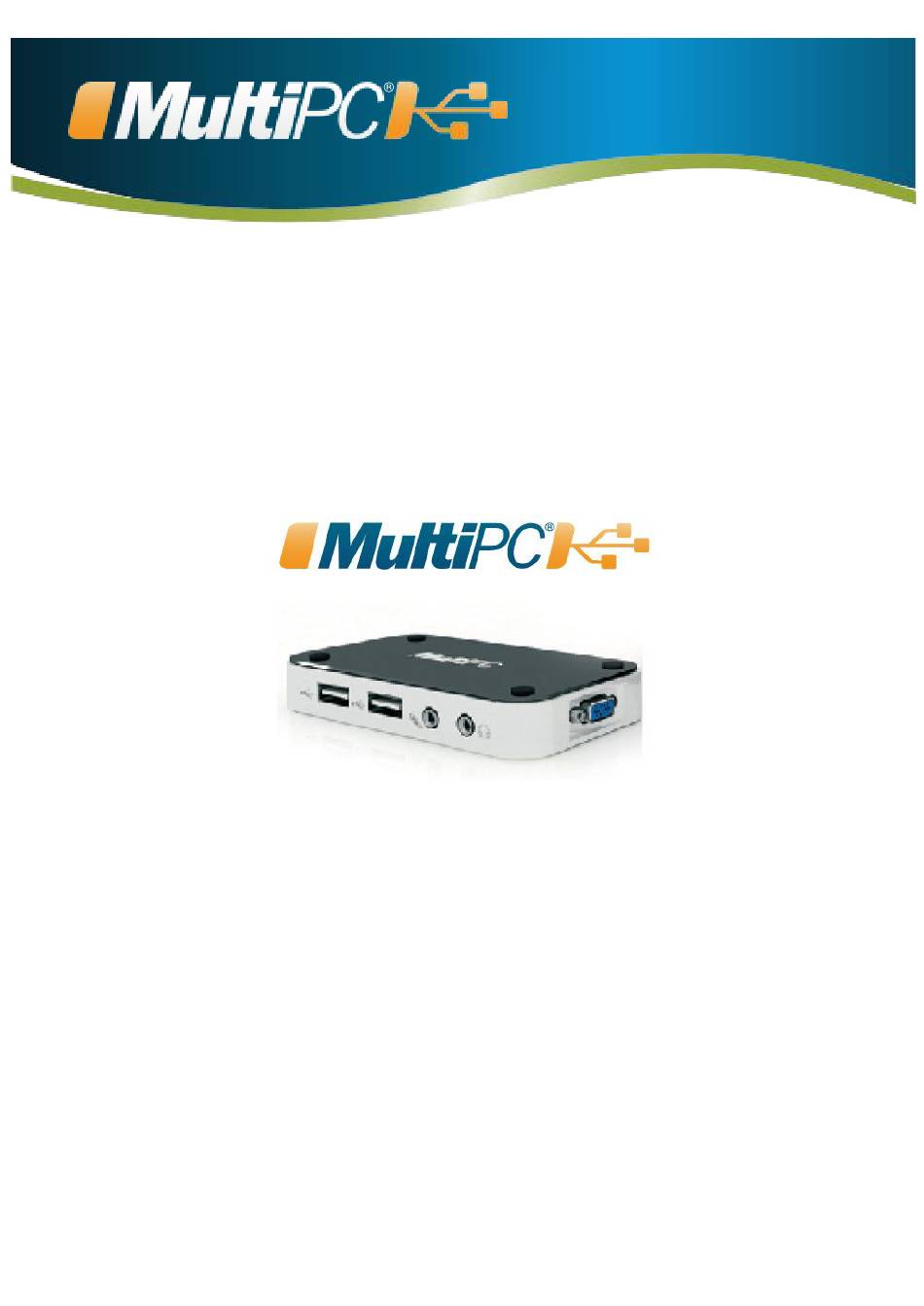

- Page 1 GUIA DE INSTALACION NEO 180 USB v.1_20120430...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................2 FEATURES ..................2 PACKAGE CONTENTS ..............2 APPLICATION ..................3 SPECIFICATIONS ................4 SUPPORTED DISPLAY RESOLUTIONS .......... 4 MINIMUM SYSTEM REQUIREMENTS ..........5 DEVICE INSTALLATION - SOFTWARE ..........6 DEVICE INSTALLING - HARDWARE ............ 10 SPLIT-SCREEN STATION.............. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the MultiPoint Workstation. The MultiPoint Workstation is designed specifically for Windows MultiPoint Server 2012. Simply connect it to an available USB Port on the server, and attach a monitor, keyboard, and mouse to add a new workstation. The MultiPoint Workstation features Two (Four) high-speed USB 2.0 ports, audio and microphone ports, a VGA port that supports resolutions up to 1680 x 1050. -
Page 4: Application
APPLICATION NEO180 ○ 1 2 High-Speed USB Ports ○ 2 Audio Port (Speaker & Microphone) ○ 3 VGA Port Supports up to 1600 x 1200 ○ 4 To PC (USB 2.0 Mini B type) NEO360... -
Page 5: Specifications
SPECIFICATIONS SUPPORTED DISPLAY RESOLUTIONS... -
Page 6: Minimum System Requirements
MINIMUM SYSTEM REQUIREMENTS Available USB 2.0 Port Number of Users CPU (*Note.1) Quad-core processor Recommended Intel Core i5 Intel Core i5 Intel Core i7 Main Board Chipset Intel Ivy bridge chipset / Intel Sandy bridge chipset Minimum disk space for 32GB setup *Note.1:... -
Page 7: Device Installation - Software
DEVICE INSTALLATION - SOFTWARE Installing the device driver enables Windows MutliPoint Server 2012 to recognize the MultiPoint Workstation. Please make sure the MultiPoint Workstation is unplugged from your server before executing the setup program. A Windows update must be completed before installing this Driver, if you have completed Windows update you may skip step 2 and step 3 Step 1. - Page 8 Step 3. Follow the step showed below: click “Check to Update” on the left hand. Due to it is very important to repeat this update step Windows update complication, for a few times until you see “You’re set to automatically install updates”...
- Page 9 Step 5. License Agreement; review it and check I accept the terms of the license agreement Click Next to accept the License Agreement. Step 6. Setup is searching for installed features... *You may notice the screen flashes during hardware installation. It is part of the normal process.
- Page 10 Step 7. Driver Installation Wizard, click Finish to continue and restart the computer.
-
Page 11: Device Installing - Hardware
DEVICE INSTALLING - HARDWARE Step 1 Connecting monitor to the VGA connector of the MultiPoint Workstation, turn on the monitor. Connecting power adapter, USB cable, keyboard, and mouse to the MultiPoint Workstation. Step 2 Connect one end of the USB cable to the MultiPoint Workstation and the other end to an available USB 2.0 port of your computer. -
Page 12: Split-Screen Station
SPLIT-SCREEN STATION Windows MultiPoint Server 2012 offers a split screen option on computers with direct-video-connected stations or USB-zero client-connected stations. A split screen provides the ability to create an additional station per monitor. Instead of requiring two monitors, you can use one monitor with two station hub setups to create two stations with one monitor. - Page 13 (For NEO180 Only) SPLIT SCREEN SETTING Step 1 Please follow up the procedure on illustration for getting into “MultiPoint Manager” as 1. Press "Windows" key from keyboard 2. Type "WmsManager" from keyboard 3. Run "WmsManager" program to launch “MultiPoint Manager”. Step 2 Select “Stations”...
- Page 14 Step 3 Click OK to continue TO DISABLE SPLIT SCREEN Same procedure as above step1 for getting onto “MultiPoint Manager” and select “Stations” then highlight the local station and click “Unsplit station” under “Selected Item Tasks” as illustration. Then click “OK” on the “Unsplit station” dialog to bring back into single station on the monitor.
-
Page 15: Adjusting The Screen Resolution
ADJUSTING THE SCREEN RESOLUTION By default, Windows MultiPoint Server 2012 will select the recommended resolution for each connected display. However, if you would like to choose a different resolution, follow these steps: Step 1. Before run “MultiPoint Manager”, please follow the illustration below: 1-1 Log-in as administrator and press "Windows"... - Page 16 Step 2. Click “Home” “Switch to Console mode” Step 3. Click “OK” to continue Step 4. Press “Ctrl + Alt + Delete” to log in administrator into “Console Mode”...
- Page 17 Step 5. Left click on the desktop task bar and choose "USB Display Device" as illustration. Step 6. Click "Identify" to identify all station display. Then click on the display serial number to adjusted and choose the desired resolution from the "Current Resolution" dropdown menu ,Then click "Apply" to finish resolution setting.
-
Page 18: Adjusting The Screen Rotation
ADJUSTING THE SCREEN ROTATION Click on the display serial number to adjusted and choose the desired rotation from the "Rotation" dropdown menu ,Then click "Apply" to finish resolution setting. SETTING TURN OFF ALL MONITOR *This feature can only perform under console mode, if you are at Station Mode, you will need to switch to Console Mode. -
Page 19: Setting Power Saving
SETTING POWER SAVING *User can turn-off all display monitor without turning off computer in order to save power from monitors, this feature is to be initiate under Console Mode and will function on Station Mode: 1. Switch to Console Mode first, and Click "Power Saving " button: 2. - Page 20 3. You will need to switch back to Station Mode, and the “Power Saving” will initiate after the time clock you have set above, you will need to go to “Start” page in order to initiate the Power Saving Function, this Power Saving function will not initiate if you switch to any other display pages;...
-
Page 21: Device Driver Un-Installation
DEVICE DRIVER UN-INSTALLATION You need "switch to Console mode" Before doing the uninstall process. The following procedure allows you to uninstall the MWS400UL device driver. Please make sure all MWS400UL are unplugged from your server before executing the device driver un-installation program. Step 1. - Page 22 Step 3. Select the “MultiPC-ZeroClient– xx.xx.xxxx.xxxx ” item. Click Uninstall button. Step 4. Click “OK” to continue Step 5. Select “Yes”, I want to restart my computer now” and click “Finish” to reboot. The driver is now uninstalled.
-
Page 23: Vesa Mounting
VESA MOUNTING NEO180... - Page 24 NEO360...
-
Page 25: Troubleshooting Tips
Knowledge Base articles, and software for your device. Copyright© 2013 MultiPC Argentina S.R.L. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without notice. Product may not be exactly as shown in the diagrams.
