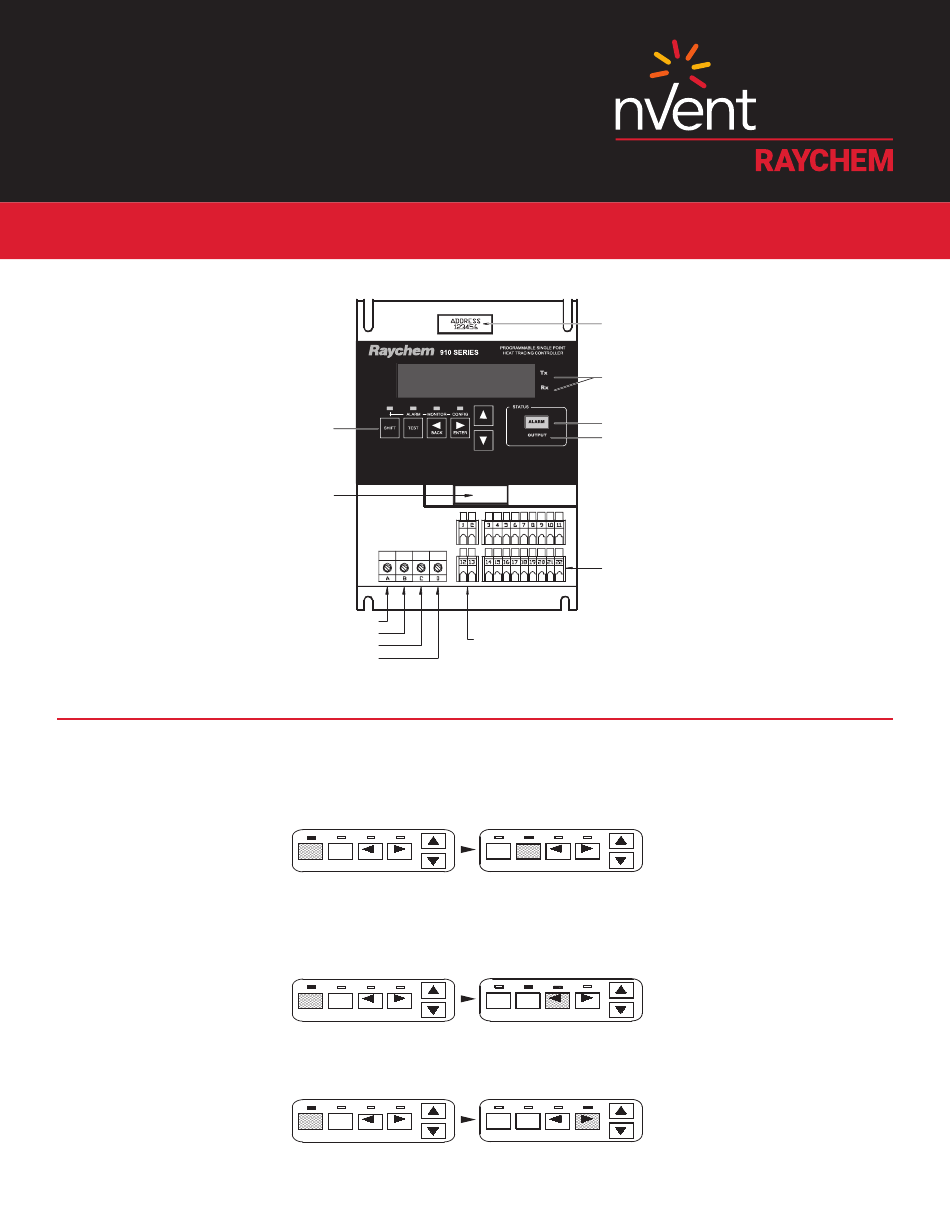

910 QUICK START GUIDE
L1/Line out to heating cable
L2/Neutral out to heating cable
FOUR MODES OF OPERATION
SCAN
Default mode displayed during normal operation. The console sequentially displays load current, temperature, and setpoint readings.
ALARM
Examine or reset any alarms that may exist. The LED above the ALARM key is illuminated while in this mode.
MONITOR
Examine any of the controller readings such as temperature, load current, etc. The LED above the MONITOR key
is illuminated while in this mode.
CONFIGURE
Access the console menus to examine or alter the settings. The LED above the CONFIG key is illuminated while in this mode.
Raychem-AR-H58490-910QuickStart-EN-1805
Keypad
Communications
interface
type label
(optional)
L1/Line in
L2/Neutral in
Press [SHIFT]
ALARM MONITOR CONFIG
SHIFT TEST
BACK ENTER
Press [SHIFT]
MONITOR CONFIG
ALARM
SHIFT
TEST
BACK ENTER
Press [SHIFT]
ALARM MONITOR CONFIG
SHIFT TEST
BACK ENTER
HTCBus
communications address
Communications status
indicators
Alarm status indicator
Output status indicator
RTD, communications,
inhibit/override input,
alarm dry contact output
AC alarm output
Press [TEST]
CONFIG
ALARM MONITOR
SHIFT
TEST
BACK ENTER
Press [BACK]
ALARM MONITOR CONFIG
SHIFT TEST
BACK ENTER
Press [ENTER]
ALARM MONITOR CONFIG
SHIFT
TEST
BACK ENTER
Reference the manual for complete installation instructions.
|
