Rapid Racking WIDE SPAN Assembly Manual page 2

ASSEMBLY - MULTIPLE SIZES
Safety advice: We advise you wear protective gloves when assembling this product.
Tools required: Rubber mallet, electric drill and metric spanners.
C

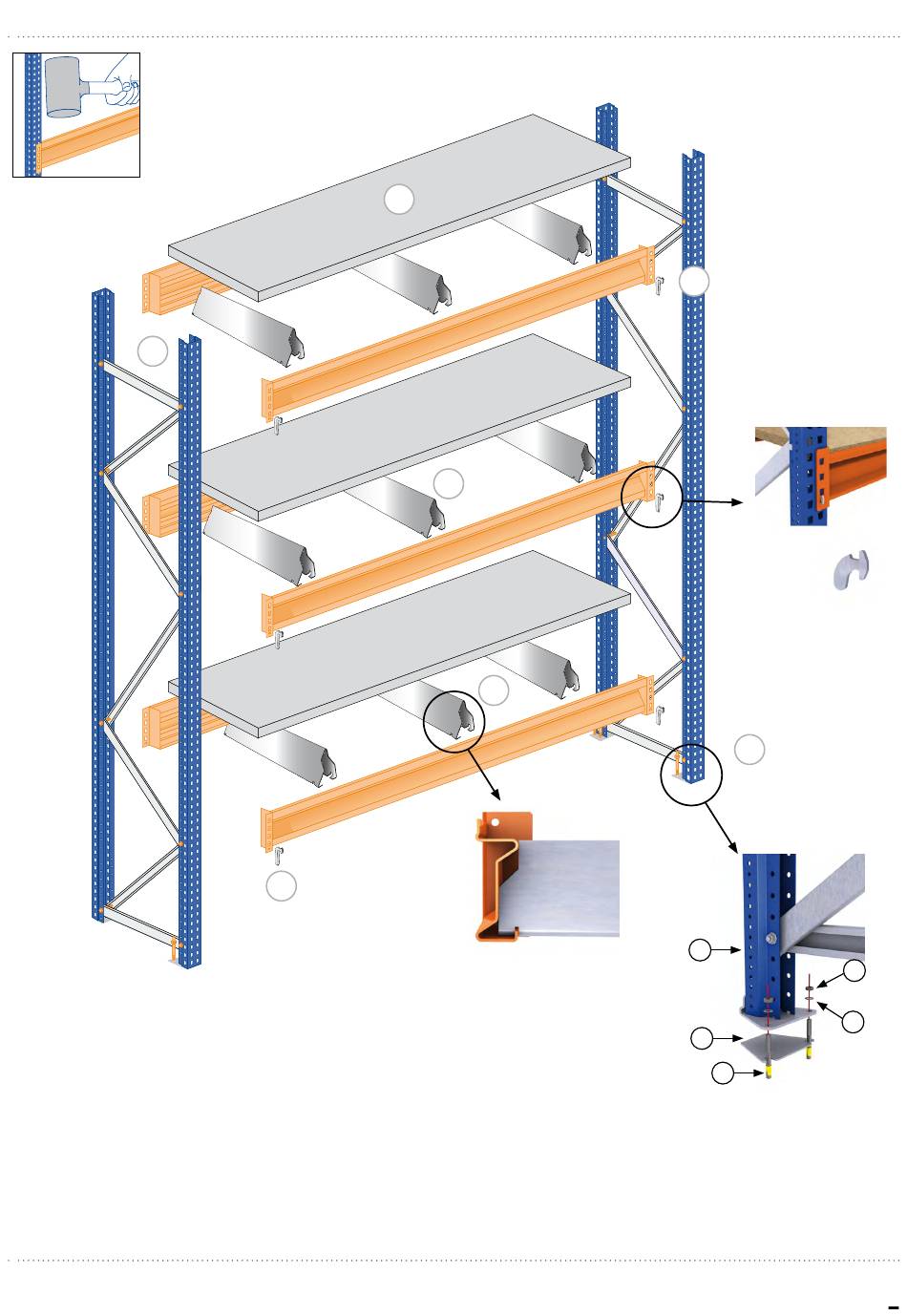

1. Join the upright frames using front and rear beams C, at the desired level.
2. Insert the beam safety clips F.
3. Add shelf supports E where required, and evenly space.
4. Place shelves D onto front and rear beams C.
5. Secure the unit to the floor with the fixings B.
NB: This shelving system is not designed to be loaded by mechanical means, e.g. fork lift truck.
Always load and unload by hand.
If you have any problems with this product or its assembly, please contact The Rapid Racking Team on 01285 686868 for help and advice.
D
E
F
C
A
B
1
3
4
5
2
Posts (1) can be levelled
vertically with shims (5) if
necessary.
Floor fixing with sleeve anchors
(2) is required for bays 2.5m
high or over.
2
