HB Products HBSC2 Instruction Manual
Level switch for detecting liquid co2
Hide thumbs
Also See for HBSC2:
- Quick manual (2 pages) ,
- Quick manual (2 pages) ,
- Instruction manual supplement (6 pages)
Table of Contents
Related Manuals for HB Products HBSC2
Summary of Contents for HB Products HBSC2

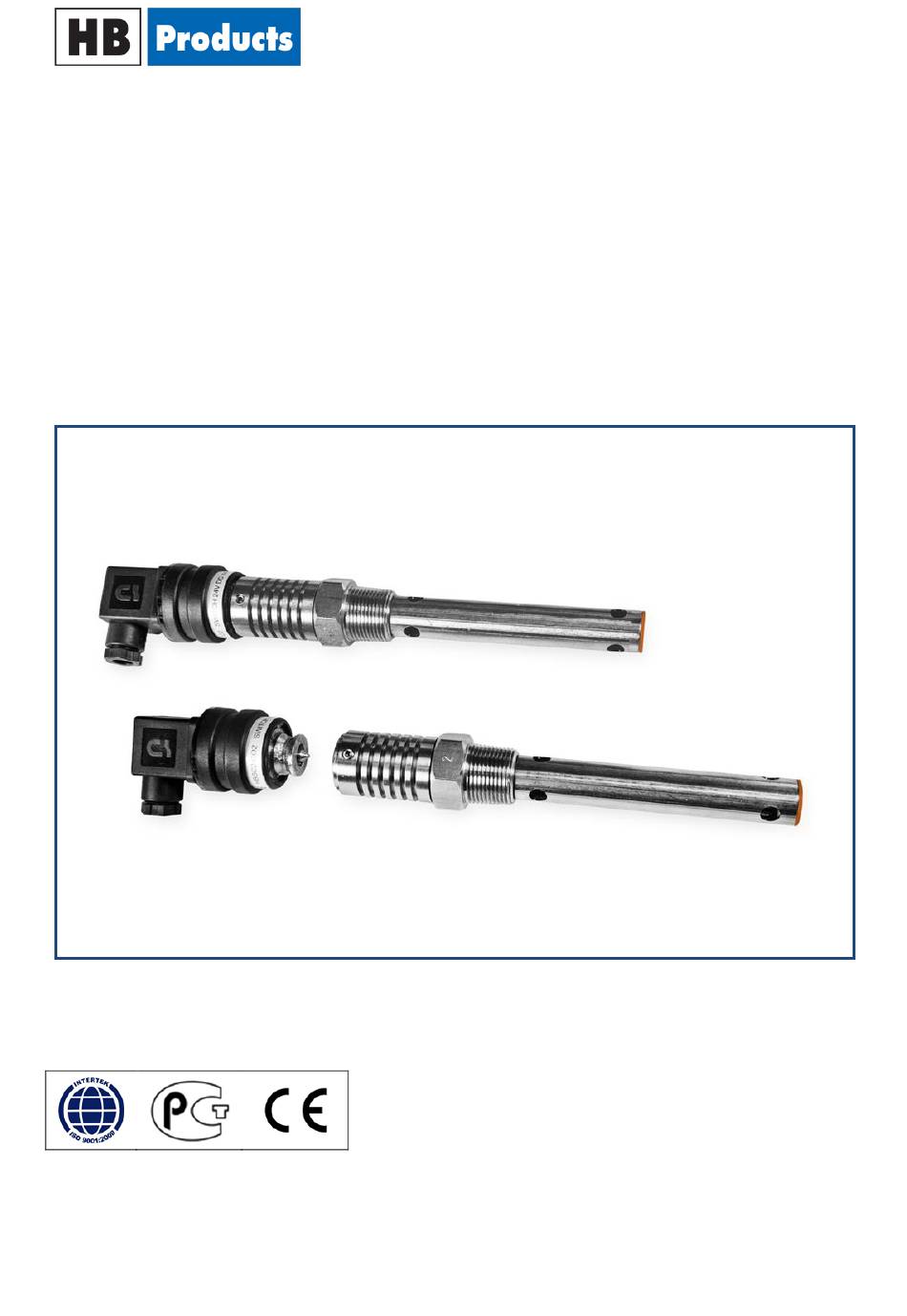

- Page 1 WE INCREASE UPTIME EFFICIENCY IN THE REFRIGERATION INDUSTRY Instruction manual HBSC2 – CO switch For detecting liquid CO in refrigeration systems Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) 1 / 11...
-
Page 2: Table Of Contents
Examples of usage ................6 Installation instructions ..............6 Power connection ................7 Installation guide ................8 LED indication .................. 9 Fault detection ................9 Spare parts:..................11 Further information ............... 11 Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) 2 / 11... -
Page 3: Safety Instructions
If HBSC2 is to be used in a different way or for another purpose, and if the operation of the product in this function is determined to be problematic, prior approval must be obtained from HB Products. -
Page 4: Introduction
When liquid covers the sensor, the measured calibration. capacity changes. HB Products sensors are calibrated so that they differentiate between conductive and non-conductive liquids. In refrigeration systems, the oil, HFCs and liquid CO are not regarded as conductive fluids, whereas refrigerants such as ammonia, and brine are regarded as conductive. -
Page 5: Technical Data
NOTE! Supply Voltage may differ from the data given in the manuals. Applicable will always be the sensor label. Function HBSC2 is a level switch for detecting liquid CO in refrigeration systems. Typically, it is installed in/on the refrigerant container, but it is also suited for installation in other locations where one wants to obtain a level indication. -
Page 6: Examples Of Usage
2mm between the sensor's mechanical part and other fixed or moving parts. CAUTION! In case of welding work on the unit, please make sure that proper earthing is carried out to avoid damaging the electronics. Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) 6 / 11... -
Page 7: Power Connection
Should such HB Product 3ed party insurance coverage is desired, it requires at least our pre-approval of the "Fail Safe" design. This emphasizes that one can NOT currently buy a Fail Safe HB Products switch. Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) -
Page 8: Installation Guide
IN THE REFRIGERATION INDUSTRY Installation guide HBSC2 is installed on a pipe socket depending on the type of thread on the sensor. Sensors with NPT"/BSPT" are sealed with Teflon tape or liquid gasket. For other thread types, solid gasket is used. -
Page 9: Led Indication
The easiest way to carry out fault detection is to have an HB-TEST-ADAPTER available. If the electronics switch the way they are supposed to during the test, you can exclude the possibility of a fault on the senor. Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) 9 / 11... - Page 10 The sensor electronics are completely embedded and can therefore not be repaired. In case of faults with the sensor, it will typically only be necessary to replace the electronics. Complaint cases are handled by the HB Products dealers/distributors. Their complaints procedures must be followed before returning the sensor.
-
Page 11: Spare Parts
HBSC2-MEK-6 Further information For further information, please visit our website, www.hbproducts.dk, or send an email to: support@hbproducts.dk. HB Products A/S – Bøgekildevej 21 – DK8361 Hasselager – support@hbproducts.dk – www.hbproducts.dk Instruction manual – HBSC2 – Refrigeration Switch (HBSC2-009-UK) 11 / 11...
