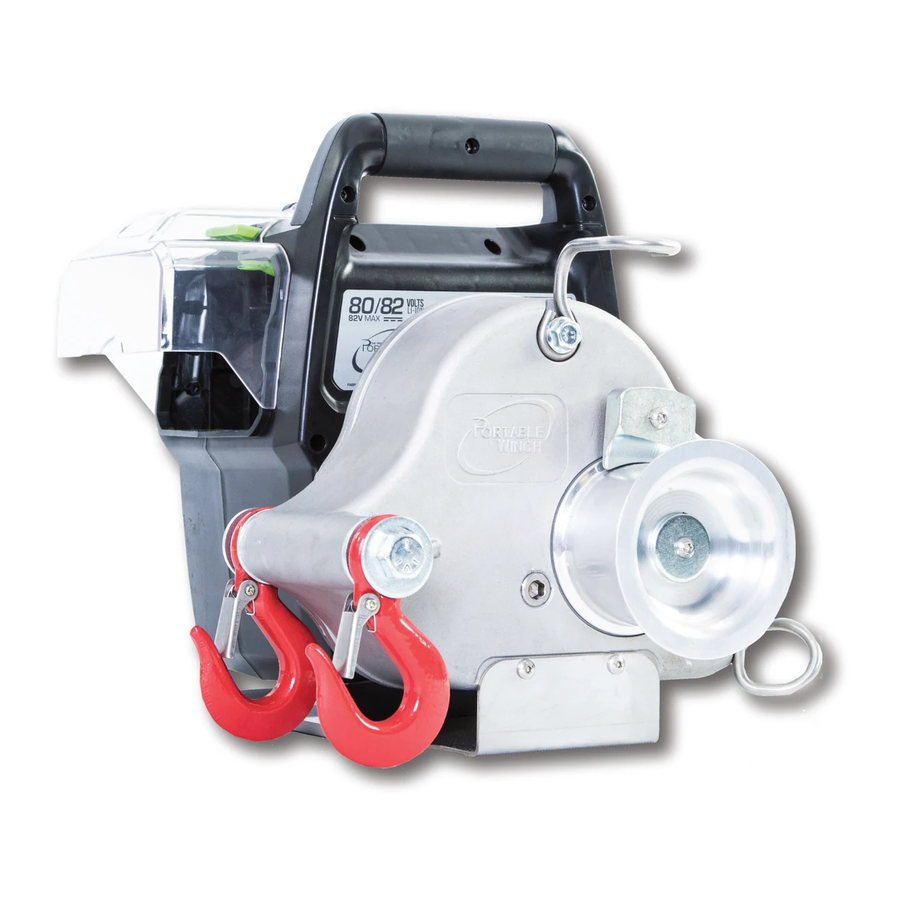

- Page 2 BATTERY ENVIRONMENT PROTECTED FROM THE WEATHER. DO NOT EXPOSE THE CHARGER OR THE BATTERY TO RAIN. Portable Winch Co. wishes to thank you for purchasing a Portable Capstan Winch . This manual was written to help NEVER CHARGE THE BATTERY IN A DAMP you get the best use of your new winch and to use it in the ENVIRONMENT.
- Page 3 We recommend wearing hearing ALL 80V AND 82V BATTERIES MADE BY protection when using GLOBE TOOLS MAY BE USED WITH YOUR PCW3000-Li WINCH. Portable Capstan Winch Here is a non-exclusive list of compatible battery models 1.5. Safety information. GREENWORKS PRO 80V – 2Ah.
- Page 4 NEVER TOUCH CAPSTAN DRUM NEVER WIND THE LINE AROUND YOUR IMMEDIATELY AFTER USE AS IT IS VERY HOT AND MAY BURN YOUR HANDS OR YOUR BODY! ALSO BEWARE OF THE BUILT-UP TENSION SKIN. CLOSE TO YOU AND MAKE SURE THAT YOU ARE A SAFE DISTANCE FROM THIS ACCUMULATION.
- Page 5 Only use a line with low elasticity. We recommend a double Hold the handle to remove the battery. braid polyester line. Min, max and recommended diameters, PCW3000-Li: Min: 10 mm Max: 13 mm Recommended: 10 mm ...
- Page 6 DO NOT USE A 3-STRAND YELLOW 3.5 Anchoring the winch PROPYLENE LINE! OPTION 1: POLYPROPYLENE AND POLYETHYLENE LINES ARE DANGEROUS In most cases, the winch is anchored to a fixed object using FOR PULLING DUE TO THEIR SIGNIFICANT ELASTICITY AND a polyester sling or one of our optional anchors and the line THEIR LOW MELTING POINT.
- Page 7 3.6.4 On a slope AVOID INSTALLING THE SLING ON SHARP CORNERS LIKELY TO DAMAGE THE POLYESTER SLING. WHEN YOU USE A POLE, A TREE OR A STUMP AS AN ANCHORING POINT, INSTALL THE NEVER PULL A LOAD ALONG A DESCENDING SLING CLOSE TO THE BASE.
- Page 8 3.7.2 Pulling 2) Complete two turns of line around the exit hook before When pulling, position yourself so that you can see the removing the tension from your hands. winch and the load. Pull on the line HORIZONTALLY. The tension you exert on the line keeps the winch level. 3) Then do two half-knots around the exit hook.
- Page 9 4.3 Charger and battery 4.3.1 Charger THE BATTERY IS NOT FULLY CHARGED. WE RECOMMEND CHARGING THE BATTERY FULLY BEFORE THE FIRST USE TO ACHIEVE A MAXIMUM OPERATING TIME. THIS LITHIUM-ION BATTERY HAS NO MEMORY AND CAN BE CHARGED AT YOUR DISCRETION. 4.3.1.1 Low-voltage charging: FIG.
- Page 10 Serviced by Portable Winch Co. or its retailers. Never try to remove or destroy any battery component. Portable Winch Co. will replace or repair, at its discretion, any Do NOT open the battery. faulty products. All other Portable Winch Co. accessories are ...
- Page 11 A 87.1 dB(A). A de 90 dB(A) with uncertainty included KwA = 2.5dB. 5.8 Manufacturer The Portable Capstan Winches are manufactured by: Portable Winch Co. 1170 Thomas-Tremblay St. Sherbrooke, Québec, J1G 5G5, CANADA Telephone: +1 819 563-2193 Freephone (CAN & USA): 1-888-388-7855 Fax: + 1 514 227-5196 E-mail: info@portablewinch.com Website:...
-
Page 12: Ce Declaration Of Conformity
5.9 CE DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY PORTABLE WINCH CO. Located 1170 Thomas-Tremblay St. Sherbrooke, QC J1G 5G5 CANADA Tel.: +1 819 563-2193 www.portablewinch.com Declare, under our sole responsibility that the product: Portable Capstan Winch Models PCW3000-Li Engine 1.0kW Serial no.: 32180000 and over... - Page 13 5.10 Exploded view VIEW # PART # DESCRIPTION 10-0431 BATTERY COVER 10-0432 ELECTRIC POWER HEAD 1.0 kW - BLACK 10-0133 ENGINE COUPLING PLATE 10-0132 ALUMINIUM COUPLING PART FOR ENGINE 32-0007 SHCS M8-1.25 X 16 MM - BLACK 32-0056 INDENTED HEX FLANGE BOLT M6-1.0 X 20 mm - ZN 44-0025 LABEL - LINE INSTALLATION 10-0415...
- Page 14 www.portablewinch.com info@portablewinch.com 1 888 388-7855 / +1 819-563-2193 Rev: 00 (2018-08-31) Written and published in Canada 44-0188...
