8.4 Return to factory calibration ........................10 8.5 Loop adjustment and calibration in the field ..................10 8.6 S07 individual adjustment ........................10 9.0 Functional and accuracy check of SRH400 basic unit .................10 9.1 SRH400 check using the display ......................11 9.2 Check the SRH400 outputs ........................11 9.3 Humidity check...
The operation manual may not be used for the purposes of must be authorized by the plant operator to carry out the competition without the written consent of Setra Systems, mentioned activities. Inc. and may not be forwarded to third parties. Copies may •...

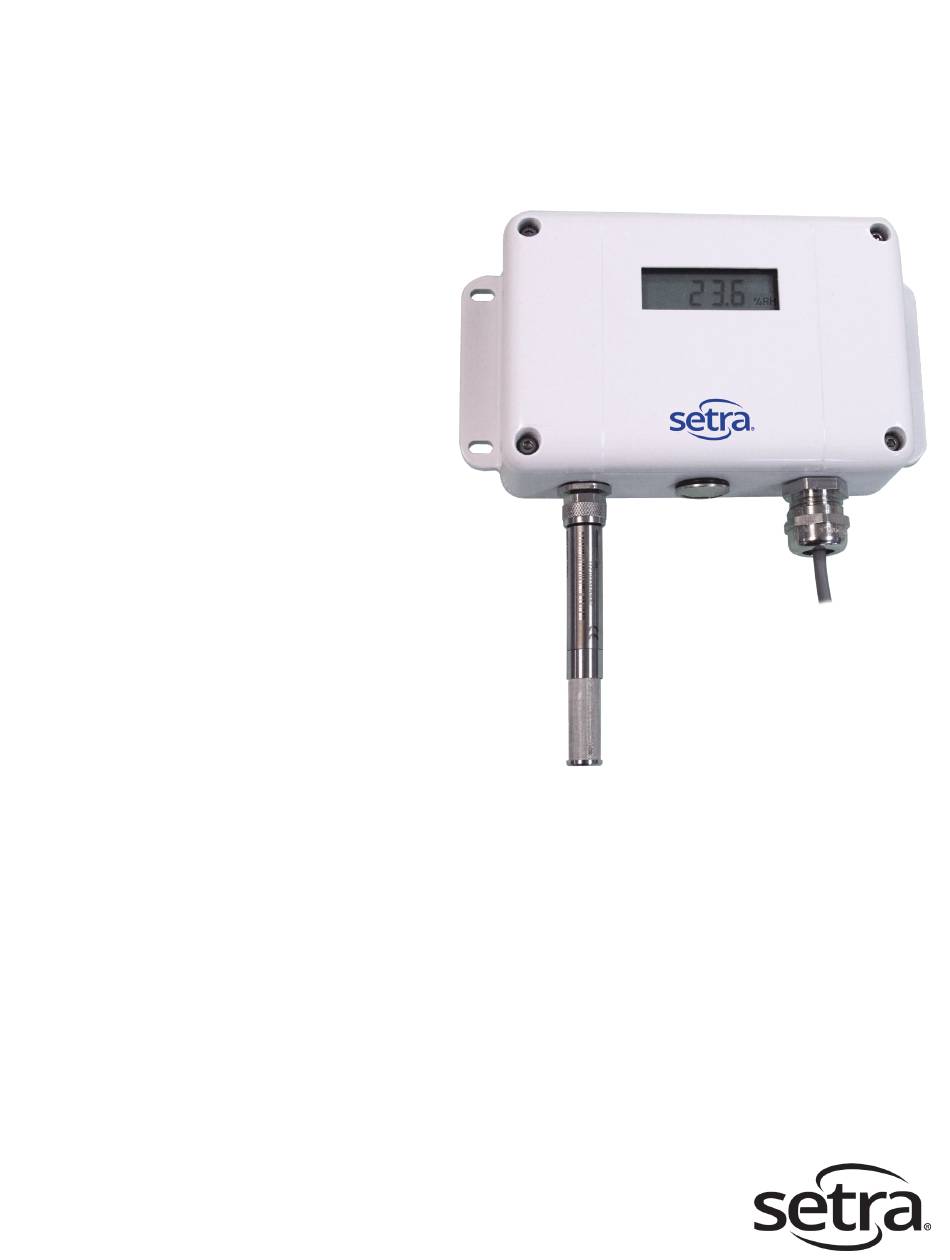

SRH400 Operating Instructions 4.2 Connecting the sensing probes The probes can be also connected to the SRH400 housing with extension cables, see chapter “11. Accessories”. The The humidity (RH) probe or the combined humidity and probe may be mounted pointing upwards or downwards.
Setra original extension cables to SRH400. • SRH400 with metal enclosure must be grounded either at the designated points on the inside, or outside at the mounting plate. The probe must not be grounded; it must be electrically isolated from the GND.
SRH400 Operating Instructions 7.0 User interface Voltage output version 1. Jumper 4-20 mA version 2. Display 3. Calib Led 4. Push-Button S1 5. Push-Button S2 1. JUMPER: • Selection of output signals and of calibration mode Voltage output 4-20 mA output...
& T probe, both RH and T check shall be performed with each reference probe connected at the single probe connection socket. For SRH400 basic unit ordered with for two separate RH and RH probe T probe T probes, the RH check shall be done with each reference Figure 3.
9.1 SRH400 check using the display If the SRH400 basic unit features a display, as soon as the reference probe is connected the display shall show the corresponding RH and T reference values. 9.2 Check of the SRH400 outputs For the SRH400 with voltage output, a voltmeter shall be connected as in Fig. 5.
SRH400 Operating Instructions 9.4 Temperature check The output signal depends on the scaling of the temperature output. For current output: Iout [mA] = (16*(Ref/Tmax)) + 4 mA For voltage output: Uout [V] = (Abb*(Ref/Tmax)) Where: Abb ...... voltage scaling (1 V, 5 V, 10 V) Ref .......
SRH400 Operating Instructions 12.0 Returning products for repair Please contact a Setra application engineer (800-257-3872, 978-263-1400) before returning unit for repair to review information relative to your application. Many times only minor field adjustments may be necessary. If a return is required please call 1-800- 257-3872 or email orders@setra.com to obtain an RMA number before sending unit(s) back to us.
