AVFI SYZ42 stand Assembly Instructions

Assembly Instructions
SYZ42
Stand
Thank you for purchasing AVFI's SYZ42 Stand
This product is design for free standing mounting of SMART kapp 42® and up to 60" screen up to 75 lbs.
For portrait setup VESA pattern must be centered; 400mm X 400mm, 400mm X 200mm ONLY
Confirm all hardware is included before you begin assembly.
Read these instructions start to finish before beginning installation.
Have at least 2 people mount the display.
Note: If you cannot understand these instructions or are concerned about safety of the installation contact a qualified
contractor or contact VFI at 1-877-834-3876

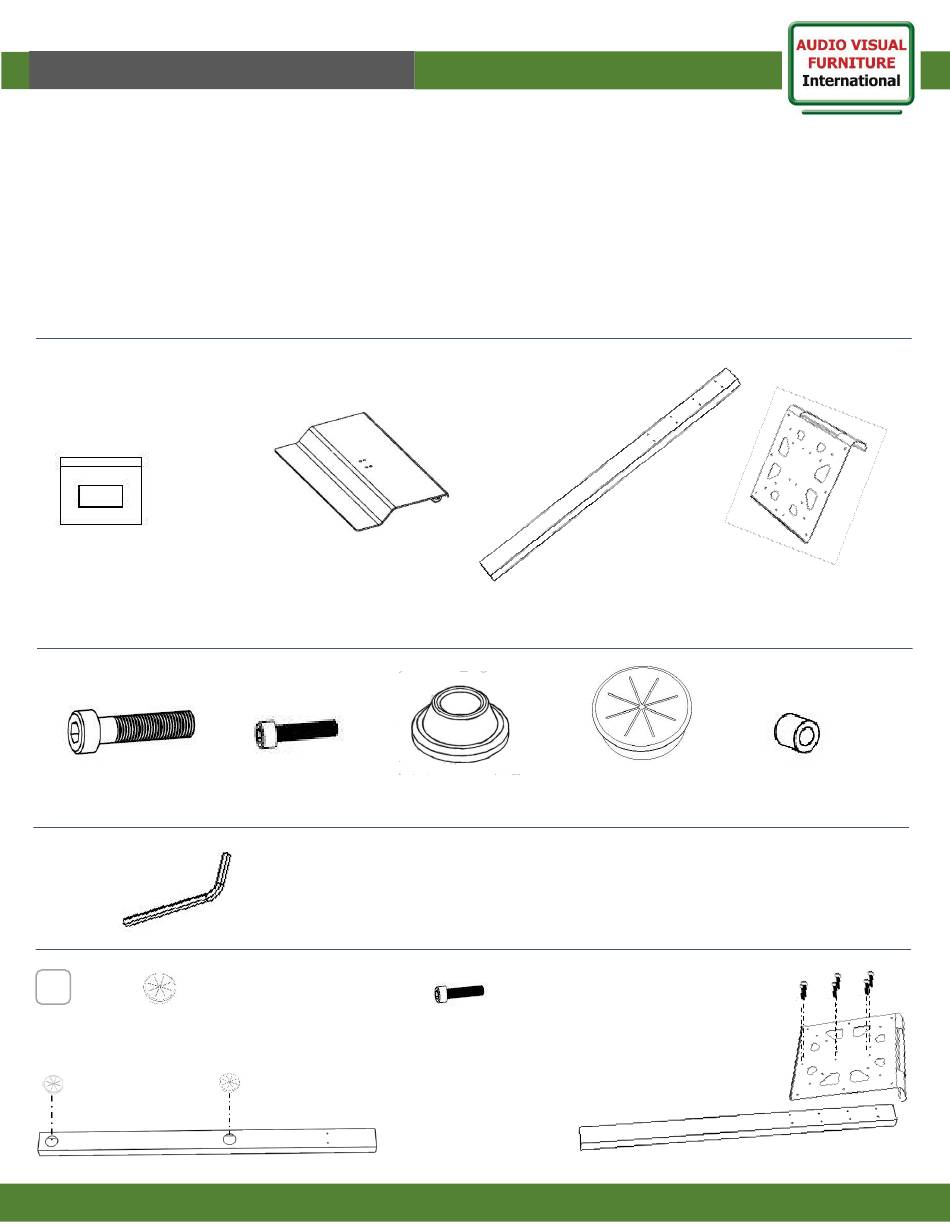

Supplied Parts

•
Kit S 42-84
•
Kit TV52-70
•
Kit Grommet &
Adhesive Bumper
Hardware Bag
(3)

Supplied Hardware for Kapp 42

M10 X 35
(4)

Tools required

1

Grommet (2)
Place parts on non abrasive surface
Install grommets onto the holes of the tube
www.video-furn.com www.video-furn.com
Base with wheels
(1)
Adhesive Bumper
M6 X 25
(1)
(10)
Hex Key M6 (Supplied in Hardware Kit S 42-84)
Hex Key M10 (Supplied in Hardware Kit TV 52-70)
Not all hardware supplied will be used, depending on the manufacturer of your display.
Install plate onto the structure tube
Insert M6 x 25 (6) starting from the top
of the tube to position bracket onto highest
height
Structural Tube
(1)
Adhesive Bumper
(2)
M6 X 25 (6)
190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876 190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876
V
F
I
Bracket
(1)
Black Spacer
(4)
1
