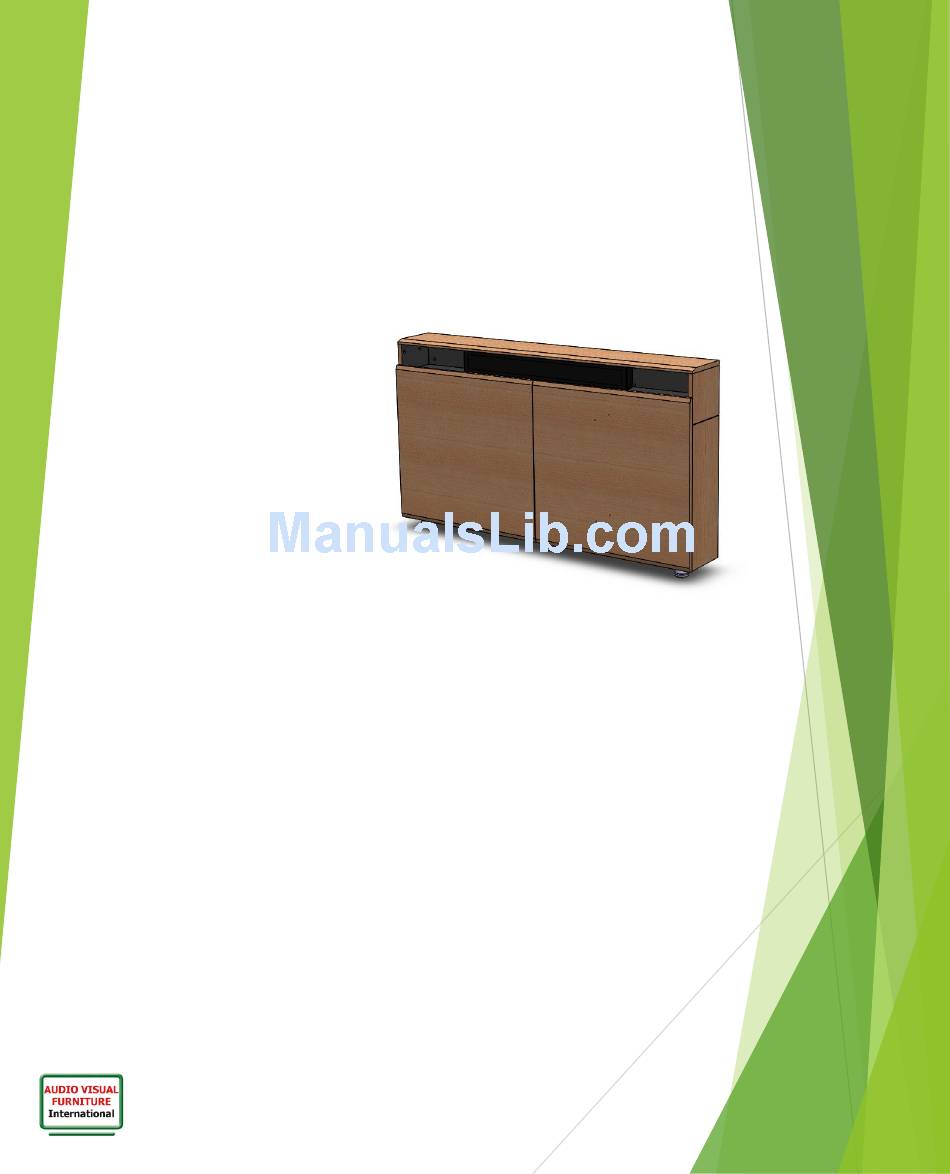

- Page 1 CR2-WM Instructions www.video-furn.com 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | Ver. 1.0 1.877.834.3876...
-
Page 2: Tools Required
Parts Included Legs Hardware Bag CR2-WM Credenza Hardware Included in HW bag. Toggle Washer LAG Bolt Bolt Shield Anchor Tools Required Not Included Socket set Drill bit set Drill Stud Finder If Drywall... - Page 3 Locate studs using stud finder and mark Approx 23” above floor height. Follow Masonry step below to line up studs. Masonry wall Place CR2-WM against wall at desired location And mark 4 hole locations through holes at Back of unit. Baseboard trim May need to cut away.
- Page 4 Assembly Instructions Step 3 Continued Attach Fasteners to wall Drywall/steel stud Wood Stud Masonry 1 / 4 “Drill 1 / 2 “ Drill Lag Shield 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | www.video-furn.com 1.877.834.3876...
- Page 5 Max depth 25” Up to 4x 120mm Side doors Fans can be For access to Added underneath. System On/Off Step 5 Reinstall Panels. Finished Thanks for Purchasing AVFI. Have a great day. 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | www.video-furn.com 1.877.834.3876...
