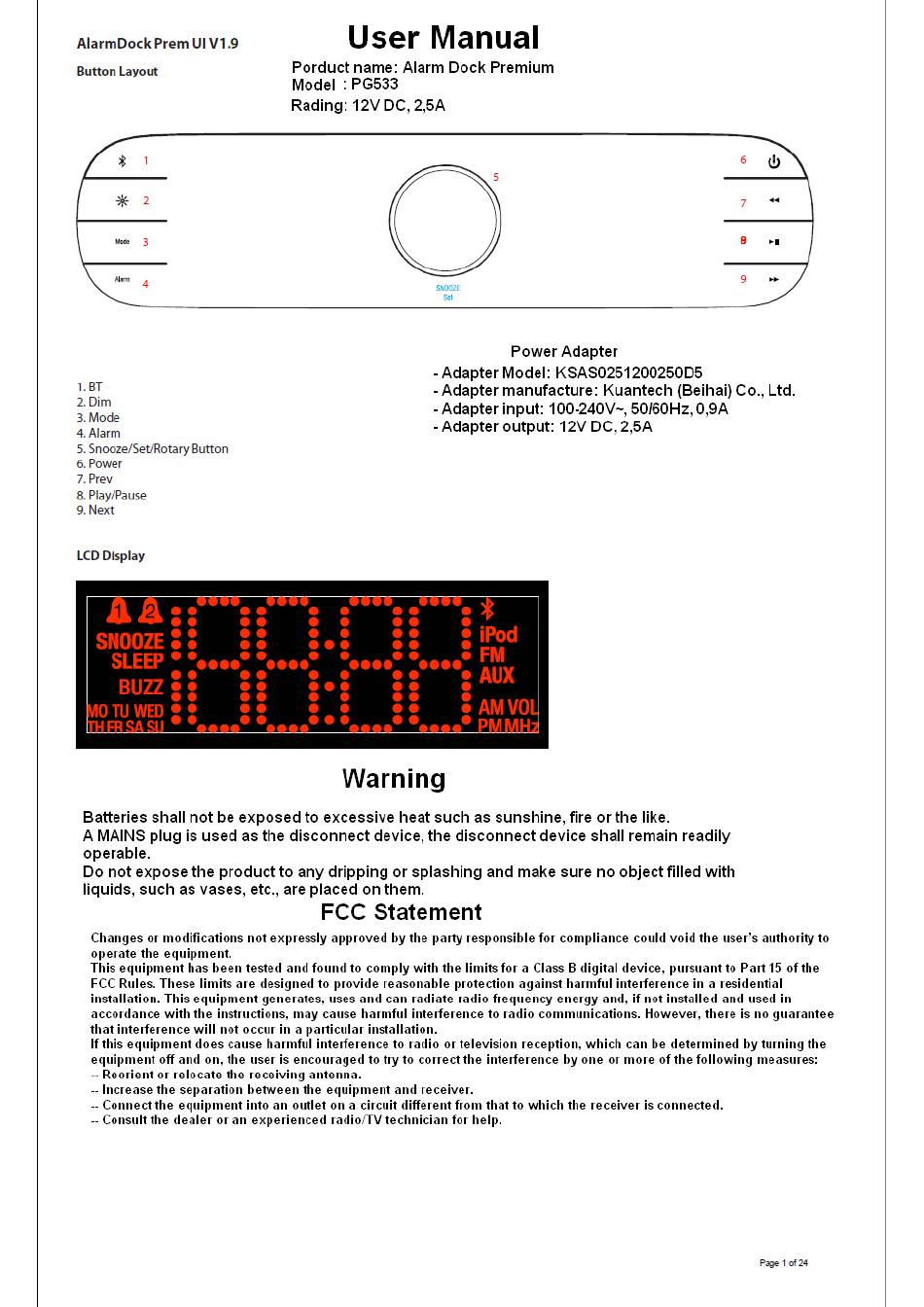

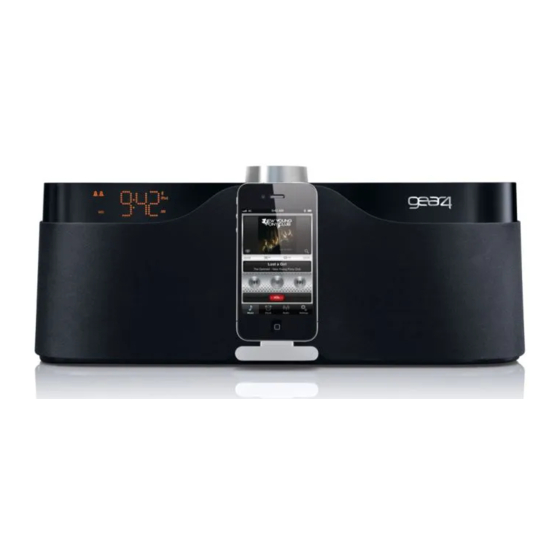

- Page 2 AlarmDock Prem UI V1.9 Revisions Date Version Changes 24/2/11 V1.1 Default Mode when switched on Dim levels Volume Snooze included 2/3/11 V1.2 Remote 8/3/11 V1.3 Rotary click defined Brightness settings changed 11/4/11 V1.4 Sub Tree defined Presets Feedback loop 14/5/11 V1.5 Removed remote functionality Added BT connection model...
- Page 3 AlarmDock Prem UI V1.9 Rotary Button (One audio/physical click per incremental step of selection) 1 click 1 click Page 3 of 24...
- Page 4 AlarmDock Prem UI V1.9 On and Standby/Off Mode Display sequence for when speaker is turned on/off manually Buttons Used: Power button ‘’ON’ will display for 2 seconds Brightness Level: 7/7 N.B. Any buttons pressed within the 2 seconds of ‘ON’ showing will have normal functionality and override the ‘ON’...
- Page 5 AlarmDock Prem UI V1.9 Modes How to change modes and order of sequence Only accessible when speaker is ON Buttons Used: Mode Default display when in iPod mode iPod Mode Press ‘Mode’ (short/long press) Press ‘Mode’ (short/long press) Default display when in FM mode Display changes back to clock display after timeout (5s)
- Page 6 AlarmDock Prem UI V1.9 Transport Buttons iPod Mode Short press Skips to prev track Skips to next track Play/pauses track Long press Rewinds current track by 10 seconds per second F.Forward current track by 10 seconds per second FM Mode Short Press Decreases FM frequency by 0.1 Increases FM frequency by 0.1...
- Page 7 AlarmDock Prem UI V1.9 Volume (Only accessible when speaker is in ON mode) Turning the rotary button will bring up the volume display (This will only occur if the speaker is not currently in any setup processes, e.g setting alarms, time, mode) Volume level: 0 - 40 Clockwise turn: Volume UP Anti Clockwise turn: Volume DOWN...
- Page 8 AlarmDock Prem UI V1.9 Time Setting (only available when speaker is on Standby) Display sequence for setting the time Buttons Used: Set Button Press Set Button - Rotary Function No Activity for 5s Set Button pressed (Short/Long press) 12h will begin to flash instantly 0.5s 0.5s off Use rotary button to scroll between 12h and 24h...
- Page 9 AlarmDock Prem UI V1.9 Alarm Setting Sequence Display sequence for setting the alarms Accessible when speaker is ON or Standby Buttons Used: Set Button Press Set Button - Rotary Function Power Button To set alarm 1, Alarm 1 icon must be illuminated ONLY To set alarm 2, Alarm 2 icon must be illuminated ONLY Alarm Button pressed (long) Hour digits will begin to flash instantly.
- Page 10 AlarmDock Prem UI V1.9 Alarm Setting Sequence Display sequence for setting the alarms Accessible when speaker is ON or Standby Buttons Used: Volume will be displayed. Set Button Press Turn rotary button to set alarm volume. Set Button - Rotary Function (track skip buttons can Power Button also be used instead of rotary button)
- Page 11 AlarmDock Prem UI V1.9 Alarm Button Sequence Activating and deactivating alarms Accessible when speaker is ON or Standby Buttons Used Alarm Button Alarm Button pressed (short or long) Alarm Button pressed (short or long) Alarm button pressed Alarm button pressed (Short press) (Short press) Alarm 1 icon will be activated...
- Page 12 AlarmDock Prem UI V1.9 Sleep Sequence How to access sleep function Only accessible when speaker is ON Buttons Used: Set Button Press Set button - Rotary function Set Button is pressed No Activity for 5s ‘10’ will flash immediately, Turn Rotary button to scroll between sleep timer ‘10, 20,30,45,60, OFF’...
- Page 13 AlarmDock Prem UI V1.9 Snooze Sequence of display for when an alarm rings Buttons Used: Snooze (Set Button) Power Button FM Mode AUX mode Pressing during alarm ring stops the alarm and returns the speaker and display back to what it was prior the alarm ring When Alarm is ringing, the alarm icon will flash: 0.5s on, 0.5s off.
- Page 14 AlarmDock Prem UI V1.9 Presets (FM Mode Only) How to cycle through set Presets Buttons Used: Play/Pause Play/Pause button pressed (short) Pr 01 will display for 1 second Preset 1’s station will then display FM will tune into this frequency Play/Pause button pressed (short) Pr 02 will display for 1 second Preset 2’s station will then display...
- Page 15 AlarmDock Prem UI V1.9 Saving Presets (FM Mode Only) Buttons Used: Play/Pause Button Rotary Button Set Button Play/Pause button pressed (long) ‘01’ will being to flash. Turn the rotary button to cycle through the presets: Pr 01 Pr 02 Pr 03..Pr 05 (Track skip buttons can also be used instead of Rotary button) Set button / Play button pressed No activity for 5s ->...
- Page 16 AlarmDock Prem UI V1.9 BT - Pairing iPhone to speaker Only accessible when speaker is ON Buttons Used: BT Button HouseParty HouseParty Press and hold BT button for 6 seconds Speaker will enter pairing mode BT icon: Flashing 200ms ON 200ms OFF Settings >...
- Page 17 AlarmDock Prem UI V1.9 BT - Connection Model Refer to P1050 Connection Model document Buttons Used: BT Button During Standby BT is in connectable state BT icon is off BT Button on speaker will carry no functionality when speaker is in Standby I.e. cannot access pairing mode when unit is in standby. Speaker will enter ON Mode if a paired device is connected via BT’s setting menu: Further functionality through app: Bluetooth disconnection timer (0min - 6days) Default: 30 mins (TBC after testing)
- Page 18 AlarmDock Prem UI V1.9 BT - SmartLink app App interaction when docked and undocked Buttons Used: BT Button iPhone/iPod Touch docked When iPod Touch/iPhone is docked BT icon: Off iPhone/iTouch and App is connected to speaker via 30 pin connector iPhone/iPod Touch Undocked (Assuming both device and speaker have been previously paired and iPhone BT is switched on) 1) iPhone is undocked...
- Page 19 AlarmDock Prem UI V1.9 iPhone/iPod Touch docked (Assuming both device and speaker have been previously paired and iPhone BT is switched on) 1) App connected via BT 2) Docking iPhone 3) Connection time <3s Page 19 of 24...
- Page 20 AlarmDock Prem UI V1.9 Speaker and App Interaction Music Player interface: Buttons required for speaker interaction: - Play/Pause - Track Skips - Volume - Menu Tabs (Modes) - Power button (Turning speaker on/off ) TBC - EQ panel: 5 Presets EQ Settings Bass button Hi Frequency Button...
- Page 21 AlarmDock Prem UI V1.9 Speaker and App Interaction FM Interface: Buttons required for speaker interaction: - Frequency bar - Preset Stations - Tune - Volume - Menu Tabs (Modes) - Power button (Turning speaker on/off ) TBC App only buttons (No interaction with speaker): - Edit Settings Page Alarms:...
-
Page 22: Bluetooth Settings
AlarmDock Prem UI V1.9 Speaker and App Interaction Clock Able to change 12/24hr mode 3) Time on display will also switch to 24 hour clock 1) 24-hour clock: ON 1) Time in clock displays changes to 24 hour 3) Time on display will also be 12 hour 1) Time in clock displays changes to12 hour 1) 24-hour clock: OFF Bluetooth Settings... - Page 23 AlarmDock Prem UI V1.9 Speaker and App Interaction Advanced Settings Enabling/Disabling Auto Launch and Auto ON Page 23 of 24...
- Page 24 Page 24 of 24...
