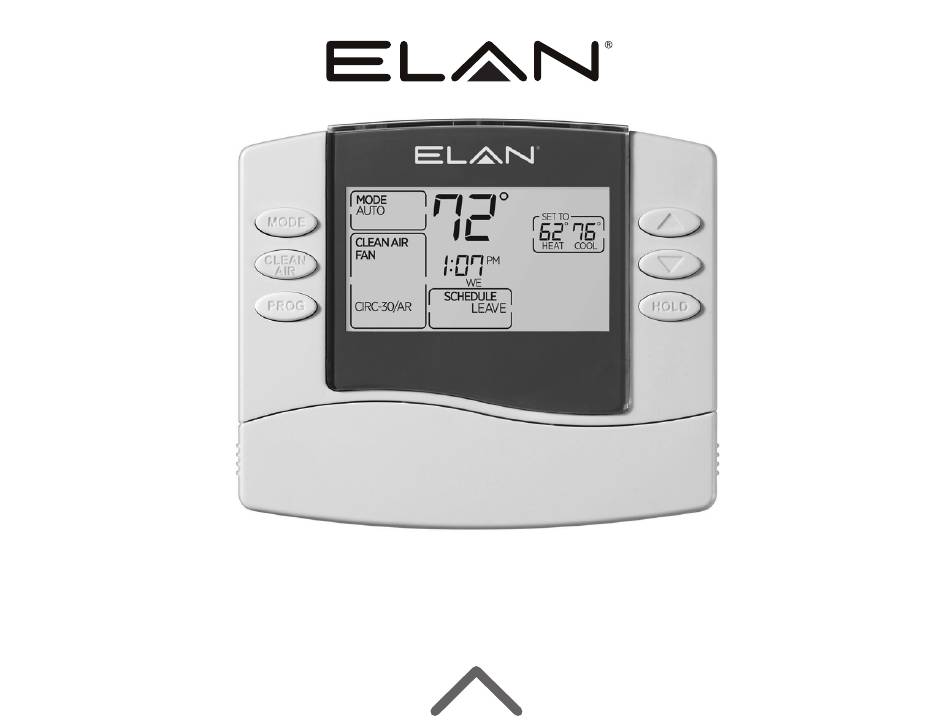

- Page 1 EL-TSTAT-8810 Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS EL-TSTAT-8810 TABLE OF CONTENTS ABOUT YOUR NEW THERMOSTAT Thermostat features ___________________________________________________________________ 3 Controls & display overview ______________________________________________________________ 4 WI-FI SETUP _______________________________________________________________ OPERATION & PROGRAMMING Select system mode (OFF/HEAT/EM-HEAT/COOL) _______________________________________________ 7 Change temperature setting _____________________________________________________________ 7 Select Event-Based™ air cleaning setting ____________________________________________________ 8... -
Page 3: About Your New Thermostat
Do not substitute or use any other power supply other than the This product contains sensitive electrical components that may enclosed unit, or a ELAN approved replacement. be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly Do not disassemble the unit for any reason. -
Page 4: Controls & Display Overview

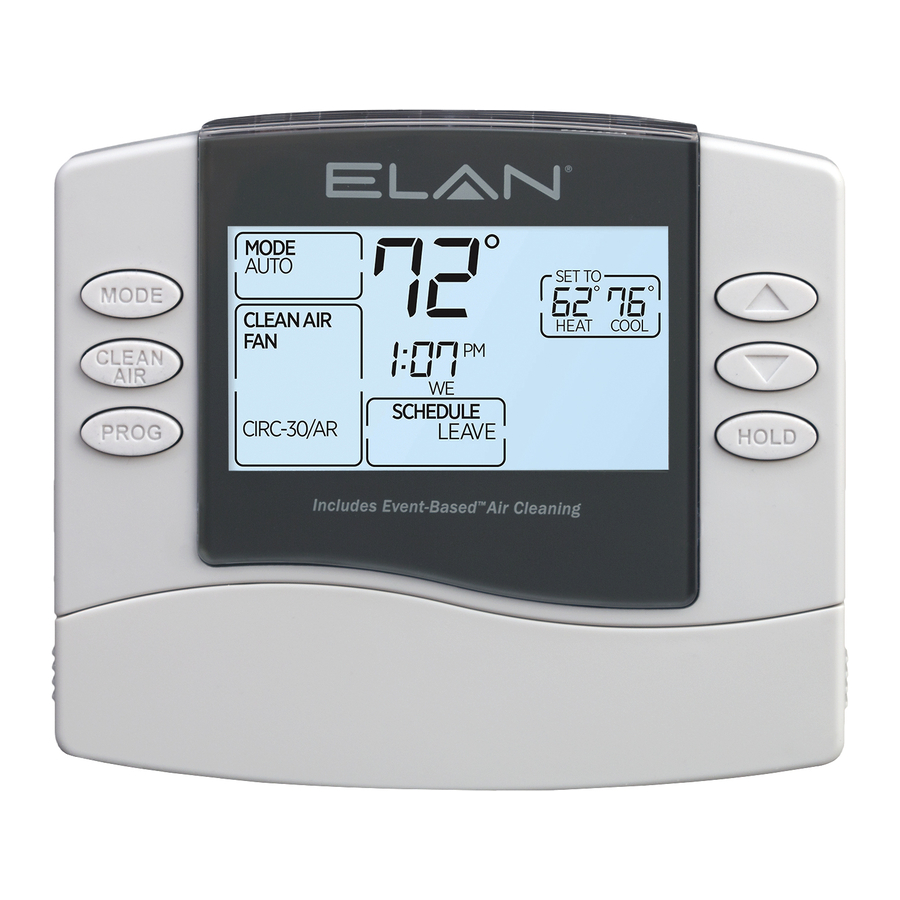

ABOUT YOUR NEW THERMOSTAT EL-TSTAT-8810 CONTROLS & DISPLAY OVERVIEW CURRENT INDOOR TEMPERATURE CURRENT TIME OUTDOOR TEMPERATURE (OPTIONAL) SYSTEM MODE SETTING TEMPERATURE SETTING EQUIPMENT STATUS CLEAN AIR SETTING SYSTEM MODE DOWN CLEAN AIR HOLD PROGRAM INDICATORS SHOW THROUGH HOUSING HEAT PUMP ONLY... -
Page 5: Wi-Fi Setup
If you are not connecting your thermostat to a control system and plan to only control the unit from its touchpanel, you do not need to enable WiFi. To connect the EL-TSTAT-8810 thermostat to a Wi-Fi network follow the steps below. Note: You will need a computer or mobile device with Wi-Fi and a web browser. -
Page 6: Wi-Fi Setup
WI-FI SET UP EL-TSTAT-8810 WI-FI SET UP (Continued) STEP 2 STEP 3 Connect to the thermostat using Verify the thermostat is connected a computer or mobile device. to the Wi-Fi network. On your computer or mobile device, scan for Once all the required information is entered in the available networks. -
Page 7: Operation & Programming
OPERATION & PROGRAMMING When connected to an ELAN controller, it is recommended that you use the scheduling functions within ELAN to control the thermostats. If you are installing thermostats outside of an ELAN environment, you can use the programming functions described below. -
Page 8: Select Event-Based Air Cleaning Setting
OPERATION & PROGRAMMING EL-TSTAT-8810 OPERATION & PROGRAMMING (Continued) SELECT EVENT-BASED AIR CLEANING SETTING CIRC-30/HR: The air cleaner will run a minimum of ™ 30 minutes every hour. The air cleaner will monitor the amount of time your heating and cooling system runs;... -
Page 9: Set Time And Day
If the thermostat is configured to be The hour is flashing. used with an ELAN account the thermostat’s time and date will be updated periodically, and will update automatically for daylight savings. UNDERSTANDING PROGRAM SCHEDULES The daily schedule is split into four sections: WAKE: 6am-8am –... -
Page 10: Understanding Program Schedules
OPERATION & PROGRAMMING EL-TSTAT-8810 UNDERSTANDING PROGRAM SCHEDULES Setpoint Event Event designator Start time Heat Cool WAKE 6:00AM 70°F (21°C) 78°F (25.5°C) LEAVE 8:00AM 62°F (16.5°C) 85°F (29.5°C) RETURN 5:00PM 70°F (21°C) 78°F (25.5°C) SLEEP 10:00PM 62°F (16.5°C) 82°F (27.5°C) PROGRESSIVE RECOVERY... -
Page 11: Changing Program Schedules
OPERATION & PROGRAMMING EL-TSTAT-8810 CHANGING PROGRAM SCHEDULES 1. Press twice to enter program setting mode. 5. Press , CLEAN AIR/FAN setting flashes. Start time of the WAKE event is flashing. Press to adjust the clean air/fan setting. 2. Press 6. Press... -
Page 12: Program Schedule Overrides (Temporary, Permanent)
OPERATION & PROGRAMMING EL-TSTAT-8810 PROGRAM SCHEDULE OVERRIDES (TEMPORARY, PERMANENT, AWAY, HEAT BLAST) TEMPORARY PROGRAM OVERRIDE PERMANENT HOLD Press Press to immediately adjust to permanently hold the temperature at the temperature. This will temporarily override the its current setting. This will override the temperature... - Page 13 OPERATION & PROGRAMMING EL-TSTAT-8810 PROGRAM SCHEDULE OVERRIDES (TEMPORARY, PERMANENT, AWAY, HEAT BLAST) AWAY HEAT BLAST ® The Away feature, if enabled, allows the thermostat to The Heat Blast feature will raise the current room ® be set to a predefined setpoint(s) by simply pressing temperature by 3°F to 5°F based on the Installer...
-
Page 14: Wi-Fi Maintenance And Troubleshooting
WI-FI MAINTENANCE AND TROUBLESHOOTING EL-TSTAT-8810 ACCESSING WI-FI SETTINGS MENU The following instructions explain how to enter the Wi-Fi Press to change the setting. Settings menu and change settings. The table on page Press to change to the next option. 15 describes each setting. Default settings are shown in bold. -
Page 15: Clearing Router Settings
WI-FI MAINTENANCE AND TROUBLESHOOTING EL-TSTAT-8810 ACCESSING WI-FI SETTINGS MENU Factory default setting Wi-Fi setting Description (bold) and setting range 0: No 47. Wi-Fi Disconnect and Disconnects the Thermostat from the router and clears the Wi-Fi Clear Settings settings. Use this to set the thermostat back to provisioning mode so it 1: Yes can be connected to a new Wi-Fi router. -
Page 16: Disabling The Wi-Fi Radio
WI-FI MAINTENANCE AND TROUBLESHOOTING EL-TSTAT-8810 DISABLING THE WI-FI RADIO To turn off the Wi-Fi radio on the thermostat, enter the Wi-Fi settings menu as described in the Accessing Wi-Fi Settings Menu section on page 14. Change the setting for Turn Wi-Fi Radio On/Off to Off and then press , “DONE”... - Page 17 Confirm there is no IP conflict and all bars. repeat Wi-Fi setup. Note: If the thermostat is configured to work with an ELAN account this indicates that the thermostat cannot connect to the ELAN web interface. Confirm that the internet connection is working.
-
Page 18: Limited Warranty And Registration
WARRANTY / FCC DECLARATION EL-TSTAT-8810 ELECTRONIC THERMOSTAT FIVE YEAR LIMITED WARRANTY Your ELAN Thermostat unit is expressly warranted for five (5) years QUALIFIED HEATING AND AIR CONDITIONING CONTRACTOR. IF THE from date of installation to be free from defects in materials or LIMITED WARRANTY IS VOID DUE TO FAILURE TO USE A QUALIFIED workmanship. - Page 19 FCC DECLARATION / IC STATEMENT EL-TSTAT-8810 FCC DECLARATION IC STATEMENT (Continued) FCC Interference Statement (Part 15.105 (b)) RSS-GEN, Sec. 7.1.2 Under Industry Canada regulations, this radio transmitter may only This equipment has been tested and found to comply with the limits operate using an antenna of a type and maximum (or lesser) gain for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 20 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International 1 (707) 283-5901 - Fax web: elanhomesystems.com 10018964 Rev-A0, 10/2017 © 2017 ELAN is a registered trademark of Core Brands, LLC. ®...
