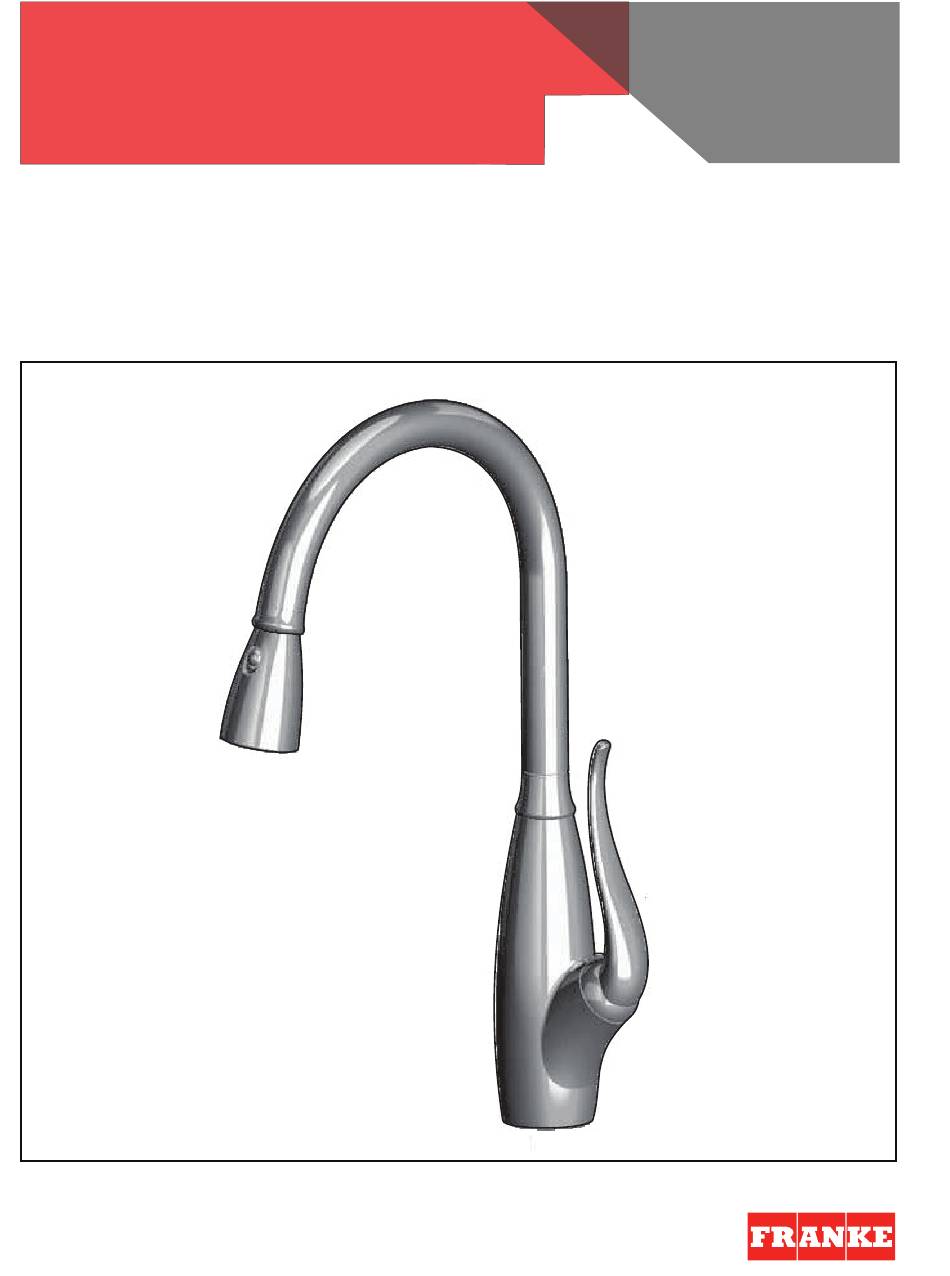

- Page 1 INSTALLATION GUIDE Kitchen - FF2400, FF2460, FF2480 Bar/Prep - FFBP2400, FFBP2460, FFBP2480 KITCHEN SYSTEMS...
-
Page 2: Technical Data
Remove all contents from the package and check for completeness. NOTE: Call us immediately if you see inconsistencies. (1-800-626-5771) or visit www.frankeksd.com info.fks@franke.com Package Contents: 1 - Mixer 2 - Fastening Set (2) Rubber Washers (1) Nut 3 - Counterweight (2) - Page 3 Installation Remove check valve Flush the water supply to be sure it is free of debris and then shut off the water supply. Ensure O-ring is in place as shown to create proper seal. If O-ring is missing, the faucet will leak.
- Page 4 Installation Sealing Connect the hand shower hose to the check washer valve at the end of the riser. Make sure the & check sealing washer is placed between the check valve valve and the hand shower hose. Tighten with wrench. Plumber / Installer must test and M15X1 confirm that all hoses, hose riser and...
- Page 5 Usage The mixer can be installed with the handle COLD positioned on the right or the left thanks to back 360 degree spout rotation. front If the handle is installed on the right side hot water is obtained by moving the lever forward and cold water by moving it backward and water flow is turned on by moving handle to right.
-
Page 6: Replacement Parts
MAINTENANCE Replacement Parts 1 - F2401CH Lever Handle - chrome 7 - 2411CH Hand shower - chrome (bar/prep) 1 - F2401OWB Lever Handle - old world bronze 7 - 2411OWB Hand shower - old world bronze (bar/prep) 1 - F2401SN Lever Handle - satin nickel 7 - 2411SN Hand shower - satin nickel (bar/prep) - Page 7 Cartridge Replacement Make sure water supply is turned off before maintenance. Unscrew set screw (1) to remove lever handle. Unscrew the screw (2) to remove handle extension (3). Lift off the dome (4) and the friction washer (5). Using a wrench unscrew the cartridge nut (6) and remove.
- Page 8 - save sales receipt. This warranty covers all components which make the product operational. Franke, at its option, may repair or replace the product or components necessary to restore the product to good working condition. Franke reserves the right to inspect the installation prior to the actual replacement of the product or component part.
