- Page 1 FlexHardware Manual Ivie Technologies, Inc. Installation & Operation Manual for the Ivie i Flex 2400 DSP Automatic Mixer February, 2009 Copyright 2009 by Ivie TechNologies Inc.
-
Page 2: Power Supply
IR door sensors, inputs, outputs etc. are connected and operational. A mouse is required to use this program. iFlex 2400 Hardware Overview Power Supply The iFlex uses the PCM50US24 single voltage, universal power supply. It is UL, CSA and CE approved, and will operate at line voltages from 100 VAC to 240 VAC, 47 Hz to 63 Hz. -
Page 3: Front Panel

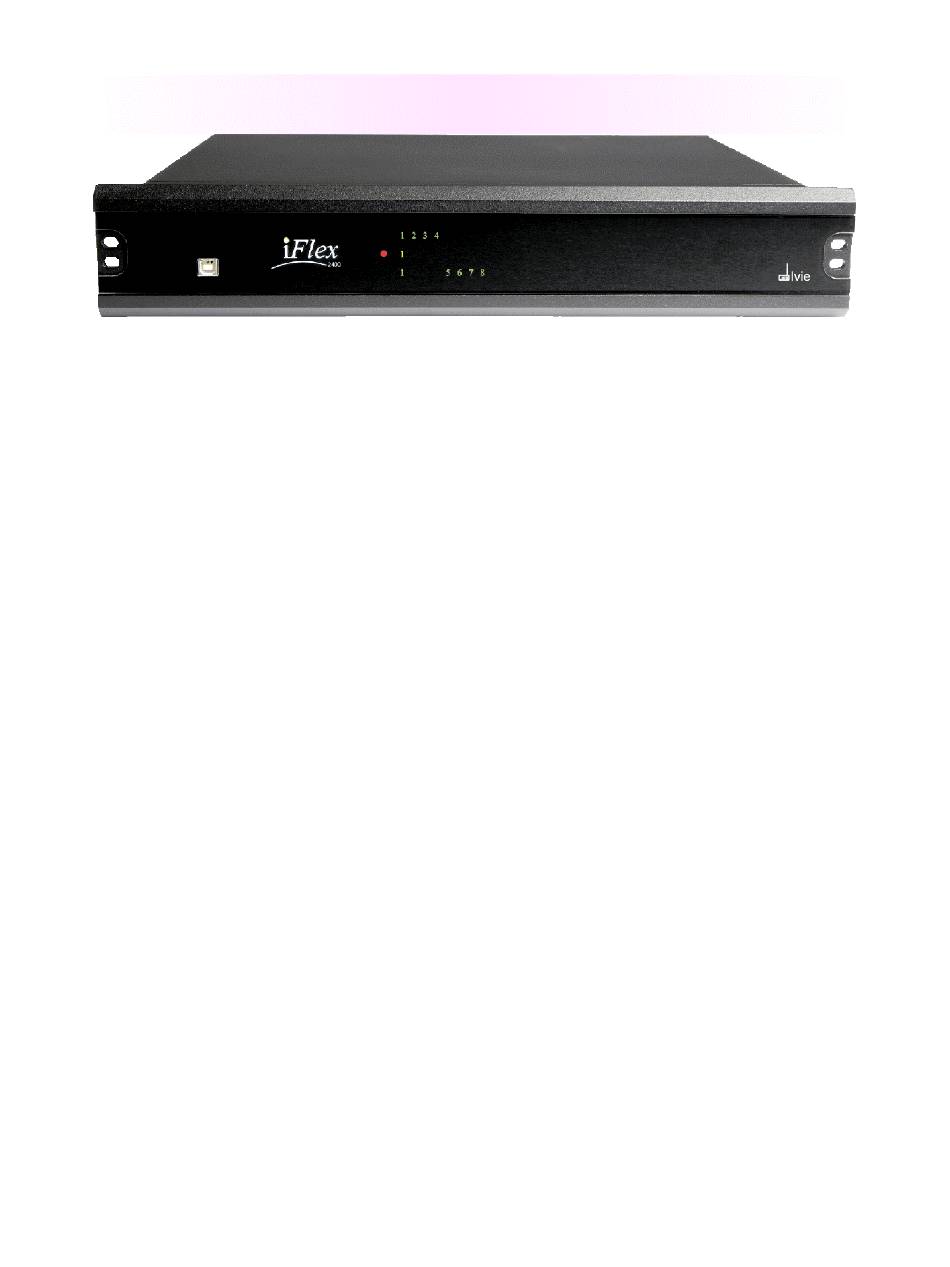

After checking cable integrity, and if the modules and controls are all programmed, any module can be plugged into any slot - the iFlex 2400 will find it and properly identify it. The same thing is true of the RJ-45 logic I/O ports. The “smart” remote controls, IR sensors etc. -
Page 4: Rear Panel
FlexHardware Manual Ivie Technologies, Inc. Rear Panel The rear panel of the iFlex houses a power plug, programmable relay, 24 Vdc output to drive an external relay, USB port with associated push button, Ethernet port, 12 logic ports (RJ-45) and 24 I/O ports (channel inputs and outputs). Figure 2 below details... - Page 5 FlexHardware Manual Ivie Technologies, Inc. Rear Panel Logic I/O Ports iFlex remote controls, RMPC pc board adapters, and IR-3 Infrared Door Sensors have IC’s in them that identify them to the iFlex. Connecting them is as simple as attaching a CAT5 cable with RJ-45 connectors into the remote and any of the I/O ports of the iFlex.
