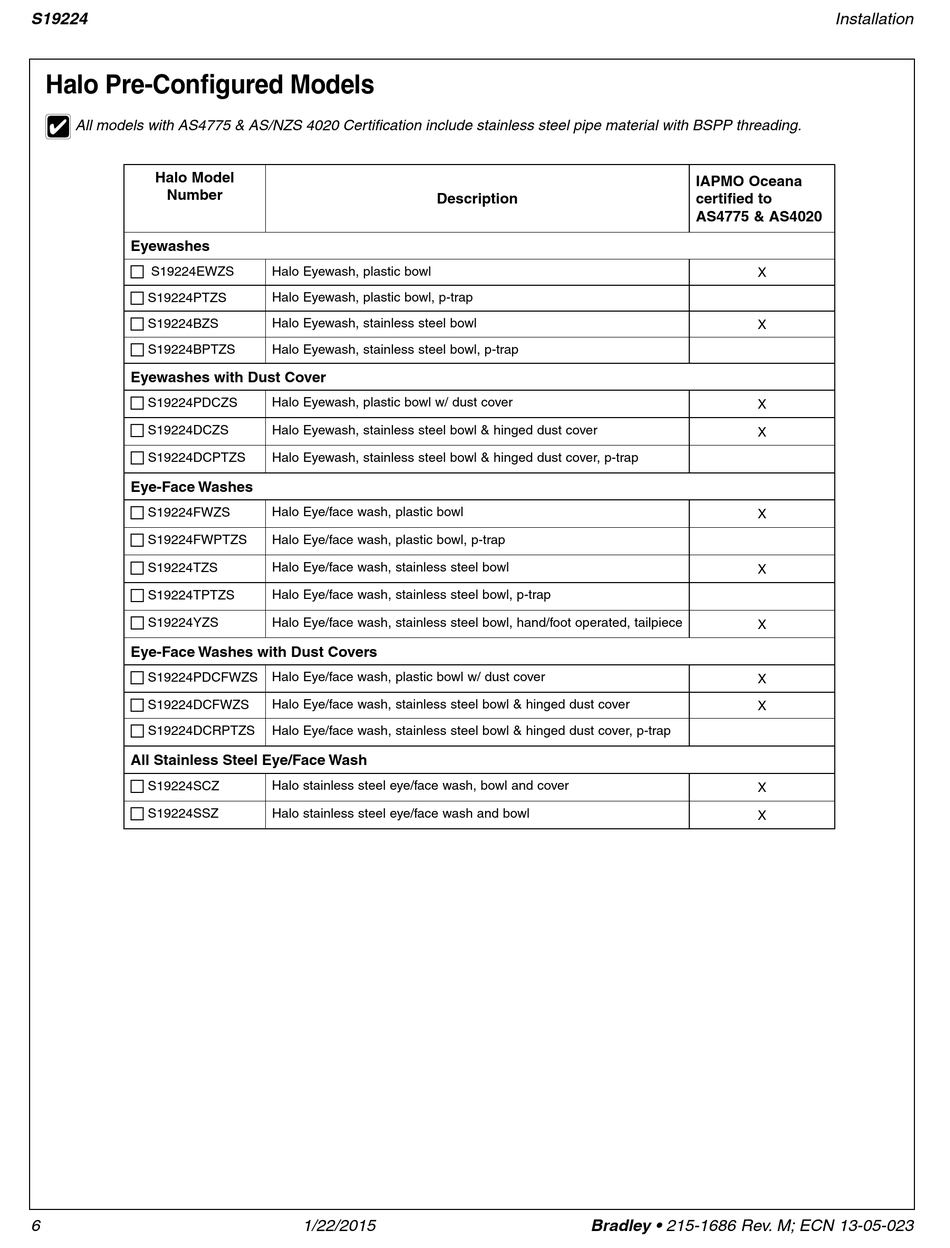

Halo Pre-Configured Models
All models with AS4775 & AS/NZS 4020 Certification include stainless steel pipe material with BSPP threading.
Halo Model
Number
Eyewashes
 S19224EWZS
 S19224PTZS
 S19224BZS
 S19224BPTZS
Eyewashes with Dust Cover
 S19224PDCZS
 S19224DCZS
 S19224DCPTZS
Eye-Face Washes
 S19224FWZS
 S19224FWPTZS
 S19224TZS
 S19224TPTZS
 S19224YZS
Eye-Face Washes with Dust Covers
 S19224PDCFWZS
 S19224DCFWZS
 S19224DCRPTZS
All Stainless Steel Eye/Face Wash
 S19224SCZ
 S19224SSZ
6
Description
Halo Eyewash, plastic bowl
Halo Eyewash, plastic bowl, p-trap
Halo Eyewash, stainless steel bowl
Halo Eyewash, stainless steel bowl, p-trap
Halo Eyewash, plastic bowl w/ dust cover
Halo Eyewash, stainless steel bowl & hinged dust cover
Halo Eyewash, stainless steel bowl & hinged dust cover, p-trap
Halo Eye/face wash, plastic bowl
Halo Eye/face wash, plastic bowl, p-trap
Halo Eye/face wash, stainless steel bowl
Halo Eye/face wash, stainless steel bowl, p-trap
Halo Eye/face wash, stainless steel bowl, hand/foot operated, tailpiece
Halo Eye/face wash, plastic bowl w/ dust cover
Halo Eye/face wash, stainless steel bowl & hinged dust cover
Halo Eye/face wash, stainless steel bowl & hinged dust cover, p-trap
Halo stainless steel eye/face wash, bowl and cover
Halo stainless steel eye/face wash and bowl
