Installation Manual

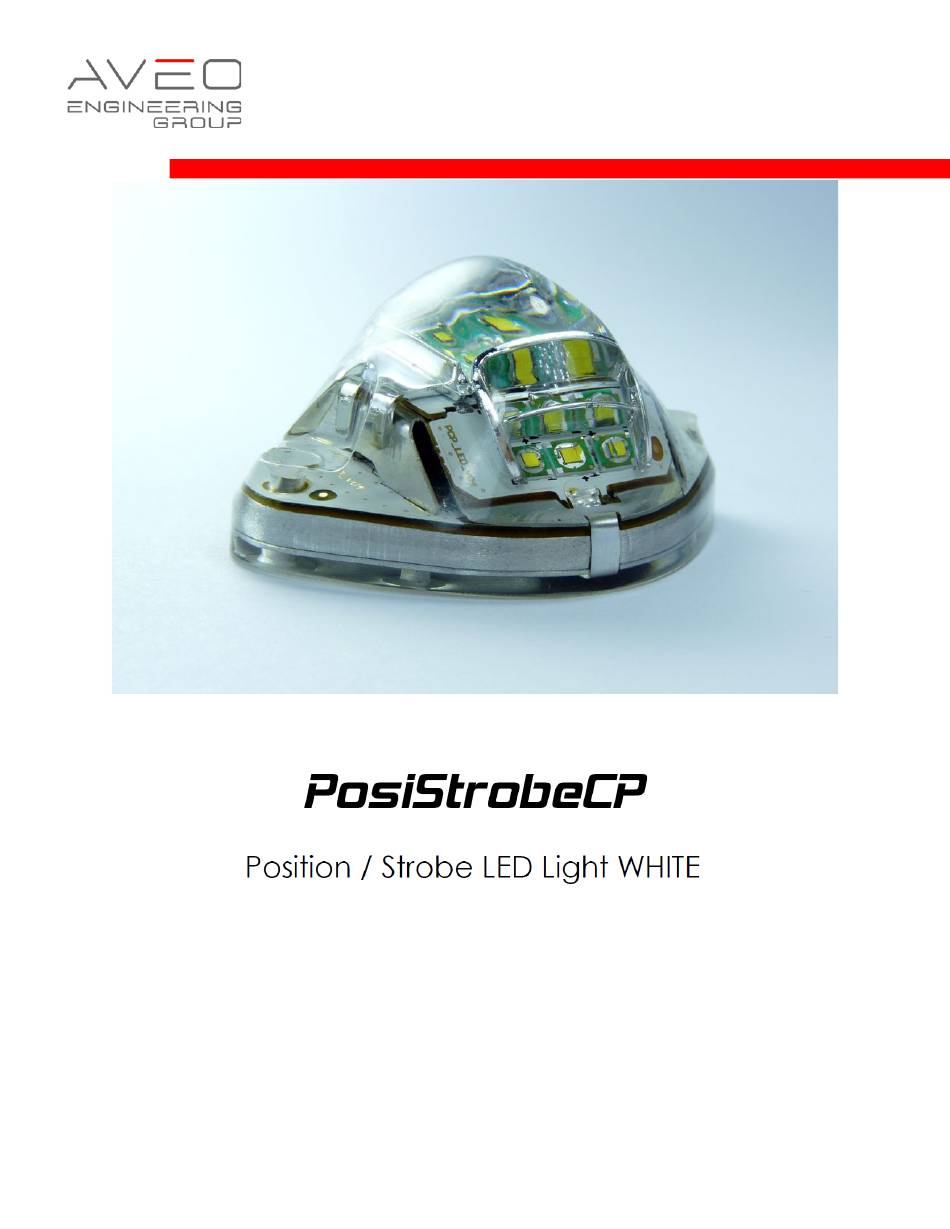

DOC.NO: AVE-POSW-54G-IM
Aveo Engineering Group, s.r.o.
© 2015
All rights reserved. The information contained within this document
Aveo
must not be disclosed, copied or reproduced in whole or in part without prior written permission from
Engineering Group, s.r.o.
Distribution of this document shall only be as stated in Table 02 unless otherwise
Aveo Engineering Group, s.r.o.
agreed by
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aveo Engineering PosiStrobe CP
Summary of Contents for Aveo Engineering PosiStrobe CP
- Page 1 Installation Manual DOC.NO: AVE-POSW-54G-IM Aveo Engineering Group, s.r.o. © 2015 All rights reserved. The information contained within this document Aveo must not be disclosed, copied or reproduced in whole or in part without prior written permission from Engineering Group, s.r.o.
-
Page 2: Table Of Contents
INSTALLATION SCHEMATIC / WIRING DIAGRAM CONTROL & POWER INPUT’ TECHNICAL SPECIFICATION TECHNICAL DRAWING WIRING CHART EQUIPMENT LIMITATION TESTING OF THE LIGHT BEFORE INSTALLATION CARE AND CLEANING OF YOUR AVEO ENGINEERING AVIATION LIGHTS NOTES ON INSTALLATION CONTINUED AIRWORTHINESS INFORMATION _______________________________________________________________________________________________________________________ Page 2 of 12... -
Page 3: Document Approval
0.3 Amendment Record procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of Issue ALL raises of issue will be given a sequential Alphabetic Issue Ident sequentially from 01 to 99 in Table 01 - Issue No: Column–... -
Page 4: Effected Pages Procedure
0.5 Distribution List As stated in 0.3 above; the master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. All holders of copies of this Document will be recorded by listing in Table 02 –... -
Page 5: Posistrobe Cp
PosiStrobe CP PosiStrobe CP™ The PosiStrobe CP is a new generation rudder white position and strobe light. It fits almost all the standard rudder mounts of aircraft and also features an optional aluminum adapter mount plate pictured in the installation page. An... -
Page 6: Operating Instructions
Installation Manual PosiStrobe CP OPERATING INSTRUCTIONS When installed on the aircraft, using the aircraft’s power (14 or 28 volts), the light will be at its maximum intensity. (Meet the requirement of ETSO-C30C, Aircraft Position Light and ETSO- C96A, Anticollision Light Systems) INSTALLATION SCHEMATIC / WIRING DIAGRAM CONTROL &... - Page 7 Installation Manual PosiStrobe CP Summary of Environmental Tests Test title Specification Section Category Temperature / Altitude DO-160F Temperature Variation DO-160F Humidity DO-160F Operational Shock DO-160F Vibration DO-160F Explosive Atmosphere DO-160F Waterproofness DO-160F Fluid Susceptibility DO-160F Sand and dust DO-160F Fungus...
-
Page 8: Technical Drawing
Installation Manual PosiStrobe CP TECHNICAL DRAWING Figure 2: Dimensions are in millimeters / inches WIRING CHART _______________________________________________________________________________________________________________________ Page 8 of 12... -
Page 9: Equipment Limitation
Installation Manual PosiStrobe CP EQUIPMENT LIMITATION PosiStrobe CP ™ should only be powered by 9-36 Vdc, typically a 12 or 24 volt aircraft battery. This article meets the minimum performance and quality control standards required by the technical standard order ETSO C30c and ETSO C96a. Installation of this article requires separate approval. -
Page 10: Care And Cleaning Of Your Aveo Engineering Aviation Lights
Under no circumstances should any petroleum based product be used to clean the lights. For continued UV protection Aveo Engineering offers Nonocloak UV Protectant Spray and Cleaner, available at any Aveo Engineering Authorized installation Center. _______________________________________________________________________________________________________________________ Page 10 of 12... -
Page 11: Notes On Installation
12. CONTINUED AIRWORTHINESS INFORMATION This product is delivered with EASA Form1 which is for the operator to report any occurrences to Aveo Engineering as the ETSO holder. The form contains the Aveo Engineering telephone number and the occurrence e-mail address (occurrence@aveoengineering.com). - Page 12 Installation Manual PosiStrobe CP removed and sent to Aveo Engineering for replacement under the Aveo Lifetime Warranty Program. Figure 3: Strobe LEDs Figure 4: Position Light LEDs _______________________________________________________________________________________________________________________ Page 12 of 12...
