Muller SCALA wall mounted Assembly Instruction

SCALA wall mounted
Assembly instruction

Included in delivery:

• 1 Allen key • Wall plug and Screw ( 1 piece each per sidebar/intermediate bar)
• Hexagon screws ( number of screws in accordance with height of STACK and with number of installation parts)
• 2 fixing brackets for each shelf/box, lacquered in the colour of shelf/box

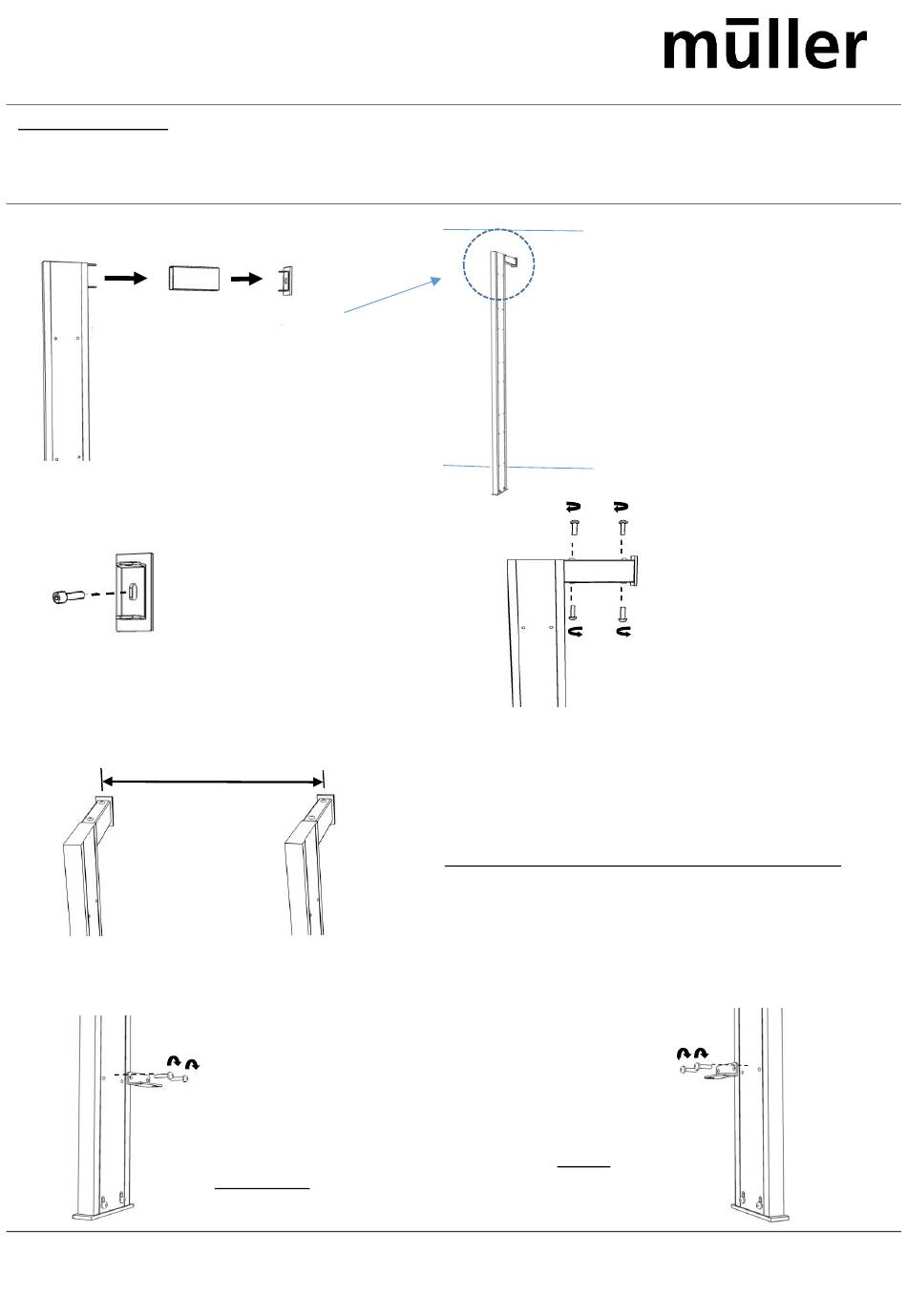

1. Position sidebar

(2)
Plug sidebar and wall fixing parts
(1-2) together to define position
of wall connection (1).

2. Wall mounting of sidebar

Fix wall connection part
(1) to the wall using plug
and screw.
(1)

3. Wall mounting of second sidebar (or intermediate bar)

Distance of drill holes

4. Mounting fixing brackets

müller möbelfabrikation GmbH & Co. KG - Werner-von-Siemens-Str. 6 - D-86159 Augsburg
Telefon: +49 (0) 821 59 76 73 80 - E-Mail: info@mueller-moebel.com - Web: www.mueller-moebel.com
(1)
All fixing brackets are lacquered according to the colour
of the shelf/box. Screw the apropriate fixing brackets at
the required positions onto both sidebars and tighten
them firmly .
Define position of second wall connection as described
in step 1-2. According to width of installation parts
consider the differnt distance of drill holes:
Width of shelf/box -
60 cm –
90 cm –
120 cm –
Screw together
sidebar and wall fixing
parts (1-2).
distance of drill holes
62,4 cm
92,4 cm
122,4 cm
