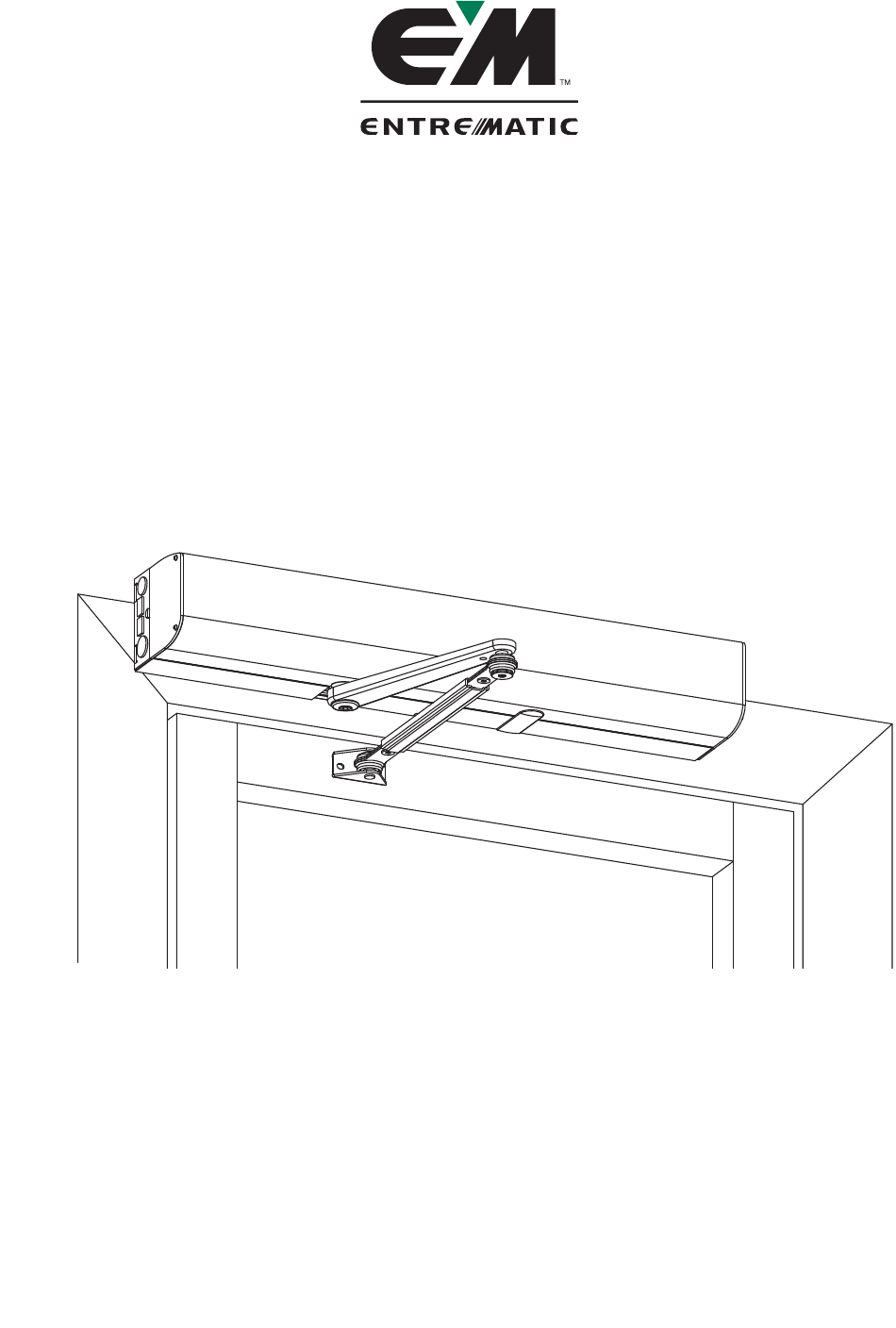

- Page 1 Entrematic Swing Door Operator EMSW EMO User Manual Original instructions...
-
Page 2: Table Of Contents
Maintenance plan ....................Other products from Entrematic ................© All rights in and to this material are the sole property of Ditec Entrematic Nordic AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Ditec Entrematic Nordic AB. -
Page 3: Congratulations On Your New Automatic Door
It is essential that you know your automatic door (system) and that you recognize the importance of maintaining it in compliance with applicable standards for safety. Your local Entrematic-authorized representative is familiar with these standards, as well as all applicable local codes and Entrematic recommendations for power-operated pedestrian doors. -
Page 4: Environmental Requirements
For contact information, see last page of this manual. Intended use The EMSW EMO is an automatic swing door operator developed to make life easier for everyone who can benefit from automatic doors. The EMSW EMO is a low-energy operator using a DC motor and a gear-reduction system to drive an arm system, which opens the door. - Page 5 Do not let children play with the door or the fixed controls. Keep remote controls away from children. For installation and maintenance see Installation and Service manual 1005088. 1005099-EMEI-4.0 Issue 2012-02-14...
-
Page 6: How The Emsw Emo Works
The EMSW EMO can be set in three or four different modes, depending on programme selector type, see table below. In fully manual use (or in case of a power failure) the EMSW EMO acts as a normal door closer. -
Page 7: Regular Safety Checks
The door must not hit you when opening nor when closing. If you are unsure of which type of sensor you have, please contact your Entrematic representative. Set the programme selector in AUTO mode. Push the door manu-... - Page 8 CLEANING The best way to remove dust and dirt from the EMSW EMO is to use water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the quality of the enamel layer, the surfaces should be cleaned once/four months period.
- Page 9 Product label: Mandatory Emergency break-out: Mandatory, if approved for escape route. Entrematic door sticker: Mandatory, if applicable to highlight the presence of the glass (applied to all glass sections that are moving). Supervision of child: Mandatory, if applicable (applied to both sides of the door). To be placed on entrances where the risk analysis shows use by children, elderly and disabled.
-
Page 10: General Accessories
Access control (not illustrated) Door stop (not illustrated) Safety accessories Even though the EMSW EMO is installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local Entrematic company for detailed description). -
Page 11: Maintenance Plan
Maintenance plan As mentioned earlier in this manual, service and adjustments performed by your Entrematic-au- thorized representative will ensure safe and proper operation of your automatic door unit. The table below shows the recommended interval in months, when to replace parts during preventive maintenance. - Page 12 Ditec Entrematic Nordic AB, Box 669, SE-261 25 Landskrona, Sweden Tel: +46 418 514 50 • Fax: +46 418 511 63 info@ditecentrematicnordic.com • www.ementrematic.com...
