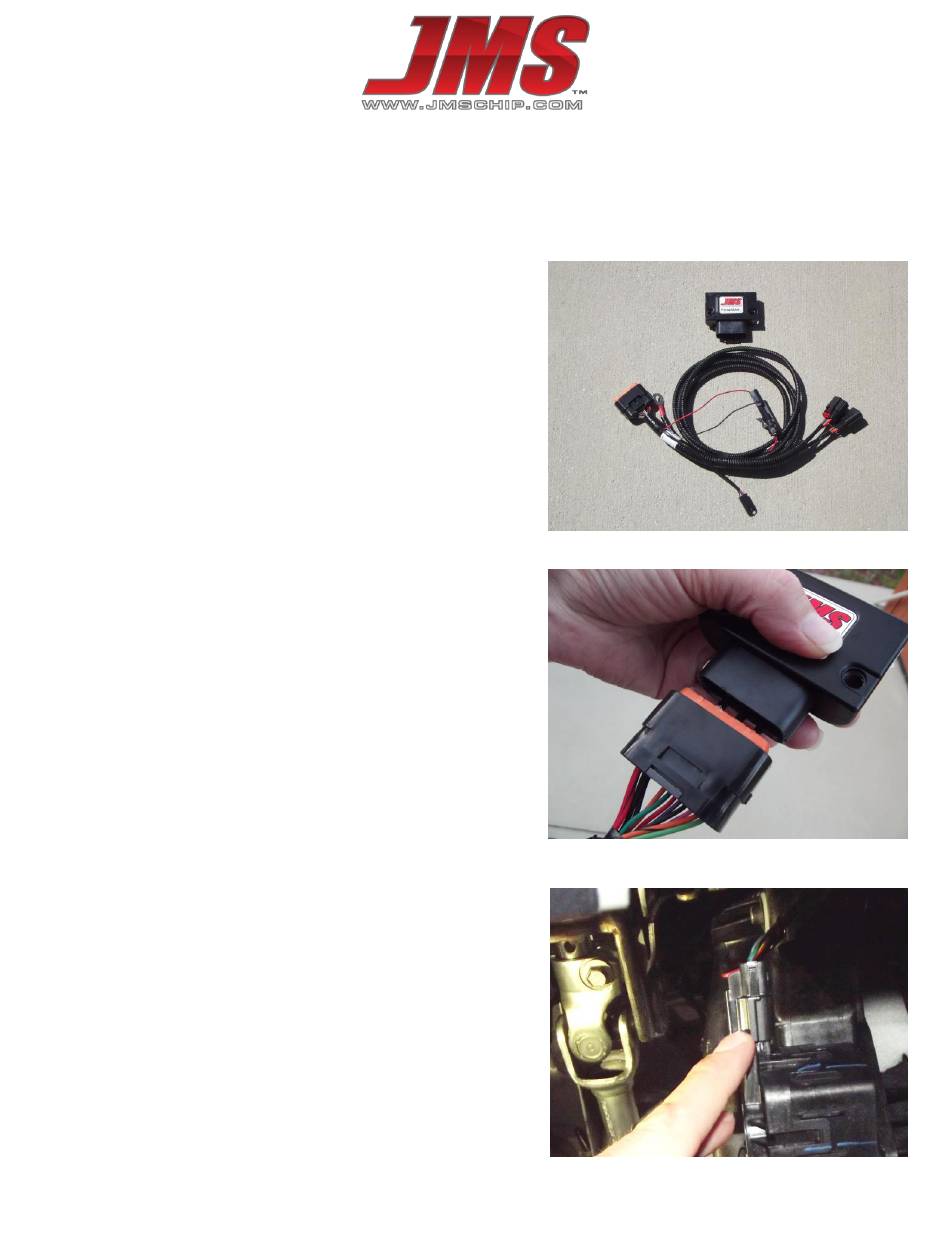

JMS PX1114F Installation Instructions

Installation Instructions – JMS PedalMAX Kit P/N PX1114F
2011-2018 Ford Drive-By-Wire Electronic Throttle Enhancement Device

Included in the PedalMAX kit:

(1) PedalMAX assembly
(1) 4-pin RED de-sensitizing throttle plug
(4) Cable ties
Please read the complete installation instructions
before attempting to install this product. PedalMAX will
increase the torque and responsiveness of the OEM
drive-by-wire throttle assembly. The PedalMAX unit is
designed to be mounted inside the vehicle cabin, under
the dash near the accelerator pedal position sensor.
PedalMAX should not come into direct or prolonged
contact with water or extreme engine heat (+250F).
Connect the Assembly: Attach the black PedalMAX
device to the wiring harness. Apply the supplied
dielectric grease on the connector pins and plug the
device into the 26-pin connector firmly until latched.
Important: Disconnect the positive terminal of the
battery before installing this product. If you do not
disconnect the battery the factory computer will not
learn the correct starting pedal position.
Locate the pedal position sensor assembly. It is located
on the top of the accelerator pedal.
