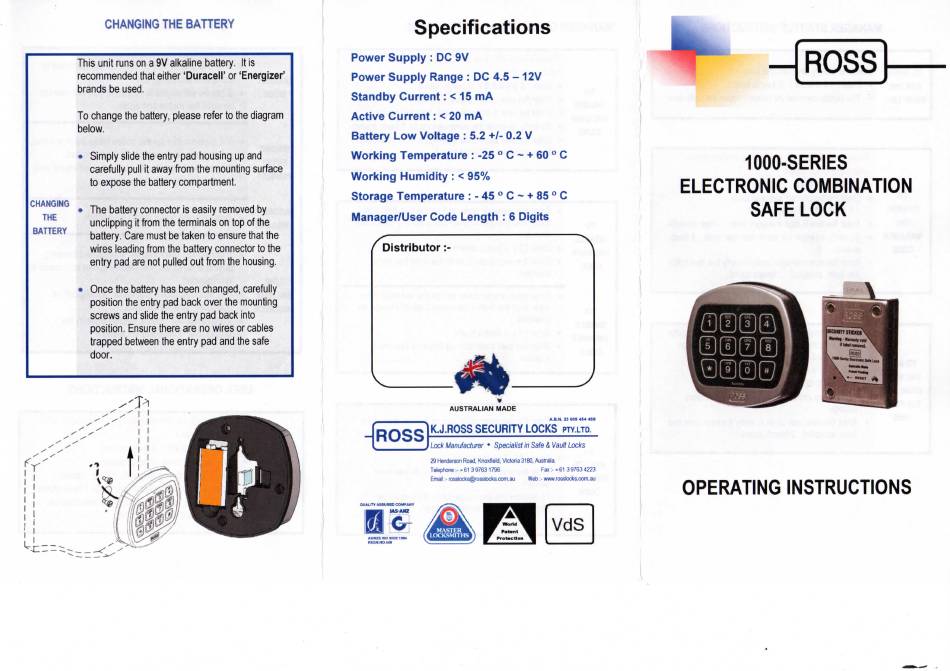

Ross 1000-SERIES Operating Instructions

CHANGING THE BATTERY
This unit runs on a 9V alkaline battery. It is
recommended that either 'Duracell' or 'Energizer'
brands be used.
To change the battery, please refer to the diagram
below.
C H A N G I N G
THE
B A T T E R Y
Simply slide the entry pad housing up and
carefully pull it away from the mounting surface
to expose the battery compartment.
The battery connector is easily removed by
unclipping it from the terminals on top of the
battery. Care must be taken to ensure that the
wires leading from the battery connector to the
entry pad are not pulled out from the housing.
Once the battery has been changed, carefully
position the entry pad back over the mounting
screws and slide the entry pad back into
position. Ensure there are no wires or cables
trapped between the entry pad and the safe
door.
'7*
Specifications
Power Supply : DC 9V
Power Supply Range : DC 4.5 - 12V
Standby Current: < 15 mA
Active Current: < 20 mA
Battery Low Voltage : 5.2 +/- 0.2 V
Working Temperature : -25 ° C ~ + 60
Working Humidity : < 95%
Storage Temperature : - 45 ° C - + 85
Manager/User Code Length : 6 Digits
^Distributor:-
A U S T R A L I A N M A D E
A.B.N. 33 609 *S4 458
ROSS
K.J.ROSS SECURITY LOCKS
PTY.LTD.
Lock Manufacturer • Specialist in Safe & Vault Locks
29 Henderson Road, Knoxfield, Victoria 3180, Australia.
Telephone:- • 61 3 9763 1796 Fax:- + 61 3 9763 4223
Email:- rosslocks@rosslocks.com.au Web:- www.rosslocks.com.au
QUALI T Y ASSURED COMPANY
• • 1
m
VdS
mm*
1000-SERIES
ELECTRONIC COMBINATION
SAFE LOCK
1
, 0 0 0 ©
Q D C D E G D
OPERATING INSTRUCTIONS
