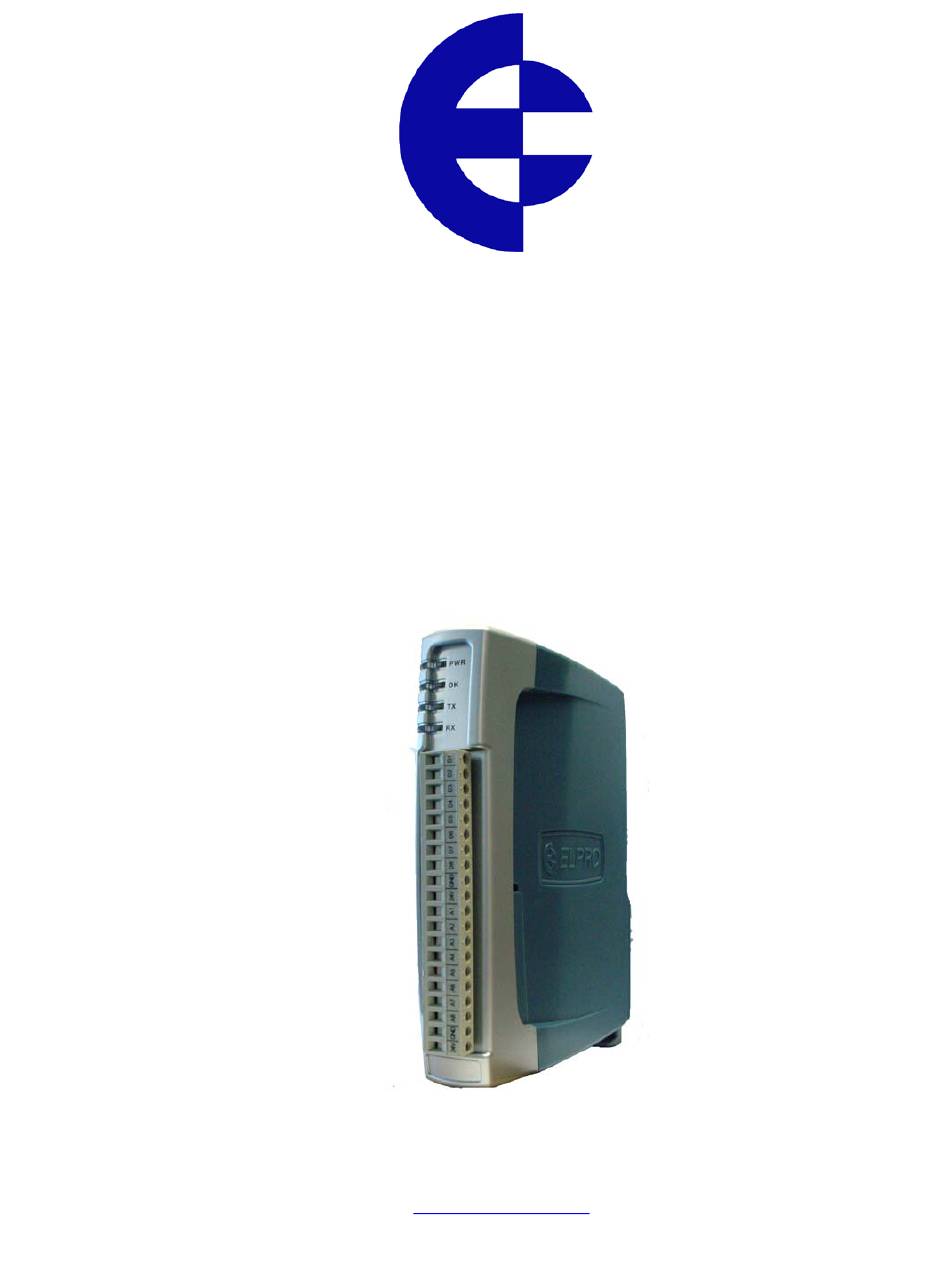

- Page 1 115S Serial I/O Module User Manual ELPRO Technologies Pty Ltd, 9/12 Billabong Street, Stafford Q 4053, Australia. Tel: +61 7 33528600 Fax: +61 7 33528677 Email: sales@elprotech.com Web: www.elprotech.com...
- Page 2 115S Serial I/O Module User Manual Thank you for your selection of the 115S Serial I/O Module. We trust it will give you many years of valuable service. ATTENTION! Incorrect termination of supply wires may cause internal damage and will void warranty.
- Page 3 115S Serial I/O Module User Manual Limited Lifetime Warranty, Disclaimer and Limitation of Remedies ELPRO products are warranted to be free from manufacturing defects for the “serviceable lifetime” of the product. The “serviceable lifetime” is limited to the availability of electronic components. If the serviceable life is reached in less than three years following the original purchase from ELPRO, ELPRO will replace the product with an equivalent product if an equivalent product is available.
-
Page 4: Table Of Contents
115S Serial I/O Module User Manual CONTENTS OVERVIEW ....................... 5 ..................7 ODULE TYPES AND FEATURES 1.1.1 Digital inputs / outputs .................... 7 1.1.2 Pulsed outputs ......................7 1.1.3 Pulsed inputs ......................8 1.1.4 Analog inputs ......................8 1.1.5 Analog outputs ......................9 1.1.6... -
Page 5: Overview
MODBUS RTU, also known as “MODBUS binary”. The Modbus slave address of the 115S is selected via two rotary switches on the bottom panel of the case. All 115S models provide digital inputs and outputs. Specific models provide analog inputs or analog outputs. - Page 6 Figure 1-1: 115S unit with significant parts labeled. Two ports allow configuration and communications on the 115S. The RS232 port is intended for configuration. The RS485 port allows the unit to be in a multi-drop configuration. Overvoltage protection and supply monitoring is provided to minimize the risk of failure due to faulty connections or supply surges.
-
Page 7: Module Types And Features
Table 1-1: Summary of 115S module types and I/O. 1.1.1 Digital inputs / outputs Each digital I/O channel on the 115S modules can act as either an input or an output. The input/output direction does not need to be user configured. -
Page 8: Pulsed Inputs
115S Serial I/O Module User Manual • The Update Time is the interval in which the 115S expects to receive updates to the Target value. The module will output enough pulses for the Count to reach the Target within the update time. The output pulse rate is determined by the update time, and the difference between the count and the target. -
Page 9: Analog Outputs
The 115S-12 provides a 24V analog loop supply (“ALS”) for powering analog loops. 1.1.5 Analog outputs The 115S-13 has eight analog output channels and can be configured to output voltage or current. For current signals, “source” or “sink” can be selected. The scale of each analog... -
Page 10: Communications
The modules are fitted with a termination switch for the RS485. Set this switch only on the last module in a multi-drop RS485 configuration. The ELPRO E-Series software is used to configure the 115S modules as part of an E_Series network. The hardware set-up for items such as expected pulse rates and analog signals is also available through this software. -
Page 11: Installation
Figure 2-1: Several 115S units connected to a master. 2.1.1 Power Connection The 115S modules require a 10.8-30 VDC ** power supply. This is supplied to the 4-way connector, shown in Figure 2-2. ** Model Dependent. Check rear label for actual operating voltages Figure 2-2: Power and RS485 connector. -
Page 12: Address Switches
The address switches are found on the bottom panel of the module, as shown in Figure 2-3. If you are using the 115S module with other ELPRO E-Series modules (ELPRO 105 and 905- modules), the address switches must be set to “00”. This enables ELPRO protocol mode and assigns 3 serial addresses to each module. -
Page 13: Signal Connections
2.2.1 Digital Inputs (and Pulsed Inputs) The 115S-11 supports 16 digital signals, and the 115S-12 and 115S-13 support 8 digital signals. Additionally, digital inputs DIO1-4 on the 115S-11 operate as pulse inputs. -
Page 14: Digital Outputs (And Pulsed Outputs)
Single-ended current inputs allow twice as many inputs as the differential mode. This mode is useful when the sensor loop can be grounded to the 115S module. Devices may also be powered by the 24V supplied by the 115S. Refer to Figure 2-7:... - Page 15 AGND Figure 2-7: Connection for single-ended current inputs. Transducers may be externally powered or powered by the 115S +24V loop supply. Note: The module is configured at the factory for this type of input To change the input configuration, refer to section 4.4...
- Page 16 115S Serial I/O Module User Manual 2.2.3.2 Floating Differential Mode mA Inputs Differential mode current inputs should be used when measuring a current loop which cannot be connected to earth or ground. This allows the input to be connected anywhere in the current loop.
- Page 17 Single-ended voltage inputs allow twice as many inputs as differential mode. This mode is useful when one end of the input voltage can be connected to the ground of the 115S module. Figure 2-10 shows connections for single-ended voltage input.
-
Page 18: Analog Outputs
115S-12 module. 2.2.4 Analog Outputs The 115S-13 provides eight analog outputs. These may be configured as voltage or current outputs. The current output may be selected as “sink” or “source” current. Refer to Section 4.5 for detail on configuring analog outputs. - Page 19 115S Serial I/O Module User Manual 115S-13 Module ALS +24V AOT1 AOT2 AGND Figure 2-11: Connection for current source output. Note: The module is configured at the factory for this type of output connection To change the input configuration, refer to section 4.5...
- Page 20 115S Serial I/O Module User Manual 2.2.4.2 Voltage Output Voltage output mode produces a voltage referenced to the module’s AGND. Figure 2-13 shows the connection for voltage output configuration. 115S-13 Module VOLTAGE INPUT ALS +24V AOT1 AOT2 AGND Figure 2-13: Connection for voltage output configuration.
-
Page 21: Configuration
Select the radio module that you want to connect the 115S serial module to, and select the “Serial Units” item. Select “Add a new Serial Unit” to create the new configuration, or select “Load a New Serial Unit” to load the configuration from an existing module. - Page 22 115S Serial I/O Module User Manual Figure 3-1: Configuration of 115S modules using ELPRO Configuration Utility. When you select “Add a new Serial Unit” you will need to select the unit type. Select the correct module type here. Figure 3-2: Select the unit type.
-
Page 23: Modbus Slave Configuration
115S Serial I/O Module User Manual 3.2 MODBUS Slave Configuration If configured as a MODBUS Slave the module will need to have a unique Slave address, see section 2.1.2 “Address Switches” above for details on how this is done. The Address selected will be the address that the MODBUS Master needs to poll to gather data. -
Page 24: Hardware Configuration
DB9 female to DB9 male. See Appendix for wiring.) • Set the address switches to 00 • Supply power to the 115S via the “+” and “-” terminals on the bottom of the module (10.8-30 VDC **). ** Model Dependent. Check rear label for actual operating voltages •... -
Page 25: Configuration Common To All Modules
• Set the “Port” setting to match the computer com port you have connected to. • Set the “Slave Address” to match the address switch setting of the 115S. If you are using address “00” for ELPRO Protocol, set the Slave Address to 100. -
Page 26: Modbus Output Timeout On Comms Fail
115S Serial I/O Module User Manual 4.2.2 Modbus Output Timeout on Comms fail The module when being used as a Modbus Slave device has an output reset on comms fail feature. This means the outputs are turned off after a configured timeout if the module doesn’t receive any Modbus polls to itself. -
Page 27: Configurable Ack Timeout
4 times with a random 0-5 seconds delay between each retry. If all retries are not acknowledged then a communications fail can be flagged. Typically the 115S expansion I/O modules are used with 105U/905U I/O radios and the longer Acknowledge Timeouts are not required. -
Page 28: Pulsed Outputs
Figure 4-3: Pulsed outputs setup page for a 115S-11. The pulsed outputs are available on all models. Clicking the button Read from 115S will read the pulse out update times from the 115S and display them on the form. The Pulse Out Update Times should be set to the approximate interval at which the 115S will receive updates to its pulse out target register. -
Page 29: 115S-11 Configuration
Choose the Pulse Inputs Setup page, as shown in Figure 4-4. Figure 4-4: Pulse inputs setup. Only available on a 115S-11 module. Clicking the Read from 115S button reads the existing maximum pulse rate settings from the 115S and displays them on the form. -
Page 30: 115S-12 Configuration
Voltage inputs may be selected in the scales 0 to 5V, 0 to 10V, or 1 to 5V. For each scale, the minimum to maximum signal levels are represented by 4000 hex to C000 hex. Table 4-1 shows how the 115S-12 voltage readings translate to outputs in other ELPRO products. - Page 31 Check the 115S Detected panel to ensure that the analog mode has been updated (to Voltage, single-ended). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant.
- Page 32 30001 for AIN1-AIN2, 30003 for AIN3-AIN4, 30005 for AIN5- AIN6 and 30007 for AIN7-AIN8. Choose the page to configure the 115S-12 for differential voltage input, as shown in Figure 4-6. Remove the access panel from the front of the 115S-12 case to gain access to the dip switches.
-
Page 33: Current Input
Check the 115S Detected panel to ensure that the analog mode has been updated (to Voltage, differential). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant. - Page 34 Check the 115S Detected panel to ensure that the analog mode has been updated (to Current, single-ended). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant.
- Page 35 30001 for AIN1-AIN2, 30003 for AIN3-AIN4, 30005 for AIN5- AIN6 and 30007 for AIN7-AIN8. Remove the access panel from the front of the 115S-12 case to gain access to the dip switches. Replace the access panel after setting the switches.
-
Page 36: Configuration
Check the 115S Detected panel to ensure that the analog mode has been updated (to Current, differential). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant. - Page 37 Check the 115S Detected panel to ensure that the analog mode has been updated (to Voltage). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant.
-
Page 38: Current Output
Current outputs may be selected in the scales 0 to 10mA, 0 to 20mA, or 4 to 20mA. For each scale, the minimum to maximum signal levels are represented by 4000 hex to C000 hex. Table 4-4 shows how signals from other ELPRO products translate to 115S-13 current levels. - Page 39 Check the 115S Detected panel to ensure that the analog mode has been updated (to Current). Clicking Read from 115S will read the scales out of the unit (if any) and display them in the scales grid. Note that the dip switches should be set correctly for this result to be relevant.
-
Page 40: Operation
The operation of the digital I/O may be confirmed using the configuration software. Start the software as described in section 4, and choose the DIO Check page as shown in Figure 5-2. Figure 5-2: Check the operation of the 115S-11 module using the DIO Check page. Page 40 June 2011... -
Page 41: 115S-12 Module
Figure 5-3: I/O terminal block for 115S-12. Pulse outputs coincide with DIO terminals 1-8. The operation of the 115S-12 may be confirmed using the configuration software. Start the software as described in section 4, and choose the AIN Check page as shown in Figure 5-4. - Page 42 115S Serial I/O Module User Manual Figure 5-4: Check the operation of the 115S-12 module with the AIN Check page. Test the digital outputs by setting the select-buttons to ON or OFF - this will force the DO to the selected state.
-
Page 43: 115S-13 Module
The operation of the 115S-13 may be confirmed using the configuration software. Start the software as described in chapter 4, and choose the AOT Check page. Figure 5-6: Check the operation of the 115S-13 module using the AOT Check page. man_115S_1.14.docx... - Page 44 115S Serial I/O Module User Manual Test the digital outputs by setting the select-buttons to ON or OFF - this will force the DO to the selected state. Digital inputs are reflected in the software by blacking (ON) or greying (OFF) of the associated label in the Digital Inputs column.
-
Page 45: Hexadecimal Representation Of Voltage And Current Levels
115S Serial I/O Module User Manual 5.4 Hexadecimal representation of voltage and current levels The voltage and current levels are represented as a fraction of the configured scale. 4000 hex represents the minimum level in the scale, and C000 hex represents the maximum level in the scale. -
Page 46: Appendix A. Modbus Address Map
115S Serial I/O Module User Manual Appendix A. Modbus address map A.1. 115S-11 Data Modbus I/O Type Modbus Addresses Digital input 1 Input status 10001 Digital input 2 Input status 10002 Digital input 3 Input status 10003 Digital input 4... - Page 47 115S Serial I/O Module User Manual Data Modbus I/O Type Modbus Addresses Pulse input rate 4 Input registers 30004 Maximum input pulse rate 1 Input registers 30101 Maximum input pulse rate 2 Input registers 30102 Maximum input pulse rate 3...
-
Page 48: A.2. 115S-12
115S Serial I/O Module User Manual A.2. 115S-12 Data Modbus I/O Type Modbus Addresses Digital input 1 Input status 10001 Digital input 2 Input status 10002 Digital input 3 Input status 10003 Digital input 4 Input status 10004 Digital input 5... - Page 49 115S Serial I/O Module User Manual Data Modbus I/O Type Modbus Addresses Analog inputs 1 Input registers 30001 Analog inputs 2 Input registers 30002 Analog inputs 3 Input registers 30003 Analog inputs 4 Input registers 30004 Analog inputs 5 Input registers...
-
Page 50: A.3. 115S-13
115S Serial I/O Module User Manual A.3. 115S-13 Data Modbus I/O Type Modbus Addresses Digital input 1 Input status 10001 Digital input 2 Input status 10002 Digital input 3 Input status 10003 Digital input 4 Input status 10004 Digital input 5... - Page 51 115S Serial I/O Module User Manual Data Modbus I/O Type Modbus Addresses Analog outputs 2 Holding registers 40002 Analog outputs 3 Holding registers 40003 Analog outputs 4 Holding registers 40004 Analog outputs 5 Holding registers 40005 Analog outputs 6 Holding registers...
-
Page 52: Appendix B. Modbus Functionality
115S Serial I/O Module User Manual Appendix B. Modbus Functionality Table B-1 specifies the maximum query and response data parameters for the 115S modules. See the Gould Modbus Protocol Reference guide (PI-MBUS 300 Rev B) for more detail. Function Description... -
Page 53: Appendix C. Comms Recovery
User Manual Appendix C. Comms Recovery If the communications setting of the 115S has been forgotten or mistakenly set, there is a way of recovering serial communications with the 115S. 115S firmware versions 1.04 and earlier require ModScan to do this. With later firmware versions, this can be done using the configuration software, cfg_115S_Vx.xx.exe. - Page 54 115S Serial I/O Module User Manual 40202 Serial port baud rate 40203 Serial port parity and stop bit 10. Use the tables below to work out the current communications settings, or write to the registers using ModScan to change the settings to the desired values. Note that the module transmission mode should be set to Modbus RTU.
- Page 55 115S Serial I/O Module User Manual Appendix D. Specifications EMC Approval EN 55024:1998 EN 61000-3-2: 2002 EN 61000-3-3: 2002 EN 55022: 1998 FCC Part 15 Operating temperature -40 to +60 deg C range Power supply 10.8 – 30.0 VDC Model Dependent. Check 13.8V / 24VDC nom...
- Page 56 Output current range 0-24mA Total output current 160mA Current resolution 12 bits Calibrated accuracy 0.10% Table D-1: 115S Specifications. 115S Digital inputs/outputs Pulse outputs Pulse inputs Analog inputs Analog outputs Table D-2: 115S module types and I/O. Page 56 June 2011...
- Page 57 115S Serial I/O Module User Manual Appendix E. RS232 Wiring The RS232 connection to the 115S modules requires a standard straight-through serial cable (modem cable). The wiring is shown in Figure E-1. 115S FEMALE MALE Figure E-1: Wiring for RS232 cable for PC-115S communications.
