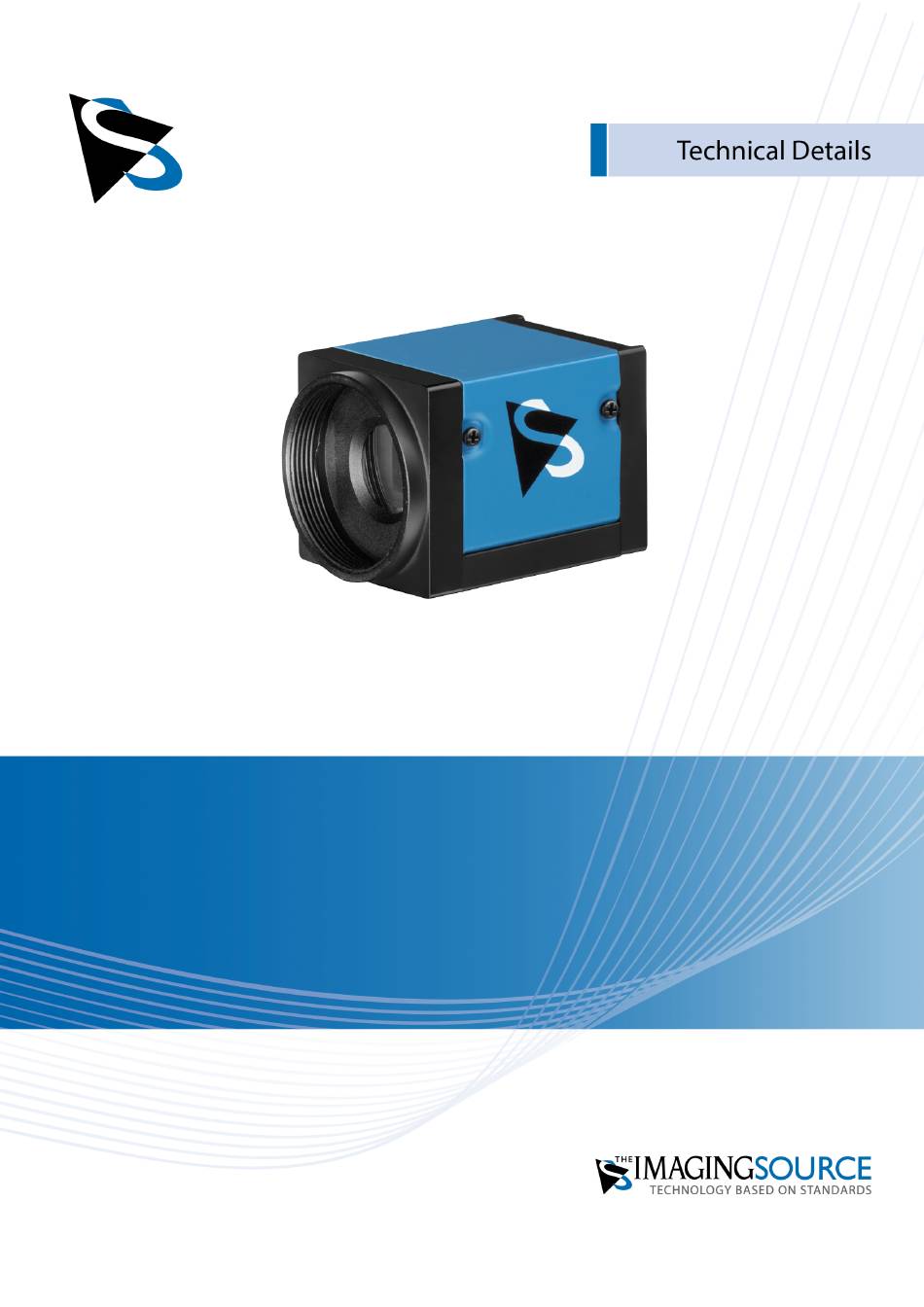

- Page 1 DMK 33UX183 Technical Reference Manual...
-
Page 2: Table Of Contents
Table of Contents Quick Facts Dimensional Diagrams DMK 33UX183 C-Mount with Tripod Adapter ............. 6 DMK 33UX183 C-Mount without Tripod Adapter ............7 DMK 33UX183 CS-Mount with Tripod Adapter ............8 DMK 33UX183 CS-Mount without Tripod Adapter ............. 9 I/O Connector 12-pin I/O Connector .................... - Page 3 Auto Functions ROI Custom Rectangle ..............33 5.10 User Sets ........................34 5.10.1 User Set Selector ....................34 5.10.2 Load User Set ......................34 5.10.3 Save User Set ......................35 5.10.4 Default User Set ..................... 35 Revision History DMK 33UX183 Technical Reference Manual...
-
Page 4: Quick Facts
12-pin connector for trigger and strobe or general purpose input/output Mechanical Data Dimensions H: 29 mm, W: 29 mm, L: 43 mm Mass 65 g Adjustments Shutter 50 µs to 30 s Gain 0 dB to 2704 dB DMK 33UX183 Technical Reference Manual... - Page 5 Quick Facts Environmental Temperature (operating) -5 °C to 45 °C Temperature (storage) -20 °C to 60 °C Humidity (operating) 20 % to 80 % (non-condensing) Humidity (storage) 20 % to 95 % (non-condensing) DMK 33UX183 Technical Reference Manual...
-
Page 6: Dimensional Diagrams
Dimensional Diagrams Dimensional Diagrams DMK 33UX183 C-Mount with Tripod Adapter DMK 33UX183 Technical Reference Manual... -
Page 7: Dmk 33Ux183 C-Mount Without Tripod Adapter
Dimensional Diagrams DMK 33UX183 C-Mount without Tripod Adapter DMK 33UX183 Technical Reference Manual... -
Page 8: Dmk 33Ux183 Cs-Mount With Tripod Adapter
Dimensional Diagrams DMK 33UX183 CS-Mount with Tripod Adapter DMK 33UX183 Technical Reference Manual... -
Page 9: Dmk 33Ux183 Cs-Mount Without Tripod Adapter
Dimensional Diagrams DMK 33UX183 CS-Mount without Tripod Adapter DMK 33UX183 Technical Reference Manual... -
Page 10: I/O Connector
0.2A (ID) for open drain MOSFET! min. 3.5 mA driver strength required! G: Ground O: Output I: Input The part number of this Hirose connector is HR10A10R-12P(73). To create an I/O cable you need a Hirose connector HR10A-10P-12S(73). DMK 33UX183 Technical Reference Manual... -
Page 11: Trigger_In
The line's behavior can be controlled through the Strobe controls. The output signal can also be directly controlled through the General Purpose Output feature. DMK 33UX183 Technical Reference Manual... -
Page 12: Spectral Characteristics
Spectral Characteristics Spectral Characteristics Spectral Sensitivity - IMX183CLK-J DMK 33UX183 Technical Reference Manual... -
Page 13: Camera Controls
· USB3 Vision (cross platform, via 3rd party driver) · UVC/V4L2 (on Linux, via uvcvideo) · IC Imaging Control (on Windows, via Device Driver for The Imaging Source USB 33U, 37U and 38U Cameras) Sensor Readout Control 5.1.1 Pixel Format The pixel format defines the data type of the pixels transmitted to the computer. -
Page 14: 12-Bit Packed Monochrome
The Device Driver for The Imaging Source USB 33U, 37U and 38U Cameras offers this pixel format as the Y16 video format. Since the DMK 33UX183 camera offers both 12- bit packed and 16-bit monochrome pixel formats, the driver will use the 12-bit packed format when the Y16 video format is selected. -
Page 15: Readout Modes
USB3 Vision: GenICam 5.1.3 Readout Modes The DMK 33UX183 camera offers different sensor readout modes. By default, the camera outputs all pixels of the image sensor. In skipping modes, the image sensor regularly skips a number of rows and/or columns during readout. -
Page 16: Frame Rate
USB3 Vision: GenICam The following tables show the maximum frame rate for some combinations of pixel format and resolution. 8-Bit Monochrome Width Height Maximum Frame Rate 5472 3648 3840 2160 1920 1080 12-Bit Packed Monochrome DMK 33UX183 Technical Reference Manual... -
Page 17: Partial Scan Offset
Minimum Maximum 5216 OffsetX USB3 Vision: GenICam ROI Offset X Video4Linux2 VCDID_PartialScanOffset VCD Property \VCDElement_PartialScanOffsetX Parameter Partial Scan Offset Y Minimum Maximum 3644 OffsetY USB3 Vision: GenICam ROI Offset Y Video4Linux2 VCDID_PartialScanOffset VCD Property \VCDElement_PartialScanOffsetY DMK 33UX183 Technical Reference Manual... -
Page 18: Image Flipping
VCDID_PartialScanOffset VCD Property \VCDElement_PartialScanAutoCenter 5.1.6 Image Flipping The DMK 33UX183 camera allows for vertical flipping of the image data. The Flip Vertical parameter can be used to control this sensor feature. Parameter Flip Vertical True Image data is flipped vertically... -
Page 19: Gain
VCD Property 5.2.3 Black Level The Black Level parameter defines the lowest possibly intensity value of the image sensor. Parameter Black Level Minimum Maximum 1023 Default BlackLevel USB3 Vision: GenICam Brightness Video4Linux2 VCDID_Brightness\VCDElement_Value VCD Property DMK 33UX183 Technical Reference Manual... -
Page 20: Automatic Exposure And Gain Control
Camera Controls Automatic Exposure and Gain Control The DMK 33UX183 camera can automatically control gain and exposure time. These automatic functions are enabled by default. In order to optimize image parameters, a region of interest can be specified for automatic functions. Specifying a region of interest enables fine-grained control over the image area for which the image parameters are optimized. -
Page 21: Auto Reference Value
The Auto Exposure Lower Limit parameter determines the minimum possible value that can be set by the auto exposure algorithm. Parameter Auto Exposure Lower Limit Minimum 50 µs Maximum ExposureAutoLowerLimit USB3 Vision: GenICam Exposure Auto Lower Limit Video4Linux2 DMK 33UX183 Technical Reference Manual... -
Page 22: Auto Gain Limits
Minimum 0 dB Maximum 2704 dB GainAutoLowerLimit USB3 Vision: GenICam Gain Auto Lower Limit Video4Linux2 The Auto Gain Upper Limit parameter determines the maximum possible value that can be set by the auto gain algorithm. DMK 33UX183 Technical Reference Manual... -
Page 23: Trigger
TRIGGER_IN line. Parameter Trigger Polarity RisingEdge Accept rising edge as trigger signal True FallingEdge Accept falling edge as trigger signal False TriggerActivation USB3 Vision: GenICam Trigger Polarity Video4Linux2 VCDID_Trigger\VCDElement_Polarity VCD Property DMK 33UX183 Technical Reference Manual... -
Page 24: Trigger Operation
By default, this parameter is set to 1 so that exactly one image is acquired. The images are taken as rapidly as possible given current settings (i.e. as limited by the current exposure time and frame rate settings). DMK 33UX183 Technical Reference Manual... -
Page 25: Trigger Source
The 33U series camera series offers several options for dealing with bad trigger signals. By using the Debounce Time, Denoise Time and Mask Time parameters, the camera can be configured to ignore pulses on its TRIGGER_IN line under certain conditions. DMK 33UX183 Technical Reference Manual... -
Page 26: Trigger Delay
TriggerDebouncer USB3 Vision: GenICam Trigger Debounce Time (us) Video4Linux2 VCDID_Trigger\VCDElement_TriggerDebouncer VCD Property 5.5.3 Trigger Mask Time The Trigger Mask Time parameter specifies the time for which trigger pulses are ignored after accepting a trigger signal. DMK 33UX183 Technical Reference Manual... -
Page 27: Trigger Noise Suppression Time
5.6.1 General Purpose Input The General Purpose Input parameter allows the current status of the TRIGGER_IN pin. DMK 33UX183 Technical Reference Manual... -
Page 28: General Purpose Output
The strobe function controls the automatic generation of output pulses on the STROBE_OUT pin which is synchronized to the image sensor's exposure time. 5.7.1 Strobe Enable The Strobe Enable parameter enables the automatic generation of strobe pulses. DMK 33UX183 Technical Reference Manual... -
Page 29: Strobe Polarity
Parameter Strobe Operation Exposure Output pulse duration is equal to the current exposure time True FixedDuration Output pulse duration is specified by Strobe Duration False StrobeOperation USB3 Vision: GenICam Strobe Exposure Video4Linux2 VCDID_Strobe\VCDElement_StrobeMode VCD Property DMK 33UX183 Technical Reference Manual... -
Page 30: Strobe Duration
The 33U series cameras can perform gamma correction on the image data. If the pixel format of a color camera is set a YUV mode, gamma correction is applied to the Y channel. In bayer raw and RGB24 modes, all color channels are subject to the same gamma correction. DMK 33UX183 Technical Reference Manual... -
Page 31: Lookup Table
Enable lookup table operation False Disable lookup table operation LUTEnable USB3 Vision: GenICam The lookup table values can be programmed using the LUT Index and LUT Value features. Parameter LUT Index Minimum Maximum LUTIndex USB3 Vision: GenICam DMK 33UX183 Technical Reference Manual... -
Page 32: Region Of Interest For Auto Functions
Auto functions look at the whole image AutoFunctionsROIEnable USB3 Vision: GenICam Auto Functions ROI Enable Video4Linux2 VCDID_AutoRoi\VCDElement_Value VCD Property 5.9.2 Auto Functions ROI Preset The Auto Functions ROI Preset parameter lets the user select from a list of ROI presets. DMK 33UX183 Technical Reference Manual... -
Page 33: Auto Functions Roi Custom Rectangle
2576 AutoFunctionsROILeft USB3 Vision: GenICam Auto Functions ROI Left Video4Linux2 VCDID_AutoRoi VCD Property \VCDElement_AutoRoiLeftRelative Parameter Auto Functions ROI Top Minimum Maximum 2032 AutoFunctionsROITop USB3 Vision: GenICam Auto Functions ROI Top Video4Linux2 VCDID_AutoRoi VCD Property \VCDElement_AutoRoiTopRelative DMK 33UX183 Technical Reference Manual... -
Page 34: 5.10 User Sets
It cannot be overwritten UserSetSelector USB3 Vision: GenICam 5.10.2 Load User Set By using the Load User Set command, the user can restore the camera configuration from the memory slot selected by User Set Selector. DMK 33UX183 Technical Reference Manual... -
Page 35: Save User Set
Parameter Default User Set UserSet1 Load configuration from the first memory slot UserSet2 Load configuration from the second memory slot Default Load factory default configuration UserSetDefault USB3 Vision: GenICam DMK 33UX183 Technical Reference Manual... -
Page 36: Revision History
Revision History Revision History Date Version Description 2018/10/15 Initial release of this document DMK 33UX183 Technical Reference Manual... - Page 37 DMK 33UX183 Technical Reference Manual Al l product a nd compa ny na mes i n thi s document ma y be tra dema rks a nd tra dena mes of thei r res pecti ve owners a nd a re hereby a cknowl edged.
